ES-231 - Echo Shred N Vac Blower (SN: 06001001 - 06999999) Engine, Short Block, Cylinder Cover Parts Diagram

Shred N Vac Blower

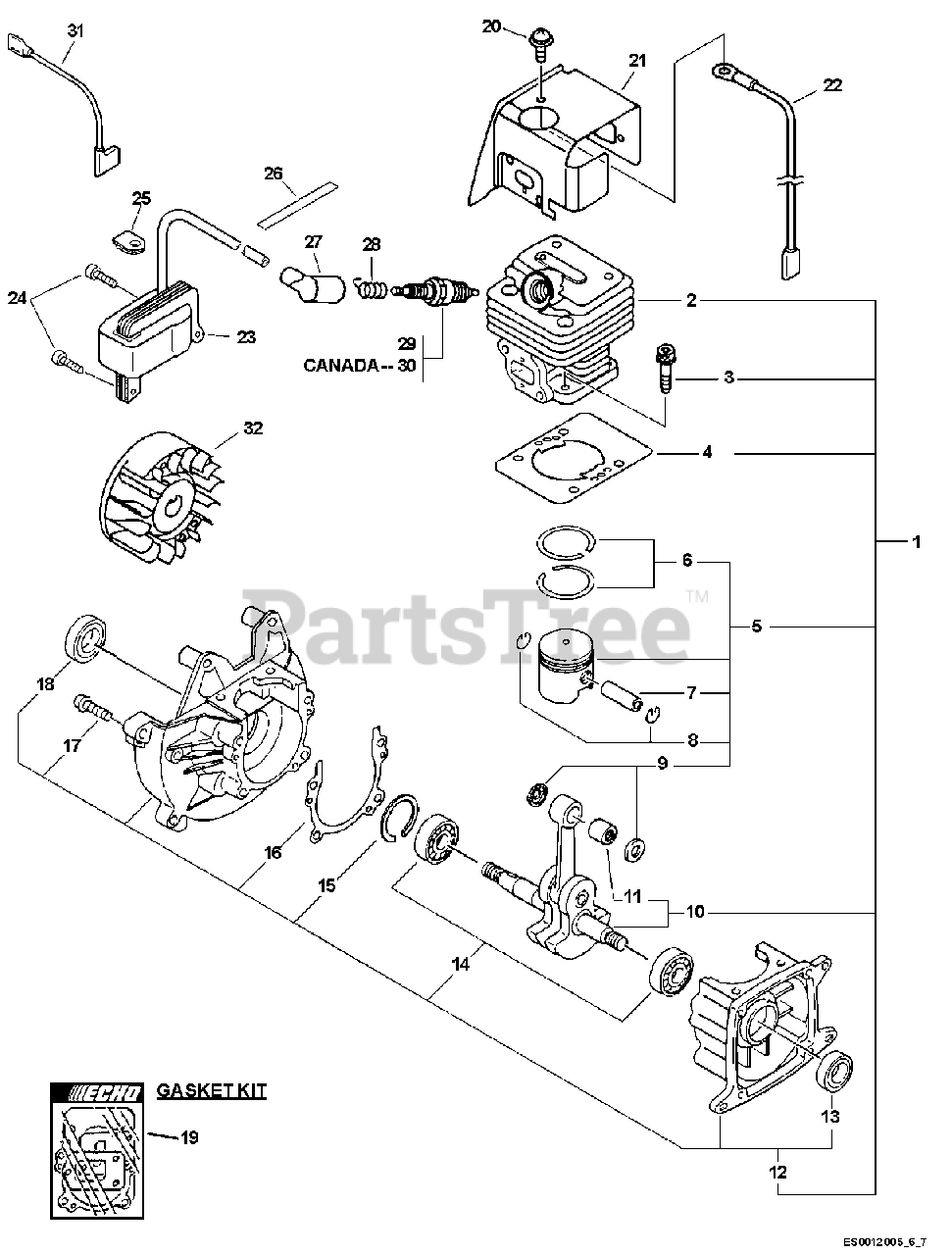

Engine, Short Block, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1062

SHORT BLOCK -- SB1062

Note: Includes ITEM 2-18; OPTIONAL ENGINE REPOWER

$217.99

$

Usually ships in 2-4 days

0

2

Echo A130000341

CYLINDER

$199.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

4

Echo V100000070

GASKET, CYLINDER

$7.99

$

In Stock, only 2 left!

0

5

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: Includes ITEMS 6-9

$93.99

$

In Stock, only 1 left!

0

6

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 15

0

7

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

10

Echo A011000042

CRANKSHAFT ASSY

Note: Includes ITEM 11

$212.99

$

Usually ships in 2-4 days

0

11

Echo V553000010

BEARING, NEEDLE - 8

$11.99

$

In Stock, only 2 left!

0

12

Echo P021000940

CRANKCASE KIT
(Superseded to P021000941)

Note: Includes ITEMS 13-18

$251.99

$

Usually ships in 2-4 days

0

13

Echo 10021305530

SEAL, OIL

$7.99

$

In Stock, Qty 16

0

14

Echo 90080036001

BEARING, BALL - 6001C3

$11.99

$

In Stock, Qty 20+

0

15

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

16

Echo 10024255930

GASKET, CRANKCASE

$4.49

$

In Stock, only 2 left!

0

17

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

18

Echo 10021228230

SEAL, OIL - 12

$4.99

$

In Stock, only 2 left!

0

19

Echo P021003891

GASKET KIT

$49.99

$

Usually ships in 2-4 days

0

20

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

21

Echo A160000120

SHIELD, CYLINDER

$24.99

$

Usually ships in 2-4 days

0

22

Echo V485000100

LEAD - GROUND

$6.99

$

Usually ships in 2-4 days

0

23

Echo A411000110

COIL, IGNITION
(Superseded to P021003910)

$76.99

$

In Stock, only 2 left!

0

24

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

25

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 17

0

26

Echo X532000671

LABEL - SPARK PLUG -- BPM-8Y

$4.49

$

In Stock, Qty 20+

0

27

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

28

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 15

0

29

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.99

$

In Stock, Qty 20+

0

30

Echo A425000000

SPARK PLUG -- BPMR-8Y

Note: CANADA MODELS: 07001001-07999999

$3.99

$

In Stock, Qty 20+

0

31

Echo V485000260

LEAD - IGNITION
(Superseded to Discontinued)

$

$

Not available

32

Echo A409000130

FLYWHEEL
(Superseded to A409001190)

$115.99

$

In Stock, only 2 left!

0
