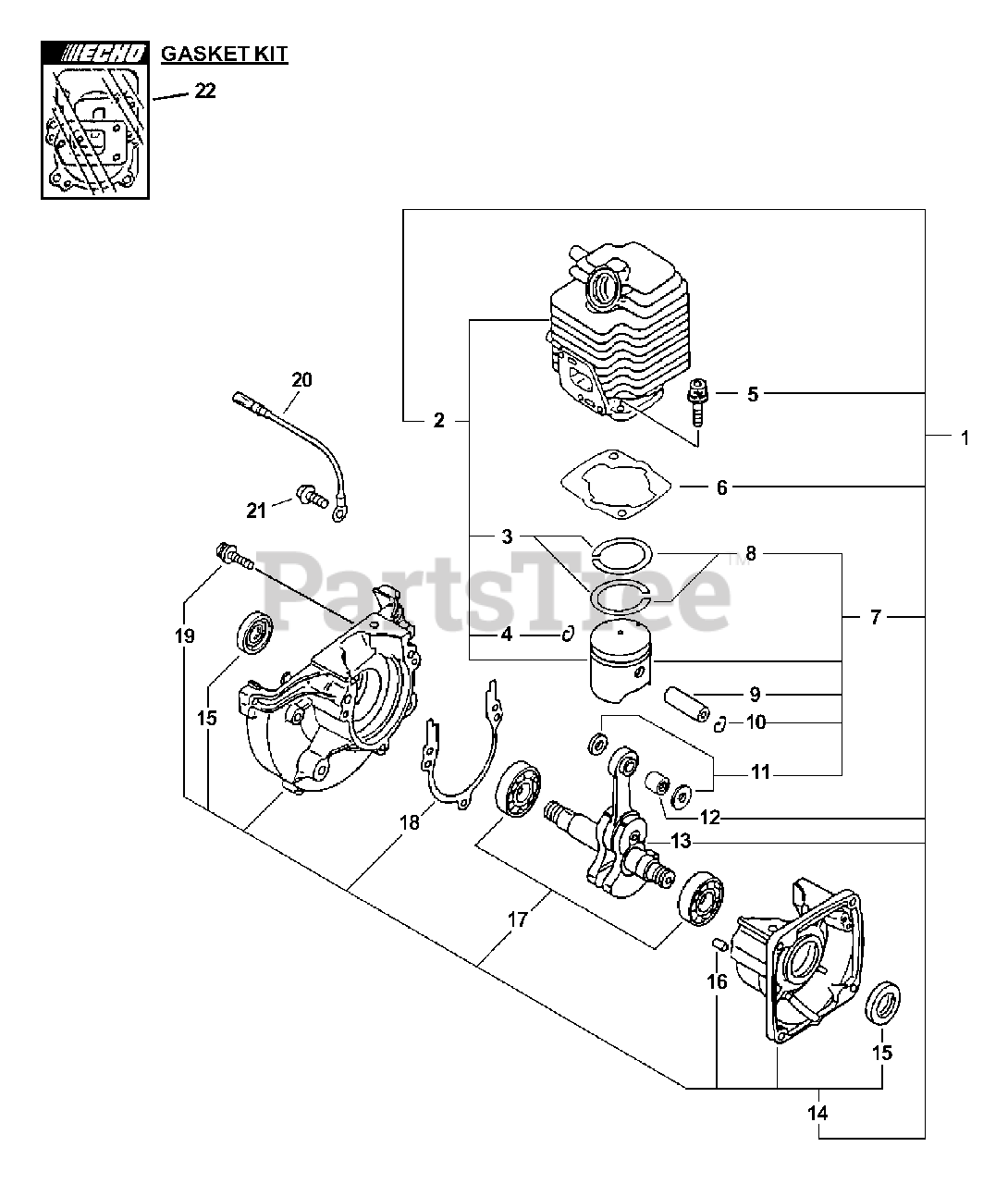

ES-2400 - Echo Shred N Vac Blower (Type 1) Engine, Short Block, Cylinder Parts Diagram

Shred N Vac Blower (Type 1)

Engine, Short Block, Cylinder Parts Diagram

  • Title

1

Echo SB1027

SHORT BLOCK ES-2400
(Superseded to Discontinued)

Note: Includes ITEM 2-19; OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo 10100308960

CYLINDER/PISTON KIT
(Superseded to P021035810)

Note: Includes ITEMS 3-4

$

$

Not available

3

Echo 10001109560

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

4

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 20+

0

5

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

6

Echo 101010-44332

GASKET, CYLINDER

$4.99

$

Usually ships in 2-4 days

0

7

Echo 10000009563

PISTON KIT
(Superseded to 10000052130)

Note: INCLUDES ITEMS 8-11

$84.99

$

In Stock, only 1 left!

0

8

Echo 10001109560

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

9

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

10

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

11

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

12

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

13

CRANKSHAFT ASSY

$

$

Not available

14

CRANKCASE KIT

Note: Includes ITEMS 15-19

$

$

Not available

15

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, only 4 left!

0

16

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

17

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

18

GASKET, CRANKCASE

$

$

Not available

19

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

20

Echo 16201020660

LEAD - GROUND

$11.99

$

In Stock, only 1 left!

0

21

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

22

Echo 88900020560

GASKET KIT

$27.99

$

In Stock, only 2 left!

0
