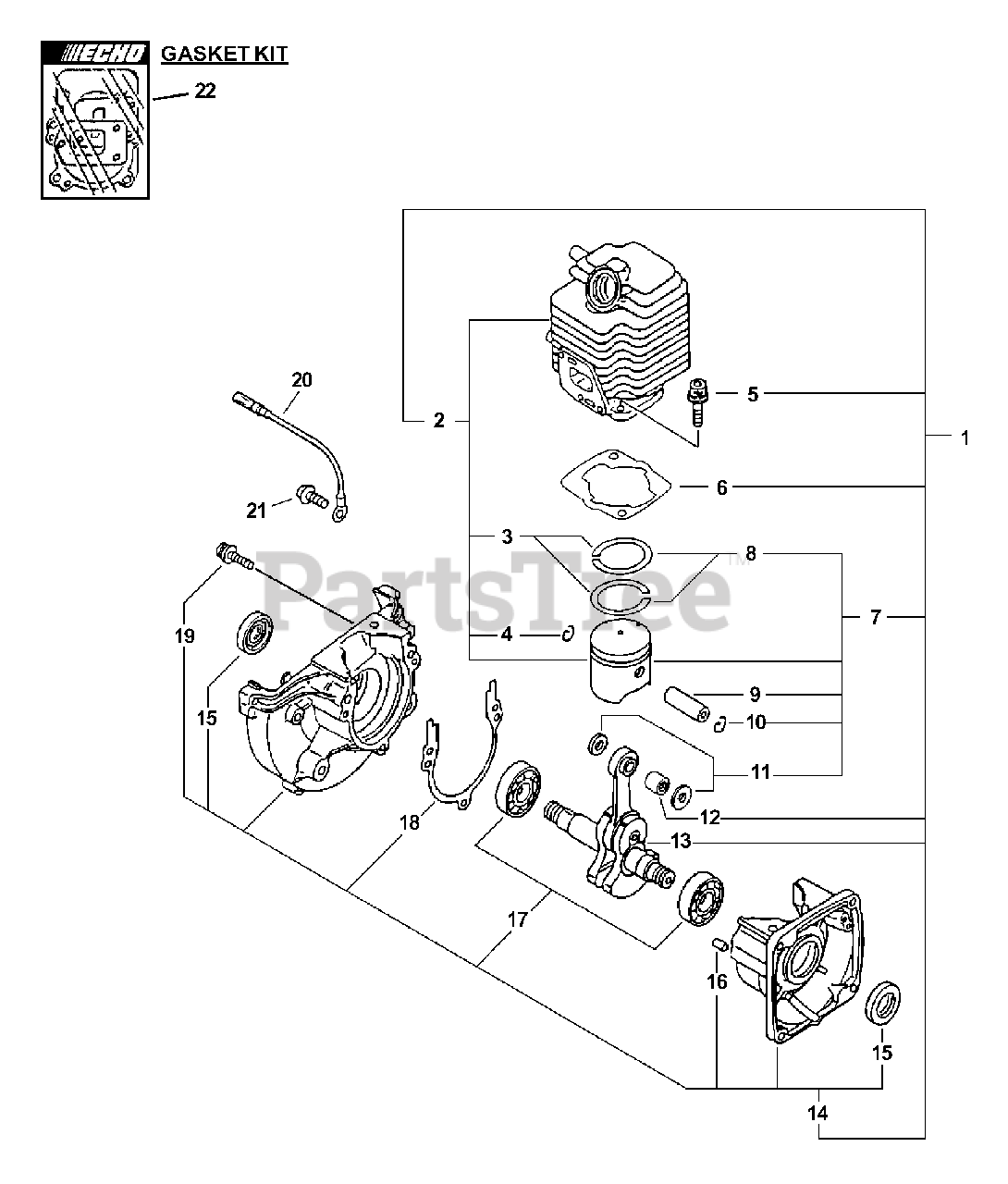

  • Title

1

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

Note: Includes ITEM 2-19; OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo 10100308960

CYLINDER KIT
(Superseded to P021035810)

Note: Includes ITEMS 3-4

$

$

Not available

3

Echo 10001109560

RING, PISTON

$8.99

$

In Stock, only 2 left!

0

4

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

5

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 19

0

6

Echo 10101044332

GASKET, CYLINDER

$4.49

$

In Stock, Qty 13

0

7

Echo 10000009563

PISTON KIT
(Superseded to 10000052130)

Note: INCLUDES ITEMS 8-11

$78.99

$

In Stock, only 1 left!

0

8

Echo 10001109560

RING, PISTON

$8.99

$

In Stock, only 2 left!

0

9

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

10

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

11

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, Qty 8

0

12

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

13

------------------

CRANKSHAFT ASSY

$

$

Not available

14

------------------

CRANKCASE KIT

Note: Includes ITEMS 15-19

$

$

Not available

15

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, Qty 11

0

16

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

17

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 17

0

18

------------------

GASKET, CRANKCASE

$

$

Not available

19

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

20

Echo 16201020660

LEAD - IGNITION

$10.99

$

In Stock, only 1 left!

0

21

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

22

Echo 88900020560

GASKET KIT

$25.99

$

Usually ships in 2-4 days

0
