ES-250 - Echo Shred N Vac Blower (SN: P33813001001 - P33813999999) Fuel System S/N: P33813001001 - P33813002000 Parts Diagram

Shred N Vac Blower

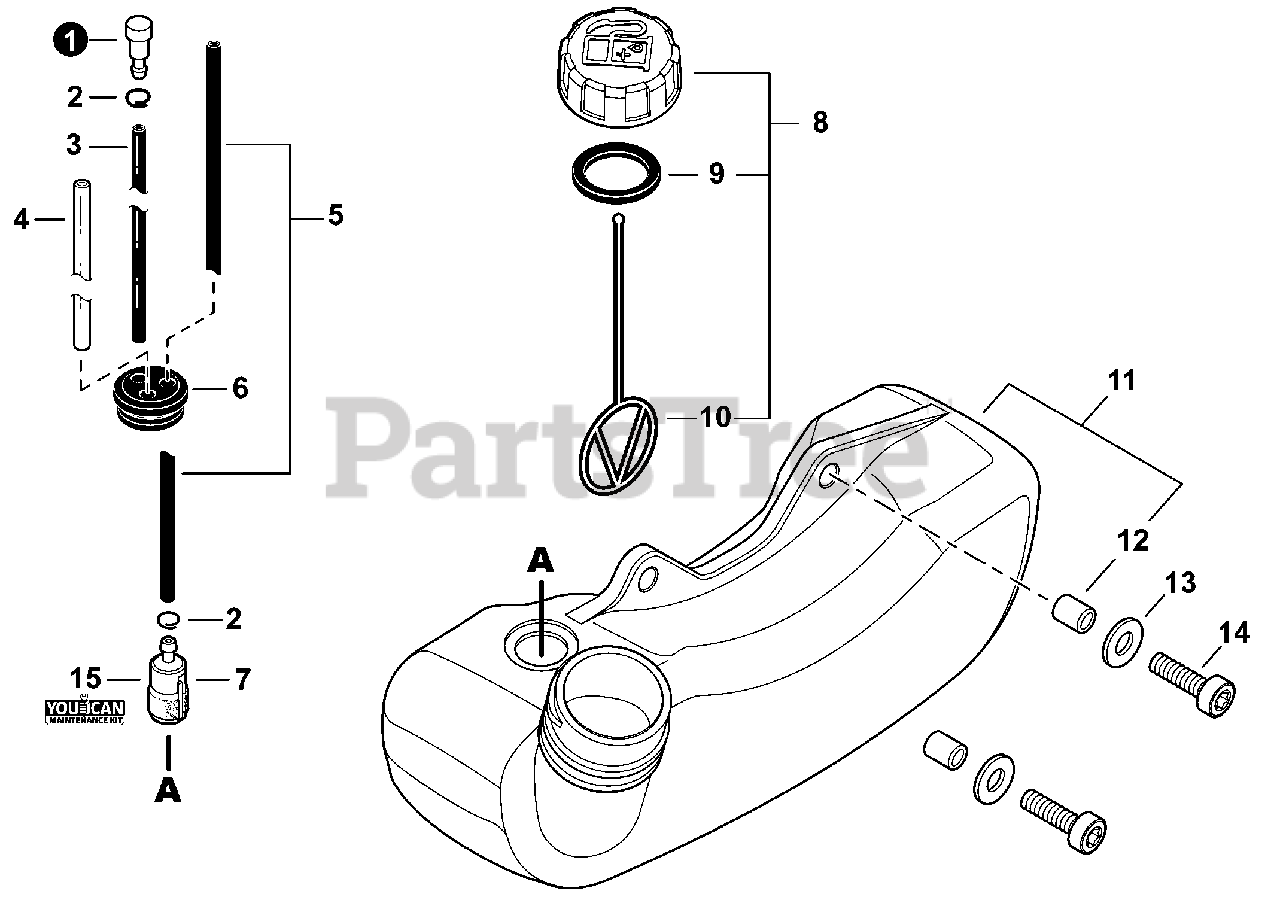

Fuel System S/N: P33813001001 - P33813002000 Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

2

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

3

Echo 13201204631

PIPE, FUEL 3×5×80 BLACK

$

$

Not available

4

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

$2.99

$

In Stock, Qty 9

0

5

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

$5.99

$

In Stock, only 2 left!

0

6

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

7

Echo 13120507321

FILTER, FUEL
(Superseded to A369000480)

Note: Included In TUNE-UP KIT

$6.49

$

In Stock, Qty 20+

0

8

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes Items 9-10

$7.49

$

In Stock, Qty 9

0

9

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

10

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

11

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

Note: Includes Items 12

$29.99

$

In Stock, only 2 left!

0

12

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

13

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

15

Echo 90152Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$21.99

$

In Stock, Qty 20+

0
