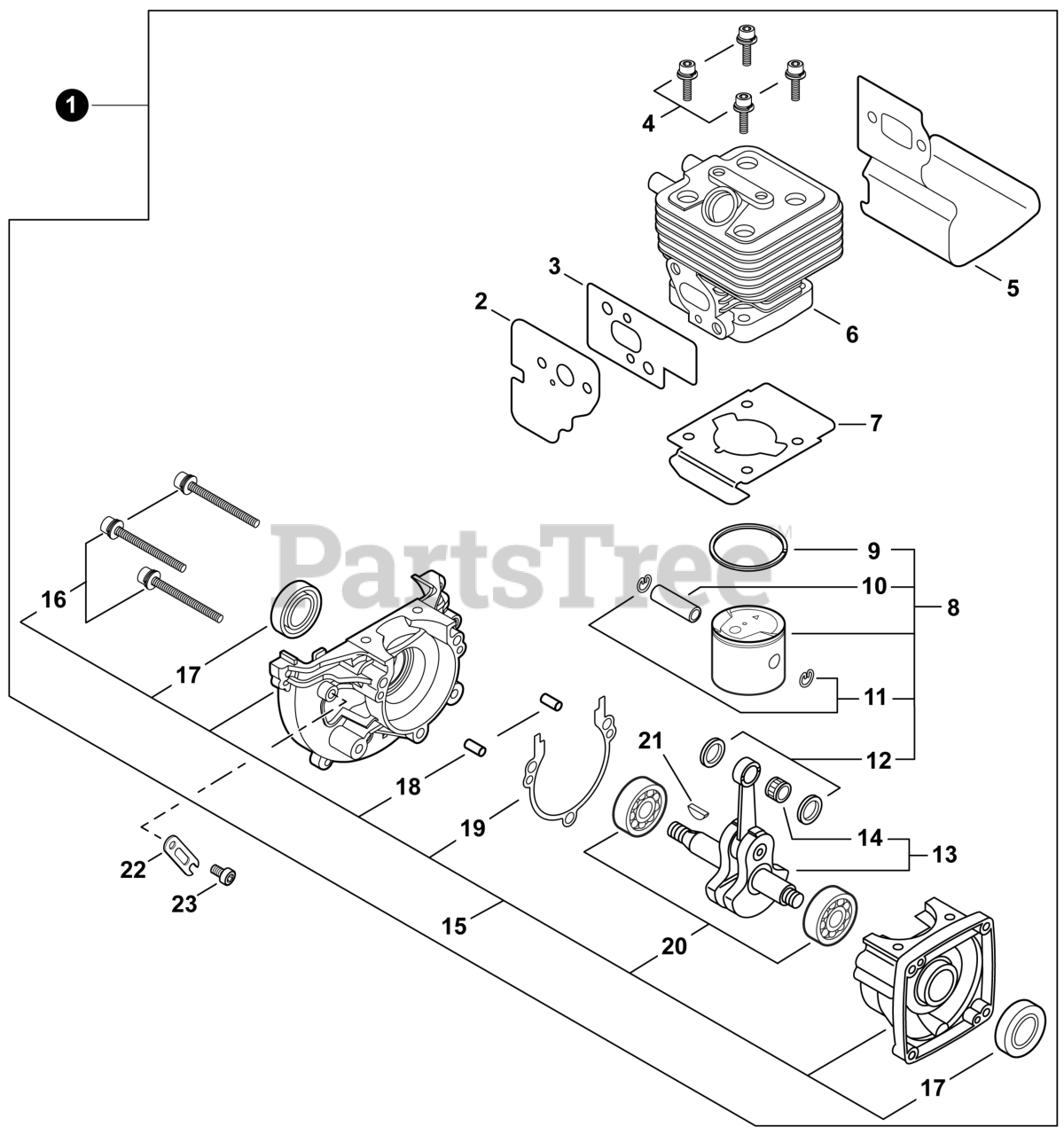

ES-250 - Echo Shred N Vac Blower (SN: P60512001001 - P60512999999) Engine Parts Diagram

Shred N Vac Blower

Engine Parts Diagram

  • Title

1

Echo SB1104

SHORT BLOCK

Note: Includes Items 2-21

$159.99

$

Usually ships in 2-4 days

0

2

Echo V103000400

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

3

Echo V103000540

GASKET, INTAKE

$1.49

$

In Stock, only 2 left!

0

4

Echo 90016205025

BOLT 5x25

$0.99

$

In Stock, Qty 20+

0

5

Echo V104000960

HEAT SHIELD, EXHAUST

$5.99

$

In Stock, only 2 left!

0

6

Echo A130001020

CYLINDER

$119.99

$

Usually ships in 2-4 days

0

7

Echo V100000190

GASKET, CYLINDER

$2.99

$

In Stock, Qty 20+

0

8

Echo P021017410

PISTON KIT

Note: Includes Items 9-12

$71.99

$

In Stock, only 2 left!

0

9

Echo A101000140

RING, PISTON

$7.99

$

In Stock, only 2 left!

0

10

Echo V606000000

PIN, PISTON

$7.99

$

In Stock, only 2 left!

0

11

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

12

Echo 10001411520

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

13

Echo A011000590

CRANKSHAFT ASSY

Note: Includes Item 14

$137.99

$

Usually ships in 2-4 days

0

14

Echo V553000010

BEARING, NEEDLE 8

$11.99

$

In Stock, only 2 left!

0

15

Echo P021008231

CRANKCASE KIT

Note: Includes Items 16-20

$137.99

$

Usually ships in 2-4 days

0

16

Echo 90016205028

BOLT 5x28

$2.49

$

In Stock, Qty 11

0

17

Echo 10021242031

SEAL, OIL 12

$7.99

$

In Stock, Qty 5

0

18

Echo 90033040080

PIN, LOCATING 4x8

$1.49

$

In Stock, Qty 13

0

19

Echo 10024242030

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 10

0

20

Echo 9403536201

BEARING, BALL 6201

$9.99

$

In Stock, only 3 left!

0

21

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 7

0

22

Echo V150002400

PLATE, EYE

$0.99

$

Usually ships in 2-4 days

0

23

Echo V805000120

BOLT, TORX 5x8

$0.99

$

In Stock, Qty 7

0
