ES-255 - Echo Shred N Vac Blower (SN: P07213001001 - P07213999999) Fuel System S/N: P07213001001 - P07213003956 Parts Diagram

Shred N Vac Blower

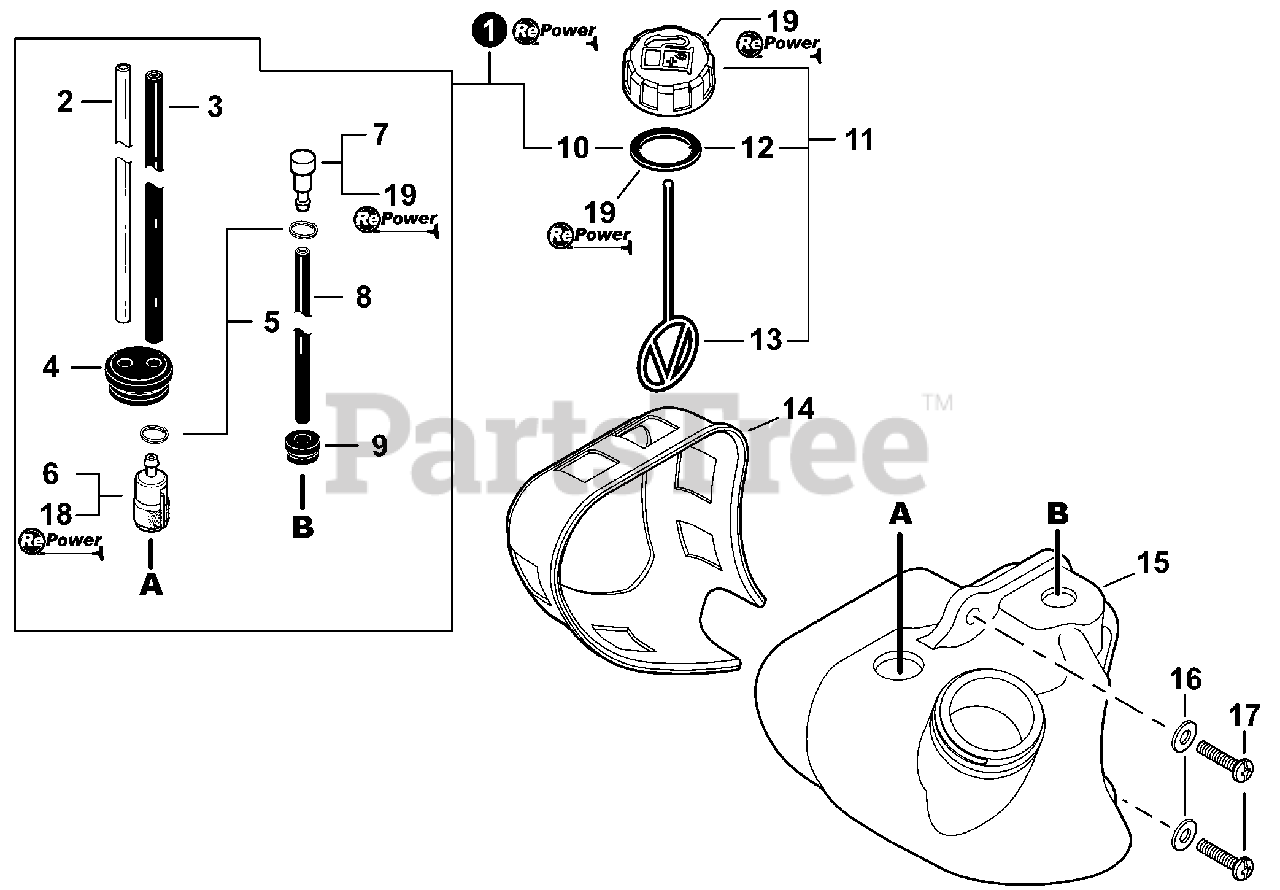

Fuel System S/N: P07213001001 - P07213003956 Parts Diagram

  • Title

1

Echo 90115

FUEL SYSTEM KIT
(Superseded to 90130)

Note: Includes Items 2-10

$29.99

$

In Stock, Qty 6

0

2

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 7

0

3

Echo V471001860

PIPE, FUEL 3×5×175 BLACK

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 9

0

4

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

5

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 15

0

6

Echo 131205-07320

FILTER, FUEL

Note: Included In TUNE-UP KIT

$6.49

$

In Stock, Qty 20+

0

7

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

8

Echo V471001220

PIPE, FUEL VENT 3×5×50

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 9

0

9

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

10

Echo 131016-55830

GASKET, FUEL CAP

Note: Included In CAP/VENT KIT

$

$

Not available

11

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 12-13

$6.99

$

In Stock, Qty 20+

0

12

Echo 131016-55830

GASKET, FUEL CAP

Note: Included In CAP/VENT KIT

$

$

Not available

13

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 14

0

14

Echo V420001430

GUARD, FUEL TANK

$1.99

$

Usually ships in 2-4 days

0

15

Echo A350000760

TANK, FUEL
(Superseded to A350002550)

$35.99

$

In Stock, only 1 left!

0

16

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

18

Echo 90154

TUNE-UP KIT - REPOWER
(Superseded to 90154Y)

Note: See Maintenance Page

$25.99

$

In Stock, Qty 16

0

19

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

Note: See Maintenance Page

$

$

Not available
