ES-32721 - Tecumseh Starter Electric Starter Parts Diagram

Starter

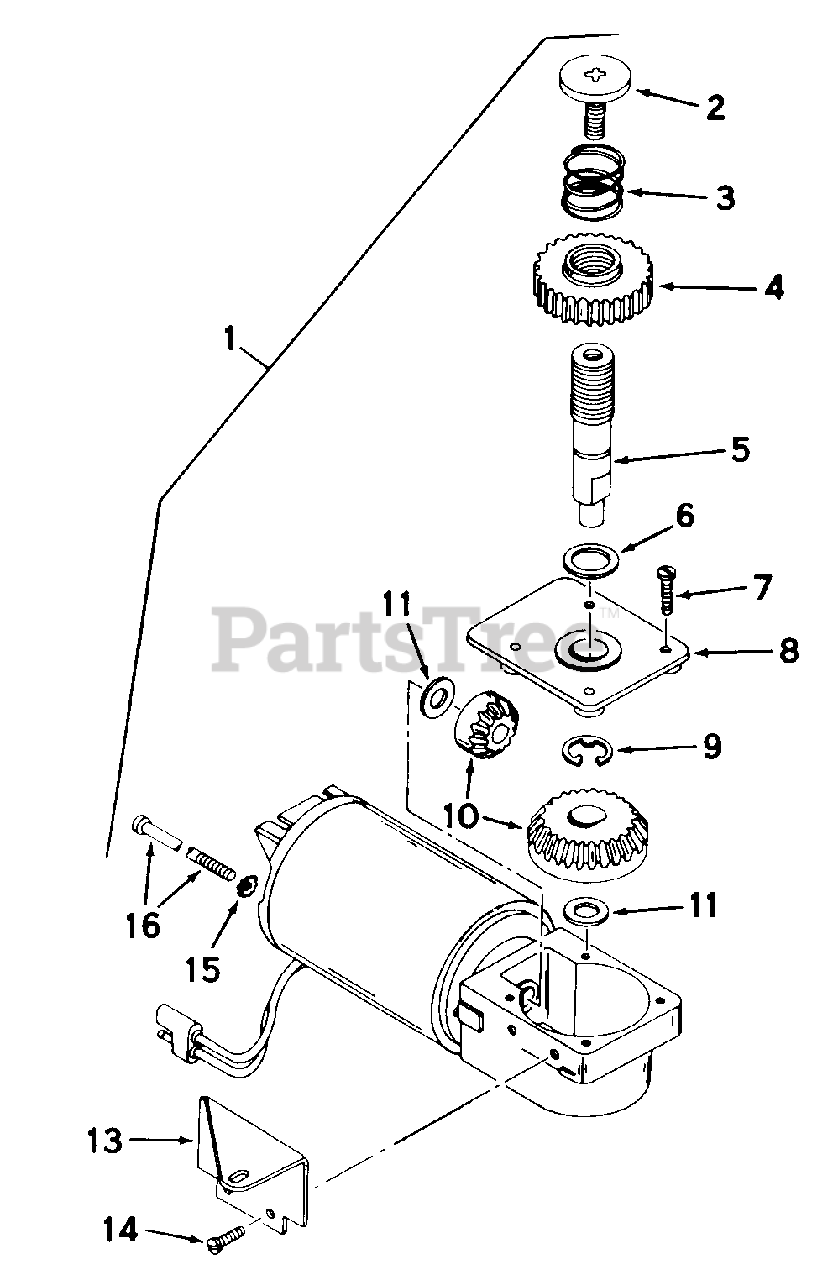

Electric Starter Parts Diagram

  • Title

1

Tecumseh 32721

"Motor, Electric starter

$

$

Currently unavailable

2

Tecumseh 32747

Screw, Drive (Left hand thread)

$

$

Currently unavailable

3

Tecumseh 32737

Spring, Return

$

$

Currently unavailable

4

Tecumseh 32736

Gear, Starting

$

$

Currently unavailable

5

Tecumseh 32735

Shaft, Center

$

$

Currently unavailable

6

Tecumseh 32739

Washer, Thrust

$

$

Currently unavailable

7

Tecumseh 29728

Screw, 10-32 x 5/8 Low Hex washer hd.

$0.99

$

Usually ships in 3-12 days

0

8

Tecumseh 32746

Cover Assy

$

$

Currently unavailable

9

Tecumseh 32738

Ring, Retaining
(Superseded to 31749)

$1.99

$

Usually ships in 3-12 days

0

10

Tecumseh 32741

Gear Set

$

$

Currently unavailable

11

Tecumseh 32740

Washer, Shim

$

$

Currently unavailable

13

Tecumseh 32742

Bracket, Front mounting

$

$

Currently unavailable

14

Tecumseh 32025

Screw
(Superseded to 650802)

$1.99

$

In Stock, only 2 left!

0

15

Tecumseh 28225

Lockwasher, No. 8 E. T.

$

$

Currently unavailable

16

Tecumseh 32744

Screw, 8-32 x 3-3/8 rd. hd

$

$

Currently unavailable
