ES-32817 - Tecumseh Starter Electric Starter Parts Diagram

Starter

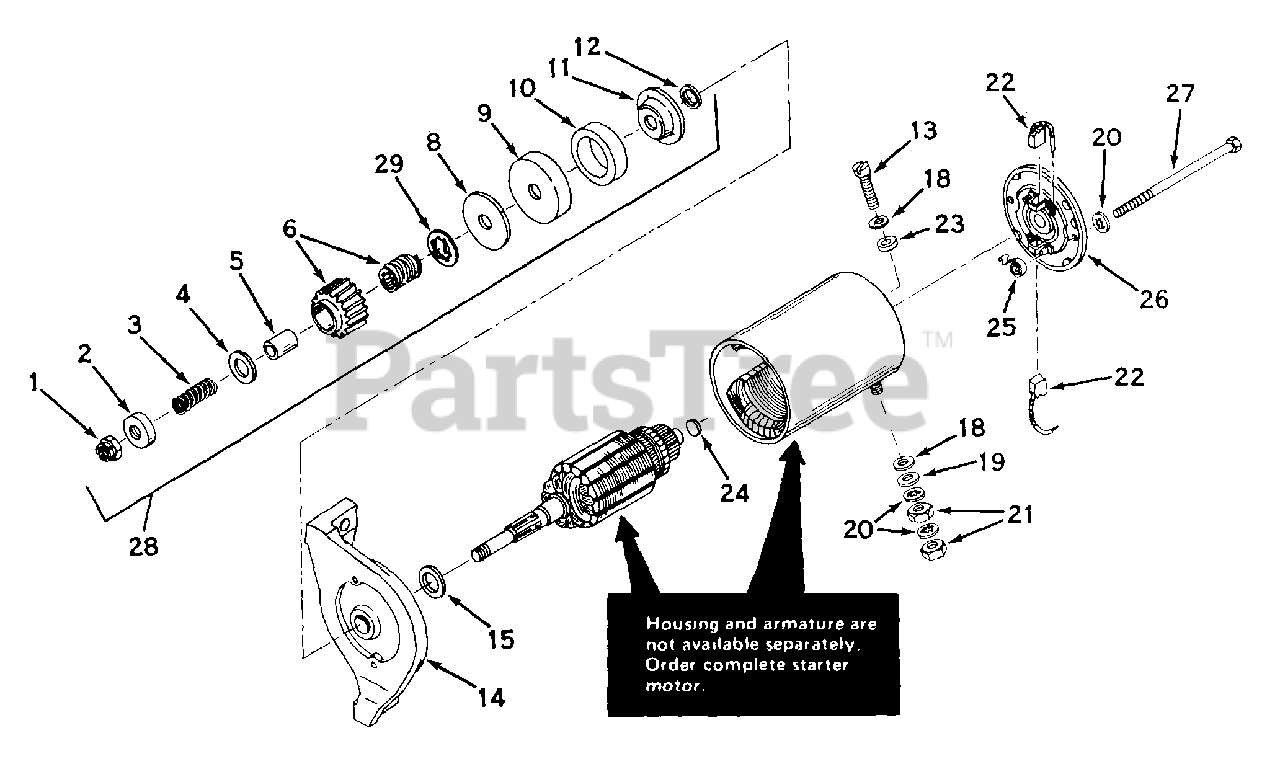

Electric Starter Parts Diagram

  • Title

1

Tecumseh 32483

"Nut, Hex

$

$

Currently unavailable

2

Tecumseh 32820

Stop, Pinion

$

$

Currently unavailable

3

Tecumseh 32821

Spring, Anti-drift

$

$

Currently unavailable

4

Tecumseh 32822

Washer, Pinion

$

$

Currently unavailable

5

Tecumseh 32487

Sleeve, Anti-drift

$

$

Currently unavailable

6

Tecumseh 32823A

Gear & Screw Shaft Assembly

$

$

Currently unavailable

8

Tecumseh 32825

Washer, Thrust

$

$

Currently unavailable

9

Tecumseh 32826

Cup, Cushion

$

$

Currently unavailable

10

Tecumseh 32827

Cushion, Rubber

$

$

Currently unavailable

11

Tecumseh 32828

Washer, Thrust

$

$

Currently unavailable

12

Tecumseh 32829

Bushing, Thrust

$

$

Currently unavailable

13

Tecumseh 32499

Bolt, Terminal

$

$

Currently unavailable

14

Tecumseh 32830

Cap Assy., Drive end 5/8" Bore

$

$

Currently unavailable

15

Tecumseh 32831

Washer, Spacing (.039 thick)

$

$

Currently unavailable

15

Tecumseh 32832

Washer, Spacing (.008 thick)

$

$

Currently unavailable

18

Tecumseh 32500

Washer, Insulating

$

$

Currently unavailable

19

Tecumseh 650168

Washer, Plain

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 650131

Washer, Lock
(Superseded to 27513)

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 650723

Nut, Hex
(Superseded to 650864)

$1.99

$

In Stock, only 2 left!

0

22

Tecumseh 32838

Brush & Spring Kit

$

$

Not available

23

Tecumseh 32501

Bushing, Insulating

$

$

Currently unavailable

24

Tecumseh 32509

Washer, Spacing

$

$

Currently unavailable

25

Tecumseh 32837

Spring, Brush

$12.99

$

Usually ships in 3-12 days

0

26

Tecumseh 32835

End Cap Assy., Commutator

$23.99

$

Usually ships in 3-12 days

0

27

Tecumseh 32836

Bolt, Thru

$

$

Currently unavailable

28

Tecumseh 32819

Drive Assy., Complete

$

$

Currently unavailable

29

Tecumseh 32896

Stopper, Screw

$

$

Currently unavailable
