ES 350 - Poulan Chainsaw, Electric Electric Saw Assembly Parts Diagram

Chainsaw, Electric

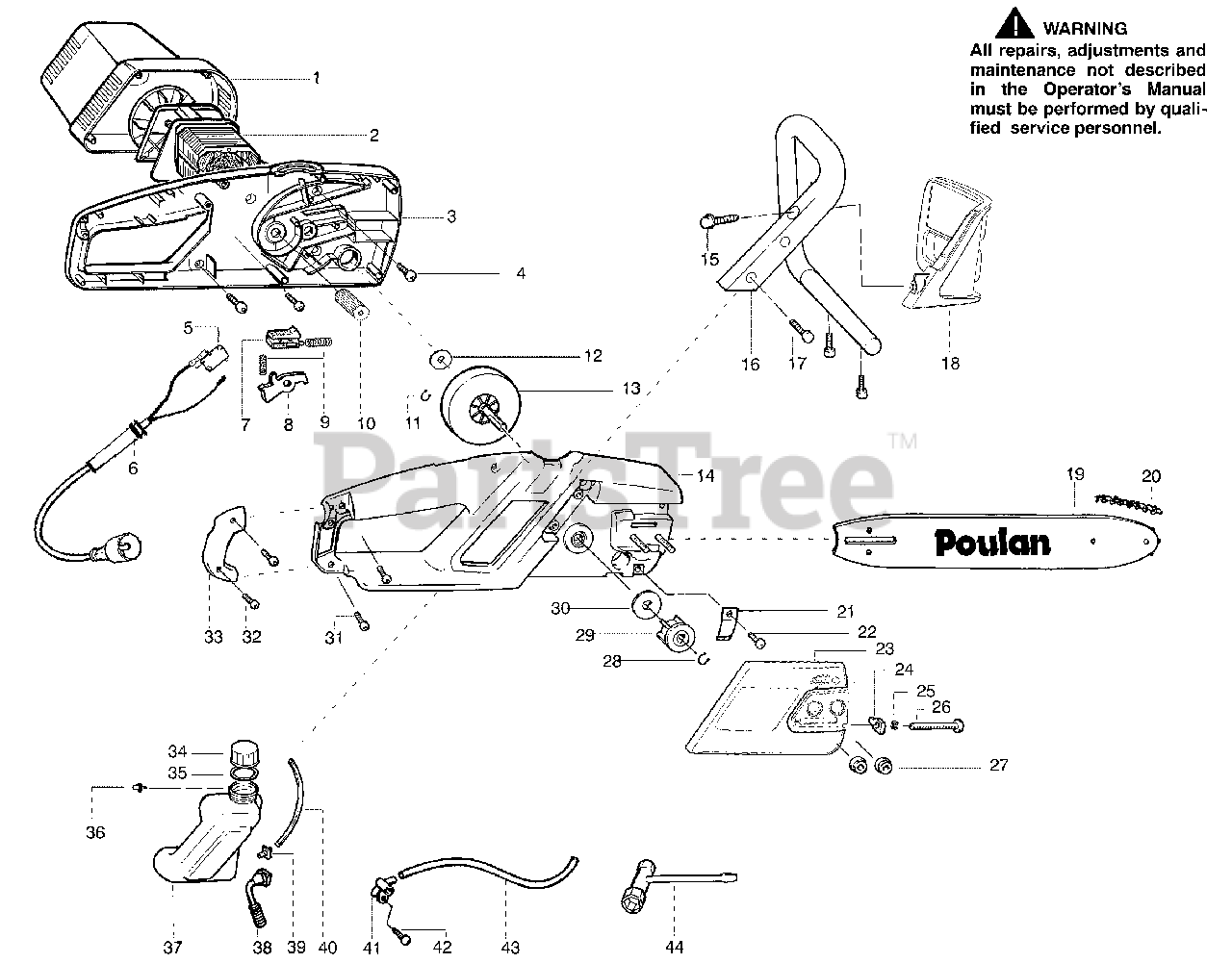

Electric Saw Assembly Parts Diagram

  • Title

1

Poulan 530403211

Motor Cover

$9.99

$

Usually ships in 3-10 days

0

2

Poulan 530404233

Motor Outline

$

$

Not available

3

Poulan 530404200

Assy-Housing

$15.99

$

Usually ships in 3-10 days

0

4

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

5

Poulan 530402879

Switch-Momentary

$6.49

$

In Stock, only 4 left!

0

6

Poulan 530404254

Assy-Harness

Note: Incl. # 5

$

$

Not available

7

Poulan 530053179

Lockout Button

$

$

Not available

8

Poulan 530053181

Trigger

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530042091

Spring-Trigger

$

$

Not available

10

Poulan 530053067

Pinion

$

$

Not available

11

Poulan 530042090

Ring-Retainer

$4.99

$

In Stock, Qty 18

0

12

Poulan 530016278

Washer-Thrust

$4.99

$

In Stock, Qty 12

0

13

Poulan 530053048

Gear Drive

$31.99

$

In Stock, only 1 left!

0

14

Poulan 530053061

Housing Cover

$

$

Not available

15

Poulan 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

16

Poulan 530403237

Front Handle

$

$

Not available

17

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

18

Poulan 530403313

Handguard

$

$

Not available

19

Poulan 952044370

Bar-16"

$

$

Not available

20

Poulan 952051211

Chain-16"
(Superseded to 581562201)

$22.99

$

In Stock, Qty 15

0

21

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, Qty 20+

0

22

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 9

0

23

Poulan 530053153

Bar Clamp

$

$

Not available

24

Poulan 530053068

Pin-Bar Adjust

$3.99

$

In Stock, only 4 left!

0

25

Poulan 530024419

Retainer-Bar Ajdust

$6.49

$

In Stock, Qty 10

0

26

Poulan 530016265

Screw-Bar Adjust

$8.99

$

In Stock, only 3 left!

0

27

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 20+

0

28

Poulan 530042090

Ring-Retainer

$4.99

$

In Stock, Qty 18

0

29

Poulan 530053053

Sprocket (3/8 Pitch)

$

$

Not available

30

Poulan 530016262

Washer-Sprocket

$6.49

$

In Stock, Qty 9

0

31

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

32

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

33

Poulan 530403217

Cover Access

$

$

Not available

34

Poulan 530053072

Oil Cap
(Superseded to 530150552)

$6.49

$

In Stock, only 1 left!

0

35

Poulan 530019136

O-Ring (Oil Cap)

$

$

Not available

36

Poulan 530026119

Check Valve (Duckbill)

$4.49

$

In Stock, Qty 19

0

37

Poulan 530053248

Oil Tank Ass'y.

Note: Incl.34,35,36, 38,39,40

$

$

Not available

38

Poulan 530047663

Oil Pickup Ass'y.

$4.99

$

In Stock, Qty 9

0

39

Poulan 530053270

Oil Pickup Fitting

$

$

Not available

40

Poulan 530403393

Inlet Line

$

$

Not available

41

Poulan 530403311

Oil Pump Ass'y.

$

$

Not available

42

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

43

Poulan 530403394

Outlet Line

$3.99

$

In Stock, only 1 left!

0

44

Poulan 530031163

Bar Wrench

$9.99

$

In Stock, Qty 17

0

Poulan 545146939

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530029543

Scabbard

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

Poulan 530053853

Decal-Warning

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
