ES 726 - Shindaiwa Power Sprayer, Backpack (SN: 9029001 - 9039900) Crankcase / Engine Cover / Fan Cover Parts Diagram

Power Sprayer, Backpack

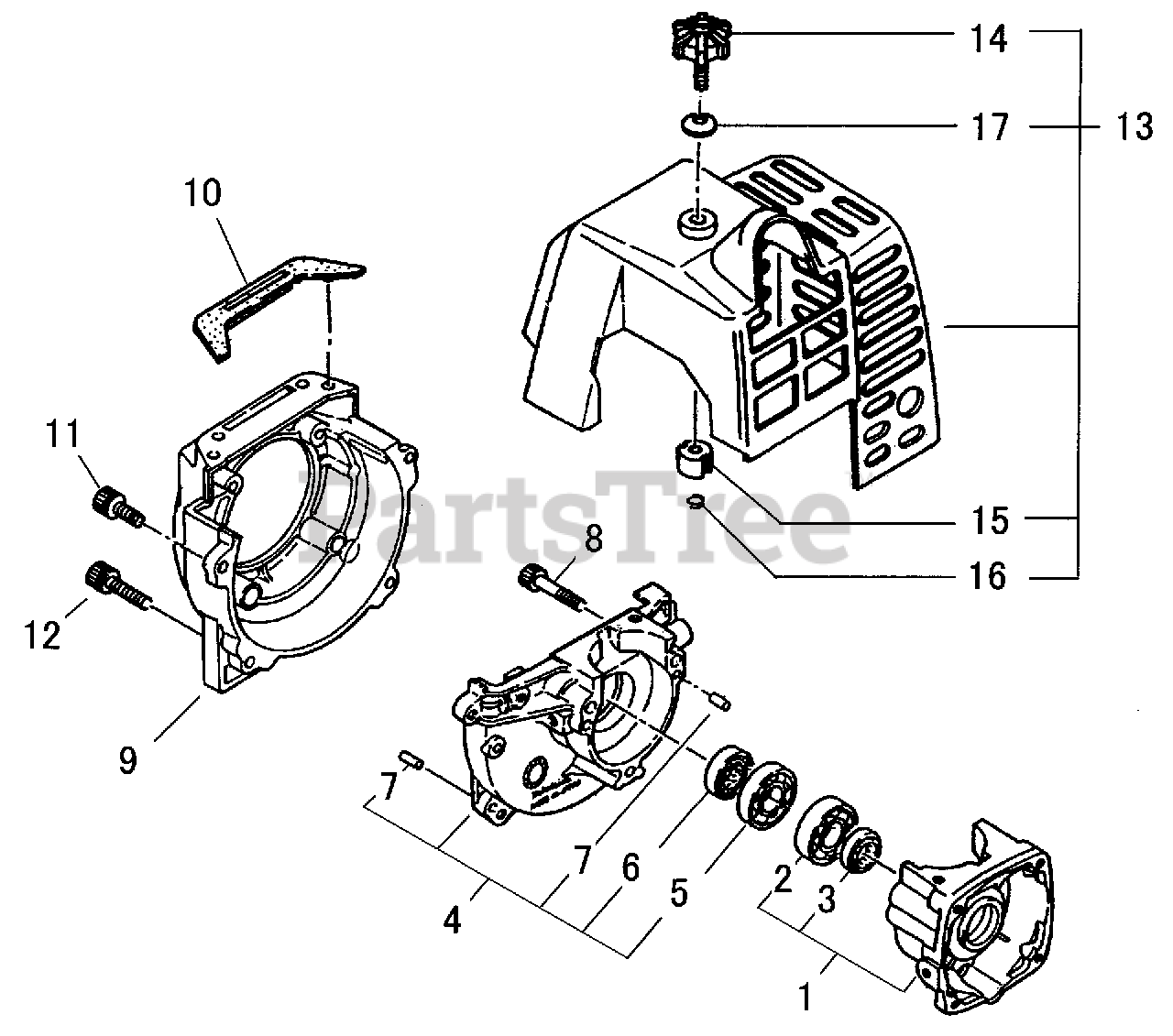

Crankcase / Engine Cover / Fan Cover Parts Diagram

  • Title

1

Echo P021018090

CRANKCASE ASSY, S

Note: 20035-21101

$83.99

$

In Stock, only 1 left!

0

2

Echo V592000310

BEARING, BALL 6001 C3

Note: 12900-60010

$6.99

$

In Stock, Qty 10

0

3

Echo V505000140

SEAL, OIL 12

Note: 22150-21250

$3.49

$

In Stock, only 3 left!

0

4

Echo P021018110

CRANKCASE ASSY, M

Note: 20035-21203

$43.99

$

Usually ships in 2-4 days

0

5

Echo V592000310

BEARING, BALL 6001 C3

Note: 12900-60010

$6.99

$

In Stock, Qty 10

0

6

Echo V505000080

SEAL, OIL 12

Note: 20000-21211

$3.49

$

In Stock, Qty 5

0

7

Echo V622000040

PIN, LOCATING Ø4×8
(Superseded to 90033040080)

Note: 12492-40080

$1.49

$

In Stock, Qty 14

0

8

Echo 90010505025

BOLT 5×25

Note: 01020-05250

$1.49

$

In Stock, Qty 20+

0

9

Echo A172001040

COVER, FAN

Note: 38500-31110

$42.99

$

Usually ships in 2-4 days

0

10

Echo V420002350

CUSHION
(Superseded to Discontinued)

Note: 20110-31130

$

$

Not available

11

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

Note: 11022-05160

$1.49

$

In Stock, Qty 20+

0

12

Echo V203000600

BOLT M5×35
(Superseded to V203000601)

Note: 11022-05350

$1.99

$

In Stock, Qty 16

0

13

Echo A160002240

COVER KIT, ENGINE

Note: 38500-32010

$46.99

$

Usually ships in 2-4 days

0

14

Echo V299000420

THUMBSCREW

Note: 20018-31251

$4.49

$

In Stock, only 2 left!

0

15

Echo V353000430

INSULATOR 5 MM

Note: 20018-31260

$1.99

$

In Stock, only 3 left!

0

16

Echo V490000680

CLIP

Note: 20018-31270

$1.49

$

In Stock, Qty 5

0

17

Echo V347000030

WASHER, CONE M6

Note: 20024-81790

$1.49

$

In Stock, Qty 20+

0
