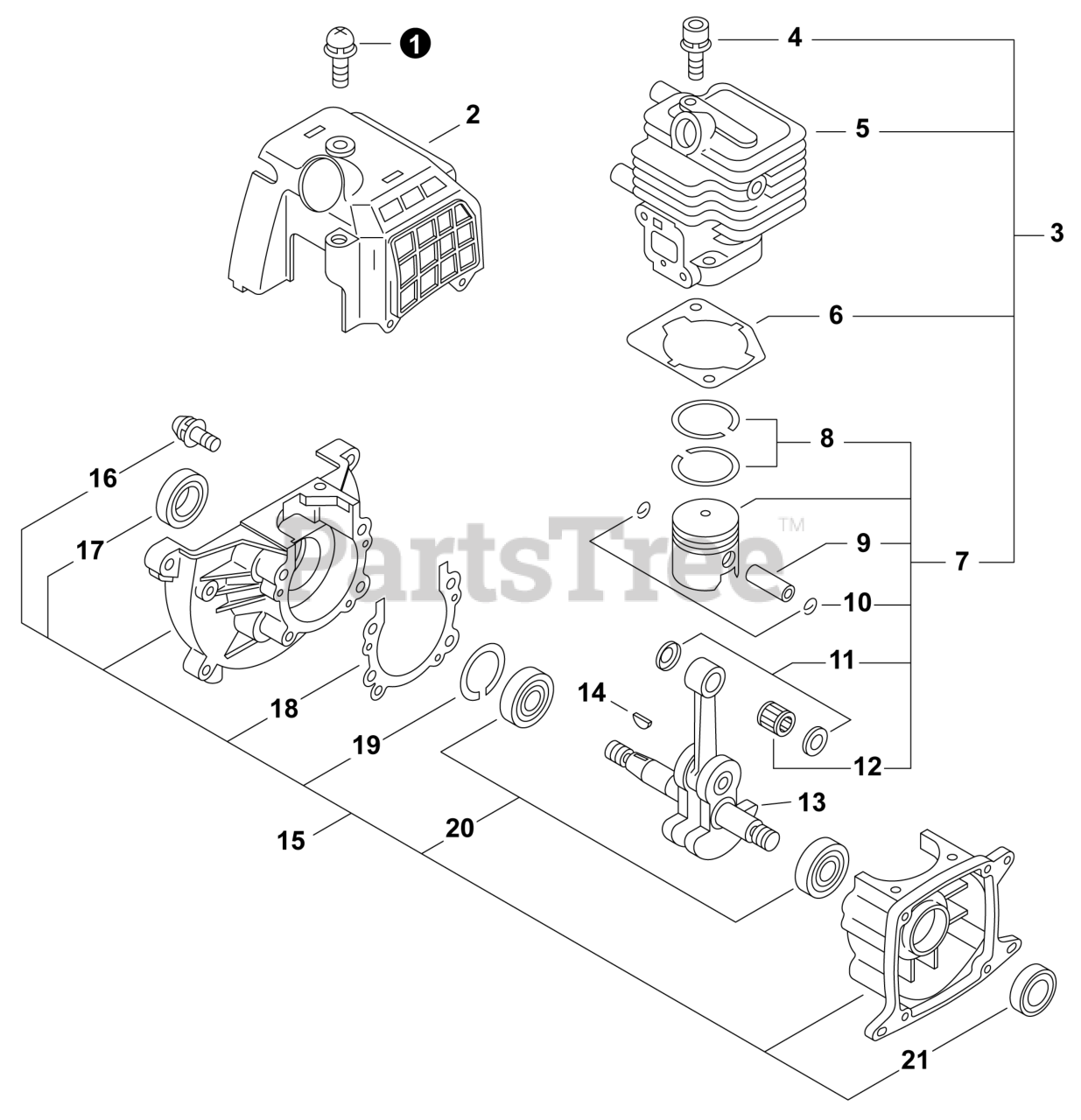

ES 800 - Shindaiwa Power Sprayer, Backpack (SN: H05120001001 - H05120999999) ENGINE Parts Diagram

Power Sprayer, Backpack

ENGINE Parts Diagram

  • Title

1

Echo 90024205014

SCREW 5x14

$0.99

$

In Stock, Qty 20+

0

2

Echo A160001010

COVER, CYLINDER

$13.99

$

Usually ships in 2-4 days

0

3

Echo P021038950

REPAIR KIT, ENGINE

Note: Includes items 4-12

$138.99

$

Usually ships in 2-4 days

0

4

Echo 90016205022

BOLT 5x22

$0.99

$

In Stock, Qty 8

0

5

Echo 10101155931

CYLINDER

$193.99

$

Usually ships in 2-4 days

0

6

Echo 10101055930

GASKET, CYLINDER

$5.99

$

Usually ships in 2-4 days

0

7

Echo P021014440

PISTON KIT

Note: Includes items 8-12

$103.99

$

Usually ships in 2-4 days

0

8

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

9

Echo 10001322330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

10

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

11

Echo 10001455930

WASHER, THRUST

$4.49

$

Usually ships in 2-4 days

0

12

Echo V553000020

BEARING, NEEDLE 8
(Superseded to V553000140)

$12.99

$

Usually ships in 2-4 days

0

13

Echo 10010055931

CRANKSHAFT

$278.99

$

Usually ships in 2-4 days

0

14

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 8

0

15

Echo 10020457031

CRANKCASE KIT

Note: Includes items 16-21

$208.99

$

Usually ships in 2-4 days

0

16

Echo 90024205025

SCREW 5x25

$0.99

$

In Stock, Qty 20+

0

17

Echo 10021228230

SEAL, OIL 12

$4.99

$

In Stock, only 2 left!

0

18

Echo 10024255930

GASKET, CRANKCASE

$4.49

$

In Stock, only 2 left!

0

19

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

20

Echo 90080036001

BEARING, BALL 6001

$11.99

$

In Stock, Qty 20+

0

21

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 16

0
