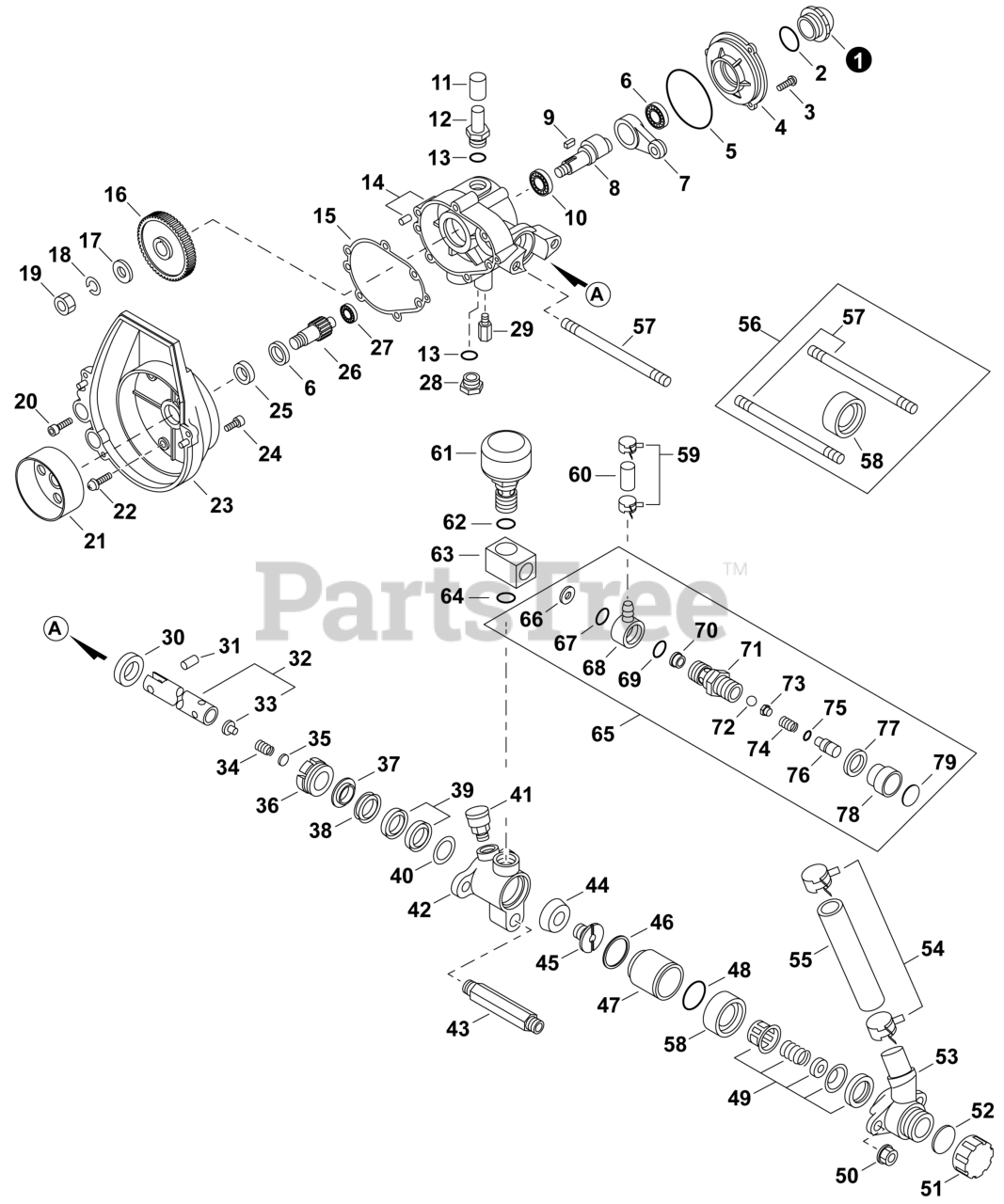

ES 800 - Shindaiwa Power Sprayer, Backpack (SN: H05120001001 - H05120999999) PUMP 1-45 Parts Diagram

Power Sprayer, Backpack

PUMP 1-45 Parts Diagram

  • Title

1

Echo 70615001955

GAUGE, OIL

$3.49

$

Usually ships in 2-4 days

0

2

Echo 70615002781

O-RING

$1.49

$

Usually ships in 2-4 days

0

3

Echo 90024204012

SCREW 4x12

$0.99

$

In Stock, Qty 20+

0

4

Echo 70602003742

COVER, PUMP

$20.99

$

Usually ships in 2-4 days

0

5

Echo 70602004970

O-RING

$3.99

$

Usually ships in 2-4 days

0

6

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$9.49

$

In Stock, Qty 8

0

7

Echo 70602018220

ROD, CONNECTING

$23.99

$

Usually ships in 2-4 days

0

8

Echo 70602019230

CRANKSHAFT

$98.99

$

Usually ships in 2-4 days

0

9

Echo 70602020030

KEY

$2.49

$

Usually ships in 2-4 days

0

10

Echo 90081006201

BEARING, BALL 6201

$6.99

$

Usually ships in 2-4 days

0

11

Echo 70602009970

GROMMET

$2.99

$

Usually ships in 2-4 days

0

12

Echo 70602006920

BOLT, OIL

$8.99

$

Usually ships in 2-4 days

0

13

Echo 90072230112

O-RING

$3.99

$

Usually ships in 2-4 days

0

14

Echo 70602008A43

CASE KIT, PUMP

$118.99

$

Usually ships in 2-4 days

0

15

Echo 70602010700

GASKET, PUMP

$5.49

$

Usually ships in 2-4 days

0

16

Echo 70602022231

GEAR, SPUR

$63.99

$

Usually ships in 2-4 days

0

17

Echo 90060000008

WASHER 8.5x16x1.2

$0.99

$

In Stock, Qty 7

0

18

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

19

Echo 70602025950

NUT

$2.49

$

Usually ships in 2-4 days

0

20

Echo 90016205025

BOLT 5x25

$0.99

$

In Stock, Qty 20+

0

21

Echo 70602013251

DRUM, CLUTCH

$29.99

$

Usually ships in 2-4 days

0

22

Echo 90024205025

SCREW 5x25

$0.99

$

In Stock, Qty 20+

0

23

Echo 70602012241

COVER, FAN

$90.99

$

Usually ships in 2-4 days

0

24

Echo 90016205018

BOLT 5x18

$0.99

$

In Stock, Qty 19

0

25

Echo 70602028970

SEAL, OIL

$7.49

$

Usually ships in 2-4 days

0

26

Echo 70602027231

SHAFT, PINION

$42.99

$

Usually ships in 2-4 days

0

27

Echo 90080000609

BEARING, BALL 609

$9.99

$

In Stock, Qty 16

0

28

Echo 70602017920

CAP, DRAIN

$9.99

$

Usually ships in 2-4 days

0

29

Echo 70615074950

ADAPTOR

$8.49

$

Usually ships in 2-4 days

0

30

Echo 70602016970

SEAL, OIL

$9.49

$

Usually ships in 2-4 days

0

31

Echo 70602030230

PIN, PISTON

$9.49

$

Usually ships in 2-4 days

0

32

Echo 70602031A13

PLUNGER SET, W/SPRING HOLDER

Note: Includes Item 33

$46.99

$

Usually ships in 2-4 days

0

33

Echo 70615086060

HOLDER, SPRING

$5.99

$

Usually ships in 2-4 days

0

34

Echo 70602032010

SPRING, VALVE

$3.99

$

Usually ships in 2-4 days

0

35

Echo 70602033710

PLATE

$5.99

$

Usually ships in 2-4 days

0

36

Echo 70602037620

NUT

$15.99

$

Usually ships in 2-4 days

0

37

Echo 70602038720

PACKING

$3.99

$

Usually ships in 2-4 days

0

38

Echo 70602039720

PACKING, GREASE

$6.49

$

Usually ships in 2-4 days

0

39

Echo 70602040771

PACKING SET

$22.99

$

Usually ships in 2-4 days

0

40

Echo 70602041720

ADAPTOR

$5.99

$

Usually ships in 2-4 days

0

41

Echo 70602042040

CUP ASSY, GREASE

$10.99

$

Usually ships in 2-4 days

0

42

Echo 70602043421

CYLINDER

$68.99

$

Usually ships in 2-4 days

0

43

Echo 70602045022

CONNECTOR, HOSE

$20.99

$

Usually ships in 2-4 days

0

44

Echo 70602034770

PACKING, PISTON

$19.99

$

Usually ships in 2-4 days

0

45

Echo 70602035911

SEAT, VALVE

$31.99

$

Usually ships in 2-4 days

0
