ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) AIR CLEANER Parts Diagram

Generator, Made in Japan

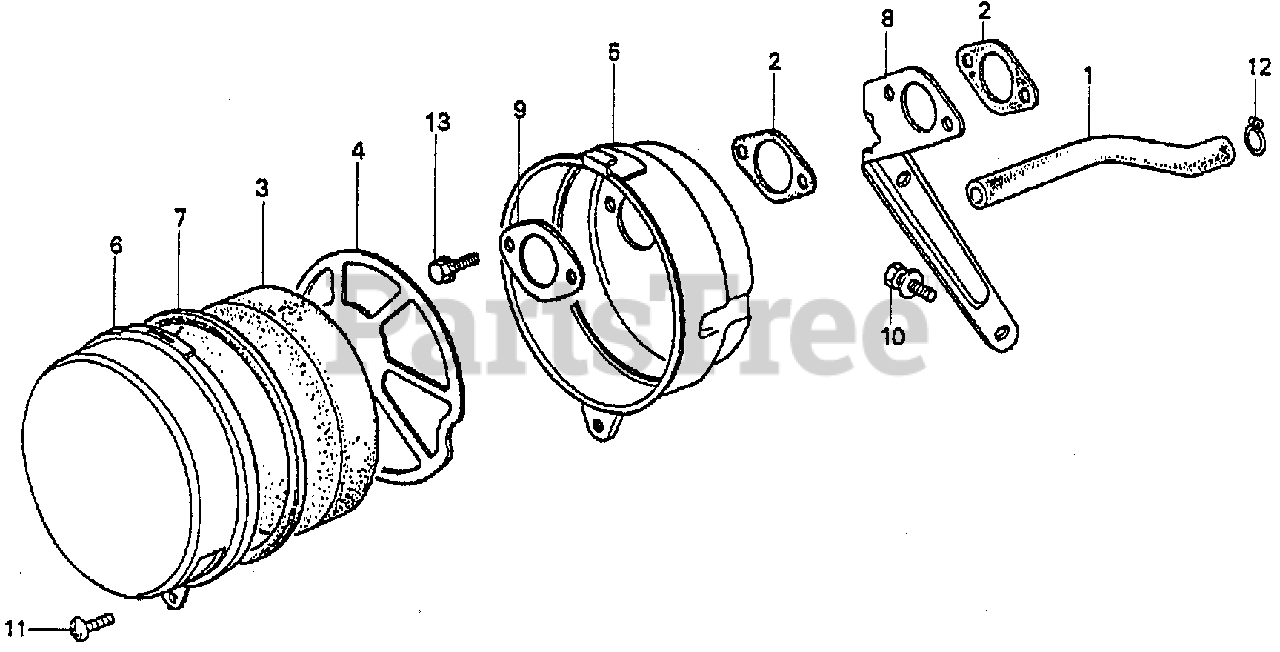

AIR CLEANER Parts Diagram

  • Title

1

Honda 12381-873-000

TUBE, BREATHER

$

$

Not available

2

Honda 16269-823-000

GASKET, AIR CLEANER (NOT AVAILABLE)

Note: Use up to Engine SN 1050551.

$

$

Currently unavailable

3

Honda 17211-823-680

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$

$

Not available

4

Honda 17212-810-000

GRID, CLEANER

$21.99

$

Usually ships in 3-6 days

0

5

Honda 17220-873-630

HOUSING, AIR CLEANER

$

$

Currently unavailable

6

Honda 17230-880-000H

COVER, AIR CLEANER *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 17233-823-680

RUBBER, SEAL

$

$

Not available

8

Honda 17235-880-000

STAY, CARBURETOR (NOT AVAILABLE)

Note: Use from Engine SN 1050552.

$

$

Currently unavailable

9

Honda 17236-880-000

PLATE, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 93401-08016-00

SEE PART DETAILS - PRI; BOLT-WASHER (8X16)

Note: Use from Engine SN 1050552.

$2.49

$

Usually ships in 3-6 days

0

10

Honda 93411-08016-00

SEE PART DETAILS - SUP; BOLT-WASHER (8X16)

Note: Use from Engine SN 1050552.

$

$

Currently unavailable

11

Honda 93500-06012

SEE PART DETAILS - SUP; SCREW, PAN (6X12)

$

$

Currently unavailable

11

Honda 93500-06012-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 95002-02130

CLIP, TUBE (B12.5)

$1.49

$

In Stock, Qty 5

0

13

Honda 95701-06016-08

BOLT, FLANGE (6X16)

Note: Use up to Engine SN 1050551.

$1.99

$

In Stock, Qty 5

0

13

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

Note: Use from Engine SN 1050552.

$0.99

$

Usually ships in 3-6 days

0
