ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) CARBURETOR Parts Diagram

Generator, Made in Japan

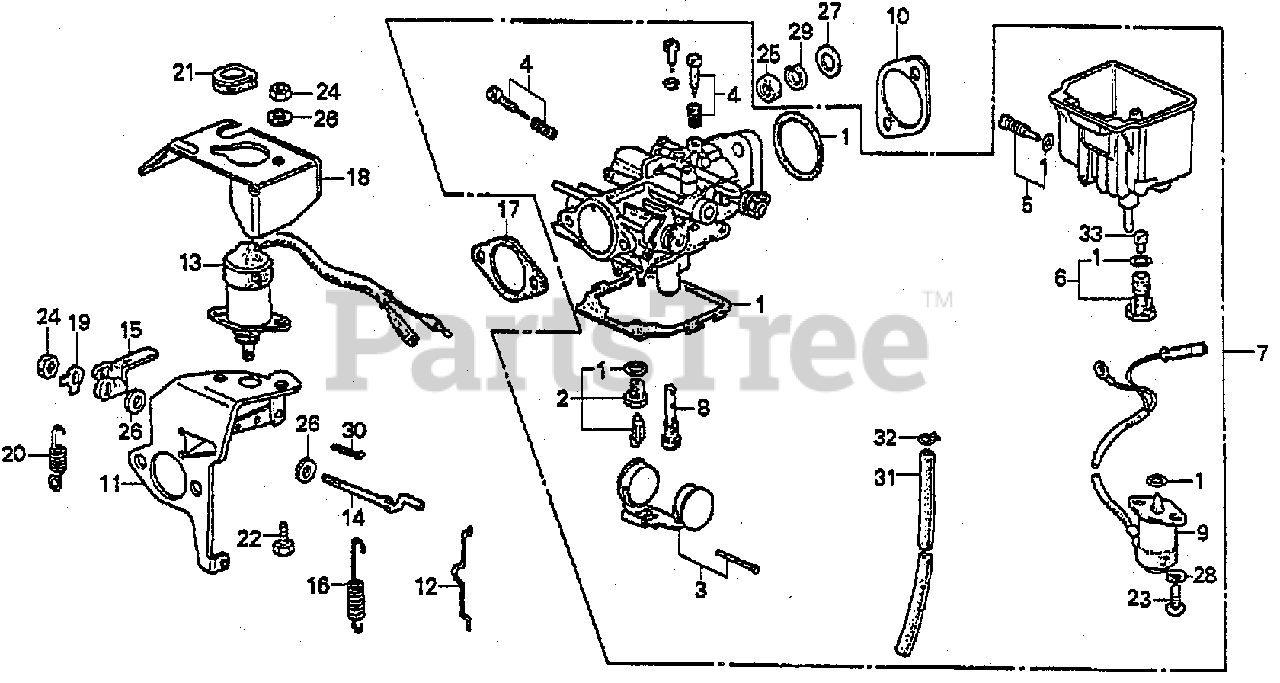

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-880-003

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-880-505)

$

$

Not available

2

Honda 16011-812-014

SEE PART DETAILS - SUP; VALVE SET, FLOAT

$

$

Currently unavailable

2

Honda 16011-866-004

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$20.99

$

In Stock, only 1 left!

0

3

Honda 16013-862-004

FLOAT SET

$

$

Not available

4

Honda 16016-873-004

SCREW SET A (NOT AVAILABLE)

$

$

Not available

5

Honda 16024-124-004

SCREW SET, DRAIN

$

$

Currently unavailable

6

Honda 16028-880-003

SCREW SET B (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16100-880-671

CARBURETOR ASSY.

Note: Use up to Engine SN 1050763.

$

$

Currently unavailable

7

Honda 16100-880-672

CARBURETOR ASSY. (NOT AVAILABLE)

Note: Use from Engine SN 1050764.

$

$

Not available

8

Honda 16166-874-004

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16200-880-003

VALVE ASSY., SOLENOID (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16212-880-305

SHIM, CARBURETOR (NOT AVAILABLE)

Note: Use up to Engine SN 1050763.

$

$

Not available

11

Honda 16260-880-000

STAY, SOLENOID (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 16264-880-000

ROD, CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 16265-880-003

CHOKE, SOLENOID (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 16266-880-000

ROD, MANUAL CHOKE

$

$

Not available

15

Honda 16267-880-000

LEVER, CHOKE

$

$

Not available

16

Honda 16268-880-000

SPRING, CHOKE RETURN (NOT AVAILABLE)

$

$

Not available

17

Honda 16269-823-000

GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 16270-880-010

COVER, SOLENOID (NOT AVAILABLE)

$

$

Not available

19

Honda 16271-880-000

WASHER, LOCK

$

$

Not available

20

Honda 16272-880-000

SPRING, CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 16852-880-000

GROMMET, TUBE (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 92101-05012-0G

BOLT, HEX. (5X12)

$1.49

$

In Stock, only 4 left!

0

23

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 9

0

24

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

25

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

26

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

27

Honda 94101-06000

SEE PART DETAILS - SUP; WASHER, PLAIN (6MM)

Note: Use from Engine SN 1039819.

$

$

Currently unavailable

27

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: Use from Engine SN 1039819.

$0.99

$

In Stock, Qty 20+

0

28

Honda 94111-05000

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94201-20150

PIN, SPLIT (2.0X15)

$1.49

$

In Stock, only 2 left!

0

31

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X270)

$29.99

$

Usually ships in 3-6 days

0

32

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 6

0

33

Honda 99101-862-0920

JET, MAIN (#92)

$

$

Currently unavailable
