ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) CONTROL BOX ASSY. + GENERATOR ASSY. Parts Diagram

Generator, Made in Japan

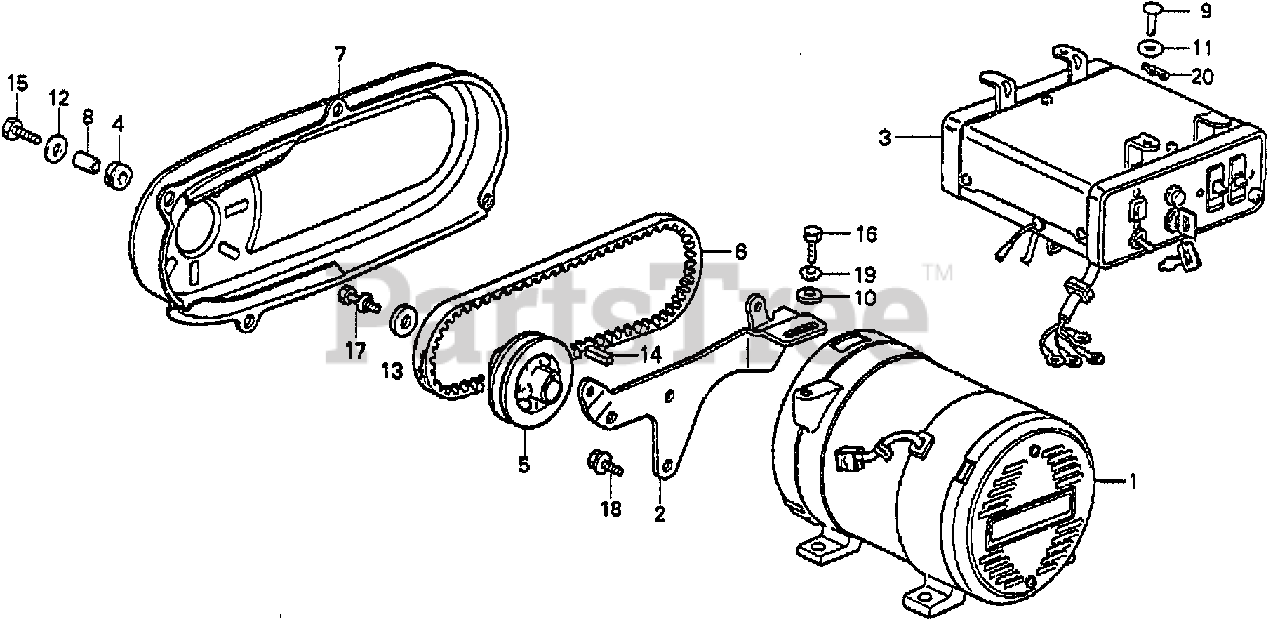

CONTROL BOX ASSY. + GENERATOR ASSY. Parts Diagram

  • Title

1

Honda 31000-880-681ZA

GENERATOR ASSY. *R8/NH31/NH1* (BRIGHT RED/MC KINLEY WHITE/ BLACK)

$

$

Not available

2

Honda 31181-880-000

STAY, GENERATOR

$

$

Not available

3

Honda 31400-880-672

BOX ASSY., CONTROL

$

$

Not available

4

Honda 36043-657-000

SEE PART DETAILS - SUP; GROMMET, WIRE HARNESS

$

$

Currently unavailable

5

Honda 49114-880-690

V-PULLEY (60)

$

$

Not available

6

Honda 49212-880-691

V-BELT (B-37) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 63610-880-000H

COVER, BELT *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 63621-880-000

COLLAR (8MM)

$

$

Not available

9

Honda 68331-876-000

PIN, CONTROL BOX SETTING

$4.99

$

In Stock, only 2 left!

0

10

Honda 90401-880-000

WASHER (10X30X3.5T)

$10.99

$

In Stock, only 4 left!

0

11

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

12

Honda 90525-030-000

WASHER B, HANDLE HOLDER SETTING

$2.49

$

Usually ships in 3-6 days

0

13

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33) (YELLOW)

$9.49

$

Usually ships in 3-6 days

0

15

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

16

Honda 92000-10025-0A

SEE PART DETAILS - SUP; BOLT, HEX. (10X25)

$

$

Currently unavailable

16

Honda 92101-10025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (10X25)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 93481-08030-00

BOLT-WASHER (8X30) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

18

Honda 93401-08020-00

SEE PART DETAILS - PRI; BOLT-WASHER (8X20)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94101-10000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 20+

0
