ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) CRANKSHAFT + PISTON Parts Diagram

Generator, Made in Japan

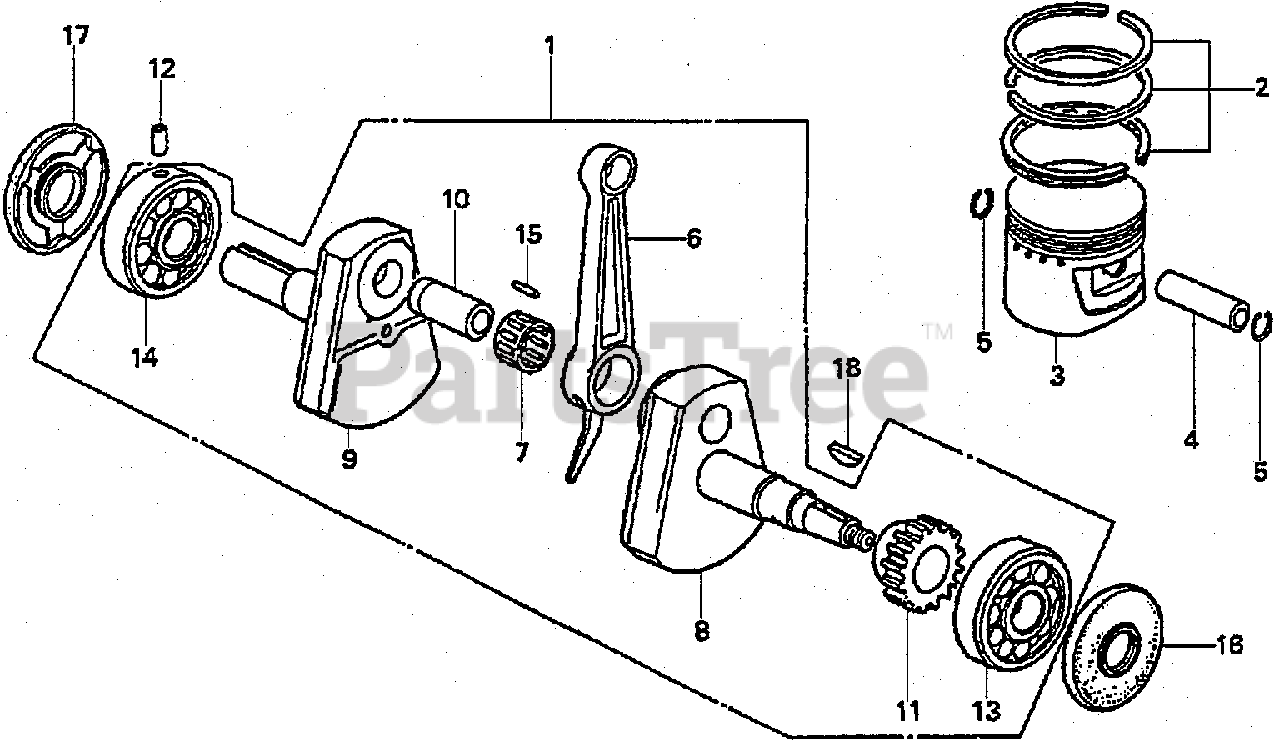

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13000-874-000

CRANKSHAFT

$

$

Currently unavailable

2

Honda 13010-874-000

RING SET, PISTON (STD) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 13011-874-000

RING SET, PISTON (OS 0.25)

$35.99

$

Usually ships in 3-6 days

0

2

Honda 13012-874-000

RING SET, PISTON (OS 0.50)

$

$

Currently unavailable

2

Honda 13013-874-000

RING SET, PISTON (0.75)

$

$

Not available

3

Honda 13101-874-000

PISTON (STD) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 13102-874-000

PISTON (OS 0.25)

$

$

Currently unavailable

3

Honda 13103-874-000

PISTON (OS 0.50)

$

$

Currently unavailable

3

Honda 13104-874-000

PISTON (0.75)

$

$

Currently unavailable

4

Honda 13111-809-010

PIN, PISTON

$

$

Not available

5

Honda 94601-19000

CLIP, PISTON PIN (19MM)

$0.99

$

Usually ships in 3-6 days

0

6

Honda 13201-874-300

ROD, CONNECTING (NOT AVAILABLE)

$

$

Not available

7

Honda 13211-809-000

RETAINER, ROLLER

$44.99

$

Usually ships in 3-6 days

0

8

Honda 13311-874-300

CRANKSHAFT, R.

$

$

Not available

9

Honda 13321-874-300

CRANKSHAFT, L.

$

$

Not available

10

Honda 13381-809-010

PIN, CRANK (N/A: SEE ASSEMBLY)

$

$

Not available

11

Honda 14311-823-000

GEAR, TIMING

$

$

Not available

12

Honda 90705-259-020

PIN, KNOCK (7X12) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 91001-809-003

BEARING, RADIAL BALL (6306S)

$

$

Currently unavailable

14

Honda 91002-874-003

SEE PART DETAILS - PRI; BEARING, SPECIAL BALL (6306S6HS) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 91101-809-020

ROLLER, ROD (3X16)

$

$

Not available

16

Honda 91201-809-003

OIL SEAL (30759) (NOT AVAILABLE)

$

$

Not available

16

Honda 91201-809-015

OIL SEAL (PJ30759)

$

$

Currently unavailable

17

Honda 91202-809-003

OIL SEAL (PJ30779)

$20.99

$

Usually ships in 3-6 days

0

18

Honda 94401-25180

KEY, SPECIAL WOODRUFF (25X18)

$1.99

$

In Stock, Qty 12

0
