ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) CYLINDER Parts Diagram

Generator, Made in Japan

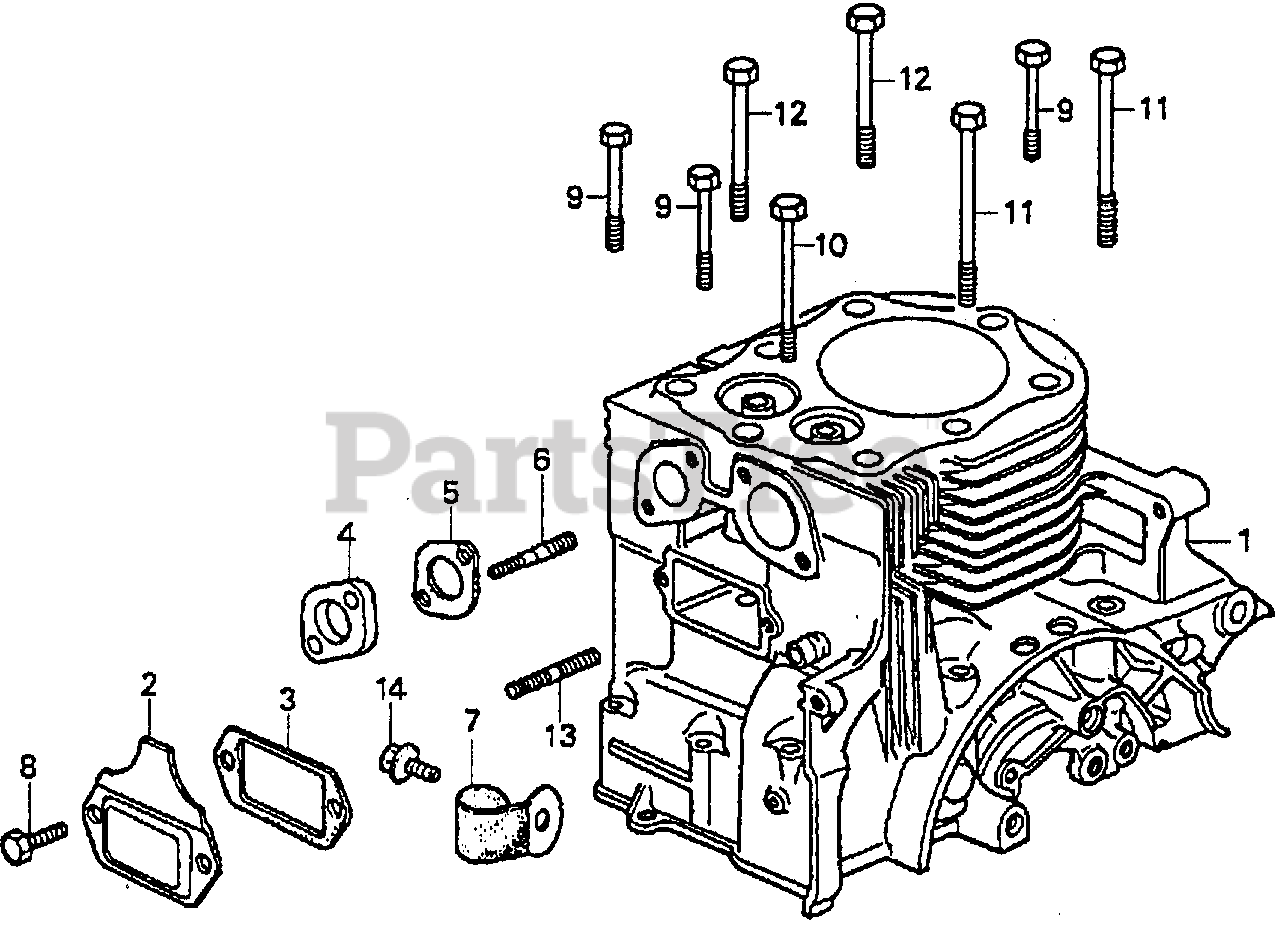

CYLINDER Parts Diagram

  • Title

1

Honda 12100-874-760

CYLINDER

$

$

Not available

2

Honda 12361-874-000

COVER, TAPPET (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 15719-823-306

GASKET, TAPPET

$

$

Not available

4

Honda 16211-823-000

INSULATOR, CARBURETOR

$

$

Currently unavailable

5

Honda 16229-823-000

GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 90062-822-701

BOLT, STUD (8X39)

$

$

Not available

7

Honda 91404-657-000

CLAMP, CORD (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

9

Honda 92000-06063

BOLT, HEX. (6X63)

$

$

Currently unavailable

10

Honda 92101-06090-0A

BOLT, HEX. (6X90)

$

$

Not available

11

Honda 92000-08100-0A

BOLT, HEX. (8X100)

$

$

Currently unavailable

12

Honda 92022-08080-0A

BOLT, HEX. (8X80) (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

13

Honda 92700-06032-0B

BOLT, STUD (6X32)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 93481-08012-00

BOLT-WASHER (8X12)

Note: Use up to Engine SN 1050551.

$

$

Not available
