ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) FAN COVER + SIDE COVER Parts Diagram

Generator, Made in Japan

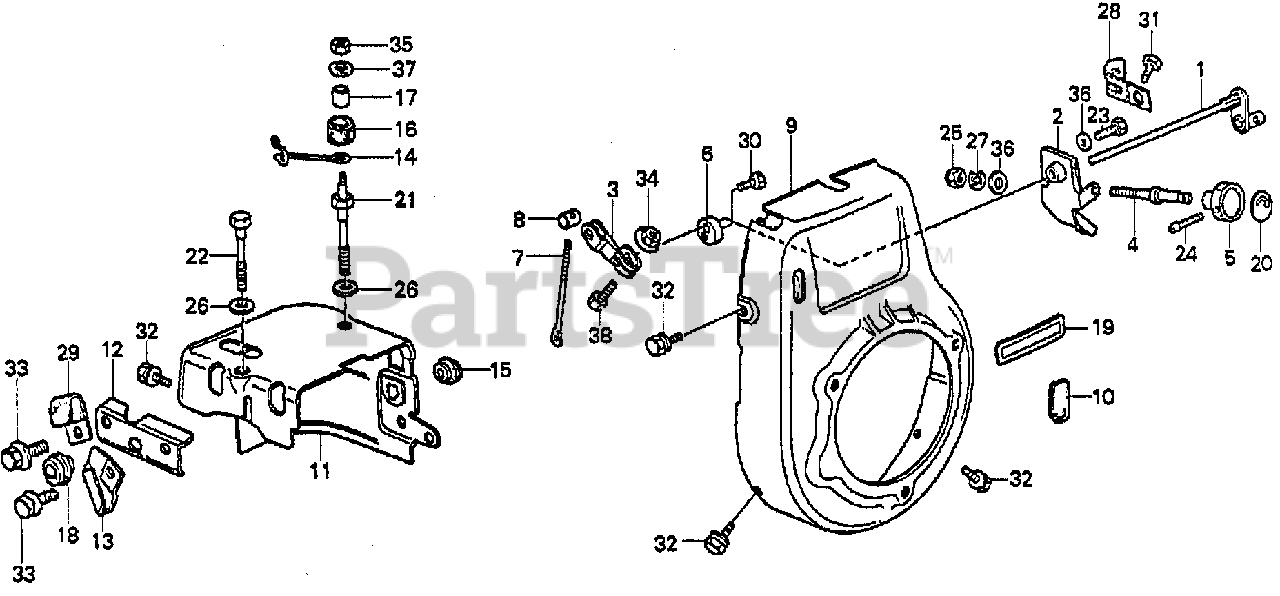

FAN COVER + SIDE COVER Parts Diagram

  • Title

1

Honda 16550-880-000

SHAFT, CONTROL

$

$

Not available

2

Honda 16552-880-000

BASE, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16560-880-000

ARM, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16562-880-000

SHAFT, ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16564-812-020

KNOB, CONTROL

$

$

Not available

6

Honda 16564-880-000

HOLDER, SHAFT

$

$

Not available

7

Honda 16575-823-000

ROD, ADJUSTING

$

$

Not available

8

Honda 16579-823-000

JOINT, ADJUSTING ROD (NOT AVAILABLE)

$

$

Not available

9

Honda 19600-880-000H

COVER, FAN *R8* (BRIGHT RED)

$

$

Currently unavailable

10

Honda 19605-880-000

GROMMET, FAN COVER

$

$

Currently unavailable

11

Honda 19611-880-010H

COVER, SIDE *R8* (BRIGHT RED)

$

$

Not available

12

Honda 19612-880-000

BRACKET, SIDE COVER

$

$

Not available

13

Honda 19625-880-000

GUIDE, AIR

$

$

Not available

14

Honda 30564-865-630

CLAMP, IGNITION WIRE (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 36151-873-740

GROMMET, COVER (NOT AVAILABLE)

Note: Use up to Engine SN 1018476.

$

$

Currently unavailable

16

Honda 50318-839-000

RUBBER, STOPPER (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 50319-839-000

COLLAR, DISTANCE

$3.99

$

Usually ships in 3-6 days

0

18

Honda 80102-323-000

GROMMET, CABLE

Note: Use from Engine SN 1018477.

$

$

Not available

19

Honda 87101-880-000

EMBLEM

$

$

Not available

20

Honda 87532-880-000

MARK, KNOB (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 90001-880-000

BOLT, SPECIAL HEX.

$

$

Not available

22

Honda 90006-874-000

BOLT, HEX. (10X76)

$

$

Not available

23

Honda 90037-880-000

BOLT (6MM)

$

$

Not available

24

Honda 90192-836-000

BOLT, KNOB (3MM) (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 90284-880-000

NUT, LOCK

$

$

Not available

26

Honda 90426-035-000

WASHER, MAGNET FIXING

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90652-880-000

E-RING

$

$

Currently unavailable

28

Honda 91401-880-000

WIRE HARNESS (NOT AVAILABLE)

$

$

Currently unavailable

29

Honda 91404-657-000

CLAMP, CORD (NOT AVAILABLE)

$

$

Currently unavailable

30

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 92000-06008

SEE PART DETAILS - SUP; BOLT, HEX. (6X8)

$

$

Currently unavailable

31

Honda 92101-06008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X8)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 93401-06012-00

SEE PART DETAILS - PRI; BOLT-WASHER (6X12)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 93401-08020-00

SEE PART DETAILS - PRI; BOLT-WASHER (8X20)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

Note: Use up to Engine SN 1019582.

$1.99

$

In Stock, Qty 20+

0

34

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

Note: Use up to Engine SN 1019582.

$1.99

$

In Stock, Qty 20+

0

34

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Engine SN 1019583.

$0.99

$

In Stock, Qty 20+

0

35

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 20+

0

36

Honda 94101-06000

SEE PART DETAILS - SUP; WASHER, PLAIN (6MM)

$

$

Currently unavailable

36

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

37

Honda 94101-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

38

Honda 92101-06020-0H

BOLT, HEX. (6X20)

Note: Use from Engine SN 1019583.

$1.99

$

Usually ships in 3-6 days

0

38

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: Use up to Engine SN 1019582.

$1.99

$

In Stock, only 4 left!

0
