ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) FRAME + ENGINE BED Parts Diagram

Generator, Made in Japan

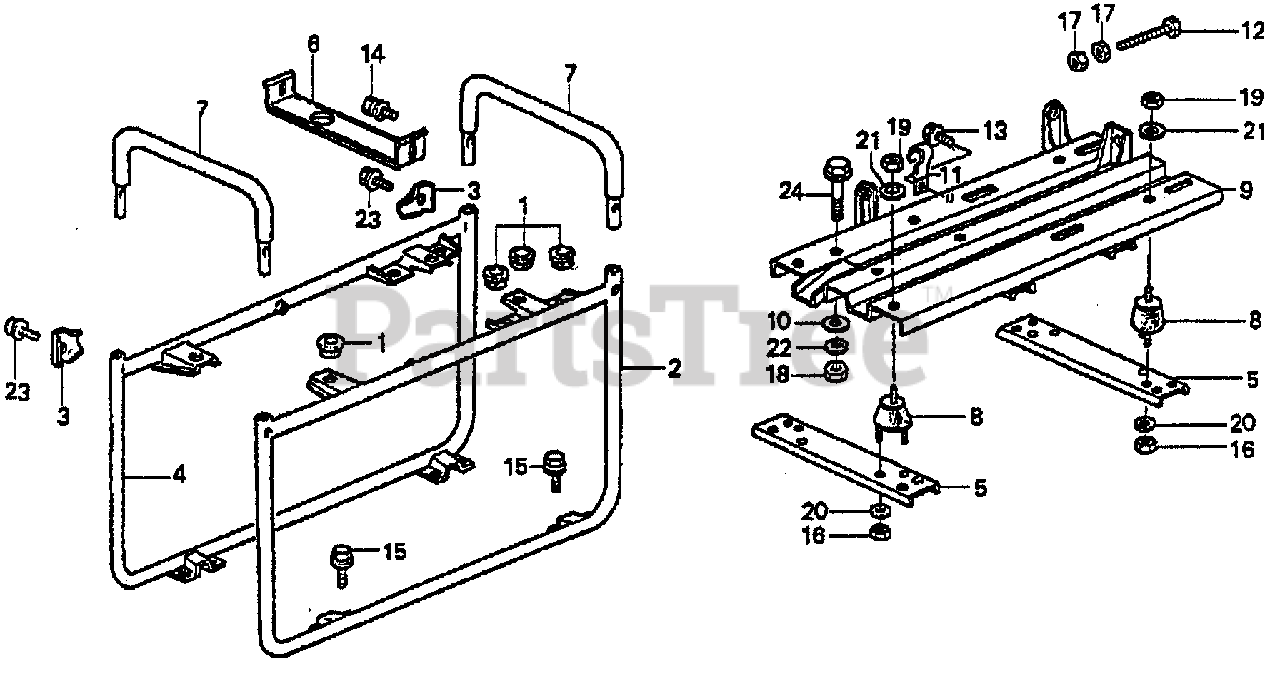

FRAME + ENGINE BED Parts Diagram

  • Title

1

Honda 17682-817-020

RUBBER, TANK CUSHION

$

$

Not available

2

Honda 50120-880-010

FRAME, FR. PIPE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 50121-880-000

PLATE, JOINT

$

$

Not available

4

Honda 50130-880-010

PIPE FRAME, RR.

$

$

Not available

5

Honda 50311-880-010

PLATE (LOWER)

$

$

Not available

6

Honda 50317-880-000

STOPPER, ENGINE (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 53120-880-000

HANDLEBAR (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 68325-893-000

RUBBER, ENGINE SETTING

$

$

Not available

9

Honda 68310-880-010

BED, ENGINE (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 90501-579-020

WASHER, EX. MANIFOLD

$6.99

$

Usually ships in 3-6 days

0

11

Honda 91403-880-010

CLIP, CORD

$

$

Not available

12

Honda 92180-08080-0A

BOLT, HEX. (8X80)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 93411-06012-08

BOLT-WASHER (6X12)

Note: Use up to Frame SN 1014356.

$1.99

$

Usually ships in 3-6 days

0

13

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

Note: Use from Frame SN 1014357.

$

$

Not available

13

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use from Frame SN 1014357.

$1.99

$

In Stock, Qty 20+

0

14

Honda 93402-06012-00

BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 93412-06012-00

BOLT-WASHER (6X12)
(Superseded to 93402-06012-00)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 93401-08016-00

SEE PART DETAILS - PRI; BOLT-WASHER (8X16)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

Note: Use from Frame SN 1014357.

$1.99

$

In Stock, Qty 20+

0

16

Honda 94001-06080-0S

NUT, HEX. (6MM)

Note: Use up to Frame SN 1014356.

$1.99

$

In Stock, Qty 6

0

16

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

Note: Use from Frame SN 1014357.

$1.99

$

In Stock, Qty 20+

0

17

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 20+

0

18

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

19

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94101-06000

SEE PART DETAILS - SUP; WASHER, PLAIN (6MM)

$

$

Currently unavailable

20

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 94101-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

22

Honda 94111-10000

WASHER, SPRING (10MM)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

24

Honda 95800-10040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (10X40)

$

$

Currently unavailable

24

Honda 95801-10040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X40)

$2.99

$

Usually ships in 3-6 days

0
