ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) FUEL TANK + FUEL VALVE ASSY. Parts Diagram

Generator, Made in Japan

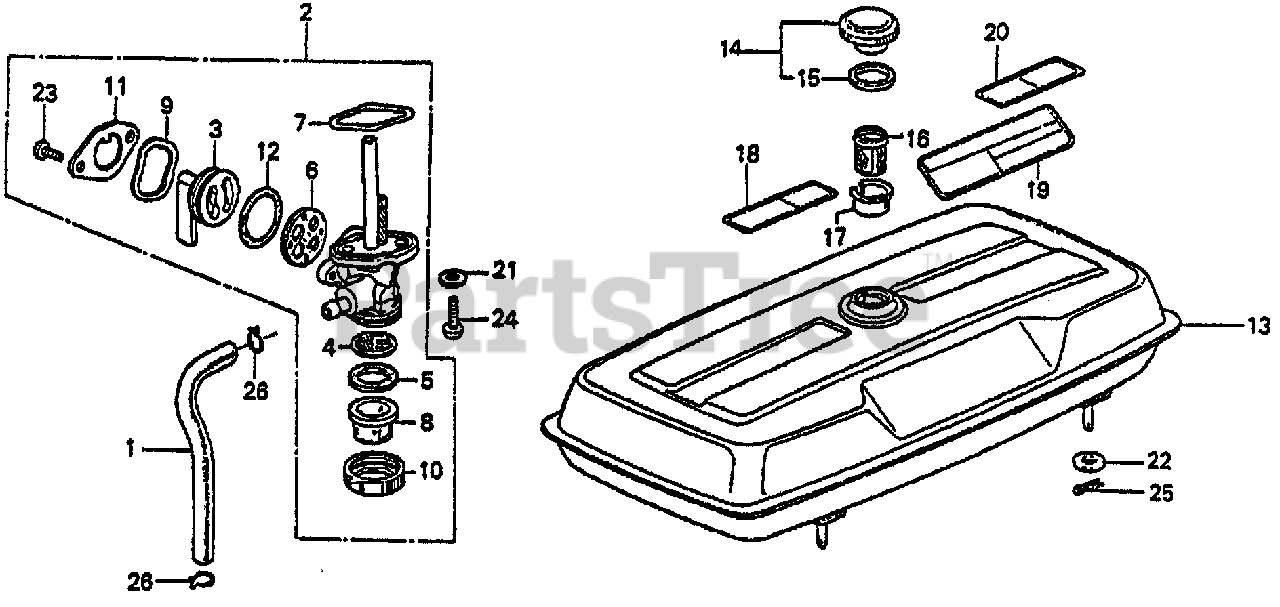

FUEL TANK + FUEL VALVE ASSY. Parts Diagram

  • Title

1

Honda 16851-880-000

TUBE, CARBURETOR FUEL (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16950-865-701

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Not available

3

Honda 16952-865-010

LEVER, VALVE

$15.99

$

Usually ships in 3-6 days

0

4

Honda 16080-865-005

GASKET SET, VALVE

$36.99

$

In Stock, only 1 left!

0

5

Honda 16958-703-007

GASKET, FUEL STRAINER CUP

$5.99

$

In Stock, Qty 8

0

6

Honda 16959-865-000

GASKET, VALVE

$

$

Not available

7

Honda 16962-865-010

RING, PETCOCK SEAL

$

$

Not available

8

Honda 16921-815-004

BOWL, FUEL

$6.49

$

In Stock, only 1 left!

0

9

Honda 16975-815-004

SPRING, LEVER (NOT AVAILABLE)

$4.49

$

Usually ships in 3-6 days

0

10

Honda 16977-703-000

NUT, RING (NOT AVAILABLE)

$

$

Not available

11

Honda 16978-865-014

STOPPER, LEVER (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 16983-815-000

O-RING (21MM) (NOT AVAILABLE)

$

$

Not available

13

Honda 17500-880-000XC

TANK, FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 17620-329-000

SEE PART DETAILS - SUP; CAP, FUEL FILLER

$

$

Currently unavailable

14

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-402-020)

$18.99

$

In Stock, only 1 left!

0

15

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

$

$

Not available

16

Honda 17672-880-000

FILTER, FUEL

$13.99

$

Usually ships in 3-6 days

0

17

Honda 17673-893-000

HOLDER, FUEL FILTER

$13.99

$

In Stock, only 1 left!

0

18

Honda 87522-836-670

MARK A, CAUTION

$

$

Not available

19

Honda 87522-880-670

PLATE, CAUTION

$

$

Currently unavailable

20

Honda 87561-880-600

MARK, CAUTION (ENGLISH/FRENCH/SPANISH)

Note: Use from Frame SN 1002972.

$4.99

$

In Stock, Qty 7

0

21

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.49

$

In Stock, only 2 left!

0

22

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

23

Honda 93500-03008-0A

SCREW, PAN (3X8)

$0.99

$

In Stock, only 1 left!

0

24

Honda 93500-06016-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X16)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94251-08000

PIN, LOCK (8MM)

$1.49

$

In Stock, Qty 20+

0

26

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$2.49

$

In Stock, only 2 left!

0
