ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) ROTOR + STATOR Parts Diagram

Generator, Made in Japan

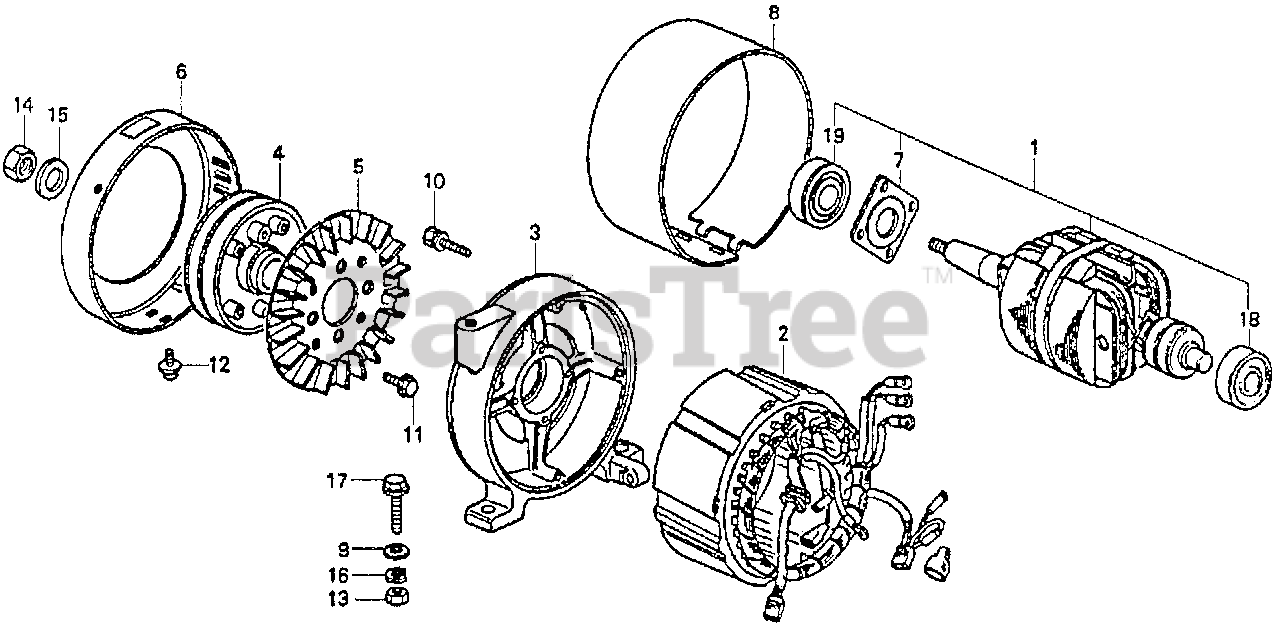

ROTOR + STATOR Parts Diagram

  • Title

1

Honda 31104-880-013

ROTOR

$

$

Not available

2

Honda 31105-880-681

STATOR

$

$

Currently unavailable

3

Honda 31106-880-000XC

SEE PART DETAILS - SUP; HOUSING, FR. *NH31* (MCKINLEY WHITE)
(Superseded to 31106-880-010XC)

$

$

Not available

3

Honda 31106-880-010XC

SEE PART DETAILS - PRI; HOUSING, FR. *NH31* (MCKINLEY WHITE)

$

$

Not available

4

Honda 31111-880-000

PULLEY, ALTERNATOR (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 31112-880-000

FAN

$

$

Not available

6

Honda 31114-880-000XC

COVER, FAN *NH31* (MCKINLEY WHITE)

$

$

Not available

7

Honda 31116-880-000

PLATE, BEARING SETTING

$

$

Not available

8

Honda 31127-880-000XC

COVER, STATOR *NH31* (MCKINLEY WHITE)

$

$

Not available

9

Honda 90501-579-020

WASHER, EX. MANIFOLD

$6.99

$

Usually ships in 3-6 days

0

10

Honda 93481-05030-08

BOLT-WASHER (5X20) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 93411-06012-08

BOLT-WASHER (6X12)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 93893-05010-08

SCREW-WASHER (5X10)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

14

Honda 94001-18080-0S

NUT, HEX. (18MM) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 94101-18800

WASHER, FLAT (18MM) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 94111-10000

WASHER, SPRING (10MM)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 95801-10032-00

BOLT, FLANGE (10X32)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 96150-63040-10

BEARING, RADIAL BALL (6304UU)

$21.99

$

Usually ships in 3-6 days

0

19

Honda 96150-63060-10

BEARING, RADIAL BALL (6306UU) (NOT AVAILABLE)

$46.99

$

Usually ships in 3-6 days

0
