ES3500 K1 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1100014 - ES3500-1129443) PISTON + RING Parts Diagram

Generator, Made in Japan

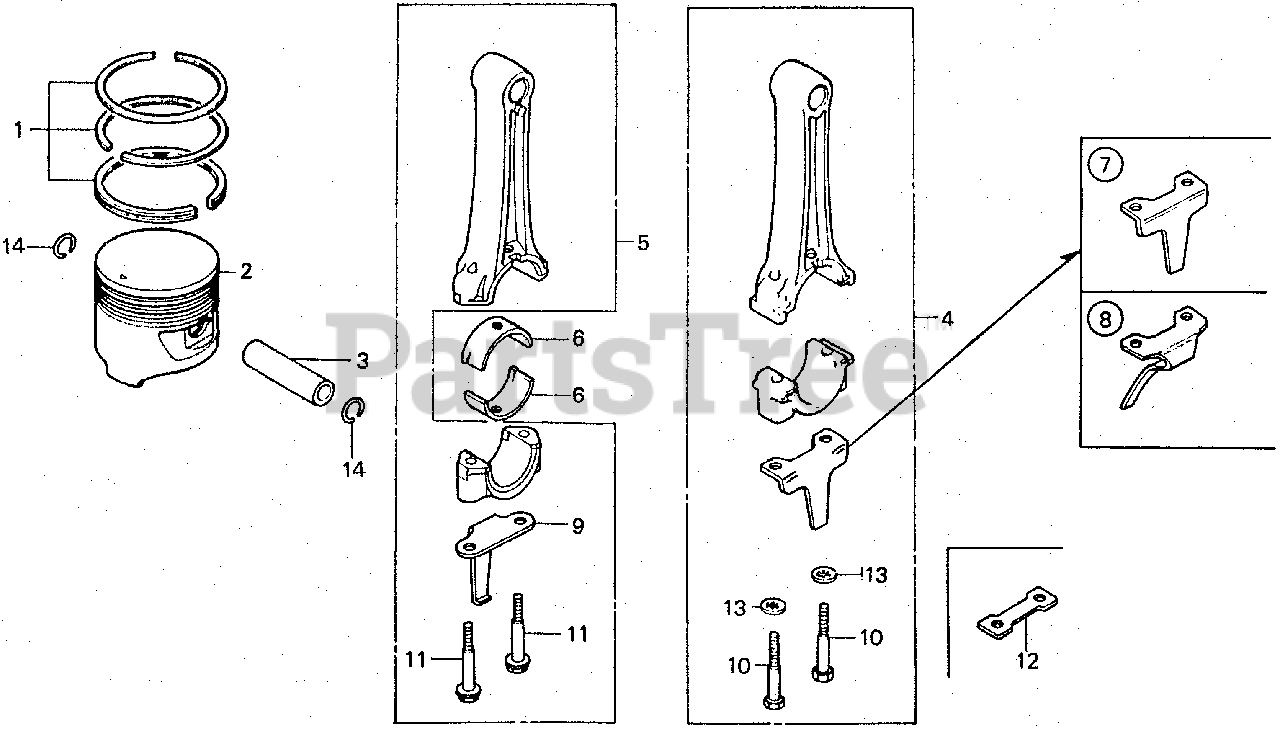

PISTON + RING Parts Diagram

  • Title

1

Honda 13010-YA2-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$

$

Not available

1

Honda 13010-890-010

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (NOT AVAILABLE)

$

$

Not available

1

Honda 13011-YA2-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 13011-890-010

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25)

$78.99

$

Usually ships in 3-6 days

0

1

Honda 13012-YA2-003

SEE PART DETAILS - PRI; RING, PISTON (OS 0.50)

$84.99

$

Usually ships in 3-6 days

0

1

Honda 13012-890-010

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)

$84.99

$

Usually ships in 3-6 days

0

1

Honda 13013-890-010

SEE PART DETAILS - SUP; RING SET, PISTON (0.75)

$

$

Not available

2

Honda 13101-890-010

SEE PART DETAILS - PRI; PISTON (STD)

$128.99

$

In Stock, only 1 left!

0

2

Honda 13102-890-010

PISTON (OS 0.25)

$107.99

$

Usually ships in 3-6 days

0

2

Honda 13103-890-010

PISTON (OS 0.50)

$

$

Not available

2

Honda 13104-890-010

PISTON (0.75)

$102.99

$

Usually ships in 3-6 days

0

3

Honda 13111-890-000

PIN, PISTON

$10.99

$

Usually ships in 3-6 days

0

4

Honda 13200-890-000

ROD ASSY., CONNECTING

Note: Use up to Engine SN 1016894.

$

$

Currently unavailable

4

Honda 13200-890-010

ROD ASSY., CONNECTING

Note: Use from Engine SN 1016895 to 1041378.

$

$

Currently unavailable

4

Honda 13200-890-030

ROD ASSY., CONNECTING (NOT AVAILABLE)

Note: Use from Engine SN 1041379 to 1050927.

$

$

Not available

4

Honda 13200-890-040

ROD ASSY., CONNECTING (NOT AVAILABLE)

Note: Use from Engine SN 1050928 to 1064734.

$

$

Currently unavailable

4

Honda 13200-890-305

ROD ASSY., CONNECTING (US) Use up to Engine SN 1016894.

$

$

Currently unavailable

4

Honda 13200-890-315

ROD ASSY., CONNECTING (US) Use from Engine SN 1016895 to 1041378.

$

$

Currently unavailable

4

Honda 13200-890-335

ROD ASSY., CONNECTING (US) Use from Engine SN 1041379 to 1050927.

$116.99

$

Usually ships in 3-6 days

0

4

Honda 13200-890-345

ROD ASSY., CONNECTING (US) Use from Engine SN 1050928 to 1086089.

$

$

Currently unavailable

4

Honda 13200-890-730

ROD ASSY., CONNECTING

Note: Use from Engine SN 1064735 to 1086089.

$153.99

$

Usually ships in 3-6 days

0

5

Honda 13200-890-070

ROD ASSY., CONNECTING

Note: Use from Engine SN 1086090.

$

$

Not available

6

Honda 13225-890-003

BEARING A, CONNECTING ROD Use from Engine SN 1086090.

$

$

Not available

6

Honda 13226-890-003

BEARING B, CONNECTING ROD Use from Engine SN 1086090.

$17.99

$

In Stock, only 1 left!

0

6

Honda 13227-890-003

BEARING C, CONNECTING ROD Use from Engine SN 1086090.

$16.99

$

In Stock, only 2 left!

0

6

Honda 13228-890-003

BEARING D, CONNECTING ROD Use from Engine SN 1086090.

$16.99

$

Usually ships in 3-6 days

0

6

Honda 13229-890-003

BEARING E, CONNECTING ROD Use from Engine SN 1086090.

$

$

Not available

7

Honda 13281-890-000

DIPPER, CONNECTING ROD

Note: Use up to Engine SN 1041378.

$

$

Currently unavailable

7

Honda 13281-890-020

DIPPER, CONNECTING ROD (NOT AVAILABLE)

Note: Use from Engine SN 1041379 to 1050927.

$

$

Currently unavailable

8

Honda 13281-890-030

DIPPER, CONNECTING ROD (NOT AVAILABLE)

Note: Use from Engine SN 1050928 to 1086089.

$

$

Currently unavailable

9

Honda 13281-890-040

DIPPER, CONNECTING ROD

Note: Use from Engine SN 1086090.

$

$

Not available

10

Honda 90001-890-000

BOLT, CONNECTING ROD (8MM) (NOT AVAILABLE)

Note: Use up to Engine SN 1016894.

$

$

Currently unavailable

10

Honda 90001-890-020

BOLT, CONNECTING ROD (8MM) (NOT AVAILABLE)

Note: Use from Engine SN 1016895 to 1086089.

$

$

Currently unavailable

11

Honda 90001-890-040

BOLT, CONNECTING ROD (8MM)

Note: Use from Engine SN 1086090.

$

$

Not available

12

Honda 90501-947-000

WASHER, CONNECTING ROD

Note: Use up to Engine SN 1016894.

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90501-947-000

WASHER, LOCK (8MM)

Note: Use from Engine SN 1016895 to 1086089.

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90501-947-000

WASHER, LOCK (8MM)

Note: Use from Engine SN 1016895.

$0.99

$

Usually ships in 3-6 days

0

14

Honda 94601-19000

CLIP, PISTON PIN (19MM)

$0.99

$

Usually ships in 3-6 days

0
