ES3500 K1 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1100014 - ES3500-1129443) POINTS + IGNITION COIL Parts Diagram

Generator, Made in Japan

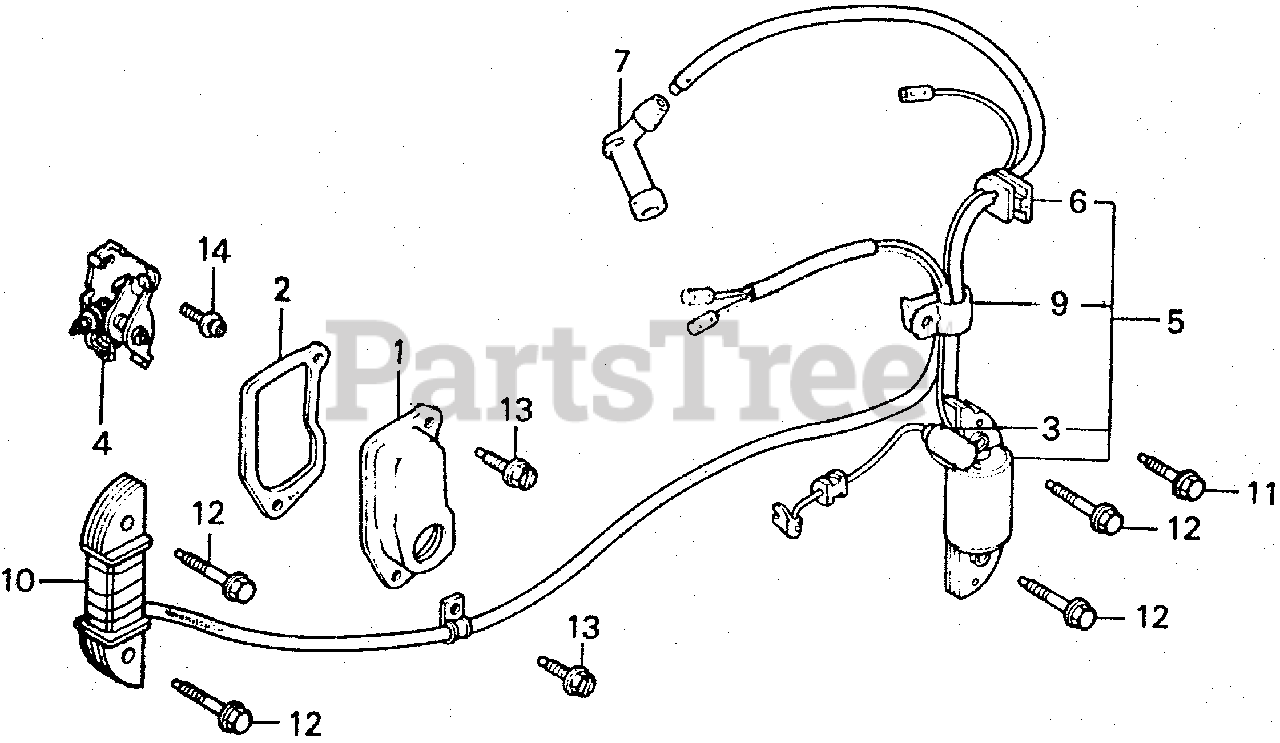

POINTS + IGNITION COIL Parts Diagram

  • Title

1

Honda 30211-890-000

COVER, BREATHER

$

$

Not available

2

Honda 30215-889-306

GASKET, COVER

$

$

Not available

3

Honda 30251-883-003

CONDENSER

Note: Use from Engine SN 1093987.

$24.99

$

In Stock, only 2 left!

0

4

Honda 30280-890-000

POINTS ASSY.

$30.99

$

Usually ships in 3-6 days

0

5

Honda 30560-890-801

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$

$

Not available

6

Honda 30563-890-003

GROMMET, WIRE

$7.49

$

Usually ships in 3-6 days

0

7

Honda 30700-890-000

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR
(Superseded to 30700-890-013)

Note: Use up to Engine SN 1078889.

$

$

Not available

7

Honda 30700-890-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

9

Honda 30702-890-000

CLAMP, IGNITION WIRE

$7.49

$

Usually ships in 3-6 days

0

10

Honda 31630-890-801

COIL ASSY., CHARGE (SILICON RECTIFIER)

$

$

Not available

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

12

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.99

$

In Stock, Qty 6

0

13

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0
