ES4500 A (ES4500) - Honda Generator, Made in Japan (SN: ES4500-1000005 - ES4500-1020560) FAN COVER + SIDE PLATE Parts Diagram

Generator, Made in Japan

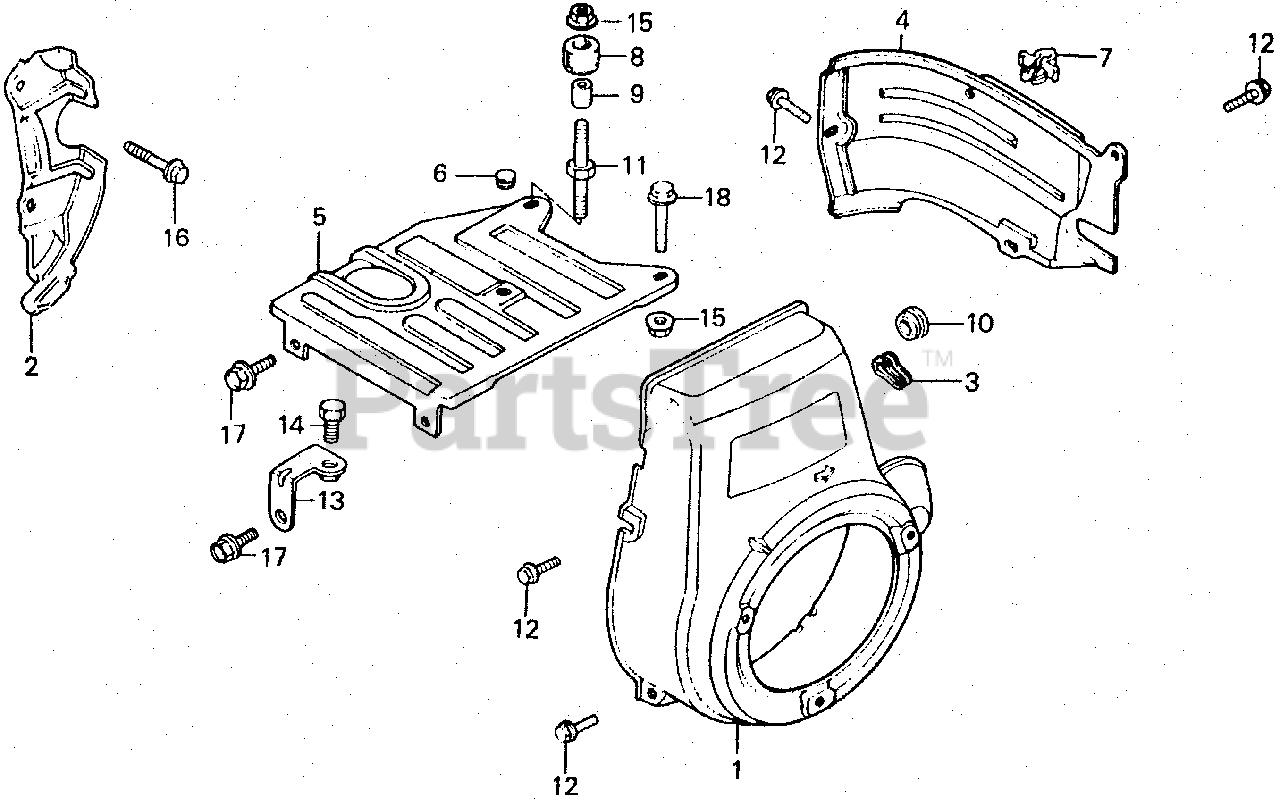

FAN COVER + SIDE PLATE Parts Diagram

  • Title

1

Honda 19610-890-801ZA

SEE PART DETAILS - PRI; COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

2

Honda 19611-890-800

PLATE, SIDE

$

$

Not available

3

Honda 19614-889-730

GROMMET, FAN COVER

$

$

Not available

4

Honda 19631-890-010ZA

SHROUD *R8* (BRIGHT RED)

$

$

Not available

5

Honda 19641-890-010H

SEE PART DETAILS - SUP; COVER, TOP *R8* (BRIGHT RED)

$

$

Currently unavailable

5

Honda 19641-890-010ZB

SEE PART DETAILS - PRI; COVER, TOP *R8* (BRIGHT RED)

$

$

Not available

6

Honda 19643-890-730

GROMMET, COVER

$

$

Not available

7

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.49

$

In Stock, only 1 left!

0

8

Honda 50318-839-000

RUBBER, STOPPER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 50319-839-000

COLLAR, DISTANCE

$3.99

$

Usually ships in 3-6 days

0

10

Honda 81329-567-020

GROMMET, DRAIN HOLE

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90001-880-010

BOLT, SPECIAL HEX.

$

$

Not available

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

15

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

16

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 4 left!

0

17

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$1.99

$

In Stock, Qty 6

0

18

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

Usually ships in 3-6 days

0
