ES4500 K1 A (500K1) - Honda Generator, Made in Japan (SN: ES4500K1-1100001 - ES4500K1-9999999) ES4500 CIRCUIT BREAKER + CONTROL UNIT K0-K1 Parts Diagram

Generator, Made in Japan

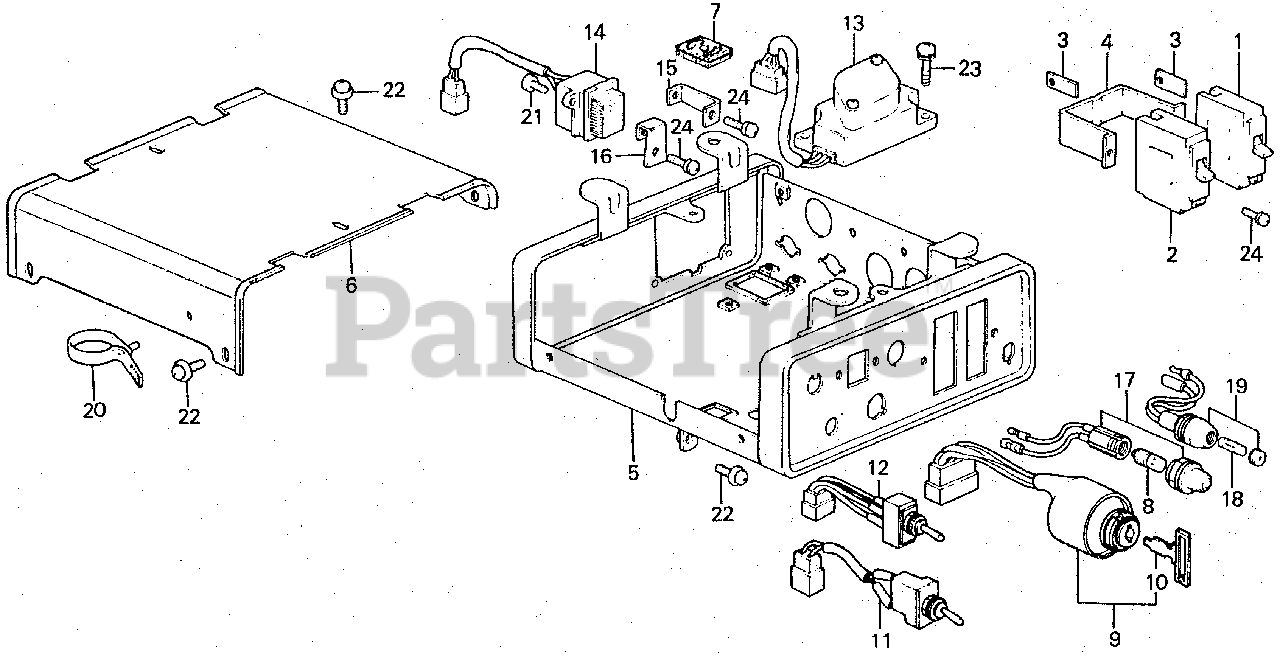

ES4500 CIRCUIT BREAKER + CONTROL UNIT K0-K1 Parts Diagram

  • Title

1

Honda 31411-893-680

BREAKER, CIRCUIT (18A) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 31412-893-680

BREAKER, CIRCUIT (37A)

$

$

Currently unavailable

3

Honda 31414-880-000

TERMINAL, BREAKER

$17.99

$

Usually ships in 3-6 days

0

4

Honda 31415-880-000

SUPPORT, BREAKER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 31450-893-671H

BOX, CONTROL *R8* (BRIGHT RED)

$

$

Not available

6

Honda 31455-893-010H

COVER, CONTROL BOX (UPPER) *R8* (BRIGHT RED)

Note: Use up to Frame SN 1105368.

$

$

Not available

6

Honda 31455-880-000H

COVER, BOX (UPPER) *R8* (BRIGHT RED)

Note: Use from Frame SN 1105369.

$

$

Not available

7

Honda 31483-880-670

GROMMET, REMOTE CONTROL

$

$

Not available

8

Honda 34909-880-000

BULB, DASH (24V-2W)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 35100-893-671

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

$

$

Not available

10

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY
(Superseded to 35111-880-013)

$10.99

$

In Stock, Qty 8

0

10

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY

$10.99

$

In Stock, Qty 8

0

11

Honda 35400-893-000

SWITCH ASSY., IDLE CONTROL (NOT AVAILABLE)

$57.99

$

Usually ships in 3-6 days

0

12

Honda 36130-893-670

SEE PART DETAILS - SUP; SWITCH ASSY., CONTROL

$

$

Currently unavailable

13

Honda 36210-893-013

CONTROL UNIT (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 37500-893-000

METER, FREQUENCY (NOT AVAILABLE)

$

$

Not available

15

Honda 37501-893-010

HOLDER A, FREQUENCY METER

$

$

Not available

16

Honda 37502-893-000

HOLDER B, FREQUENCY METER

$

$

Not available

17

Honda 37560-880-000

SEE PART DETAILS - SUP; SOCKET ASSY., PILOT LAMP
(Superseded to 37560-ZA0-003)

$31.99

$

Usually ships in 3-6 days

0

18

Honda 38201-880-000

SEE PART DETAILS - PRI; FUSE (15A)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 38210-893-000

HOLDER ASSY., FUSE

$

$

Not available

20

Honda 90669-671-003

STRAP B, CABLE (125MM) (BLUE)

$6.99

$

Usually ships in 3-6 days

0

21

Honda 93500-03008-0H

SCREW, PAN (3X8)

$0.99

$

In Stock, Qty 8

0

22

Honda 93891-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 2 left!

0

23

Honda 93891-06016-08

SCREW-WASHER (6X16)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93892-04012-08

SCREW-WASHER (4X12)

$0.99

$

Usually ships in 3-6 days

0
