ES4500 K1 A (500K1) - Honda Generator, Made in Japan (SN: ES4500K1-1100001 - ES4500K1-9999999) ES4500 STARTER MOTOR K1 Parts Diagram

Generator, Made in Japan

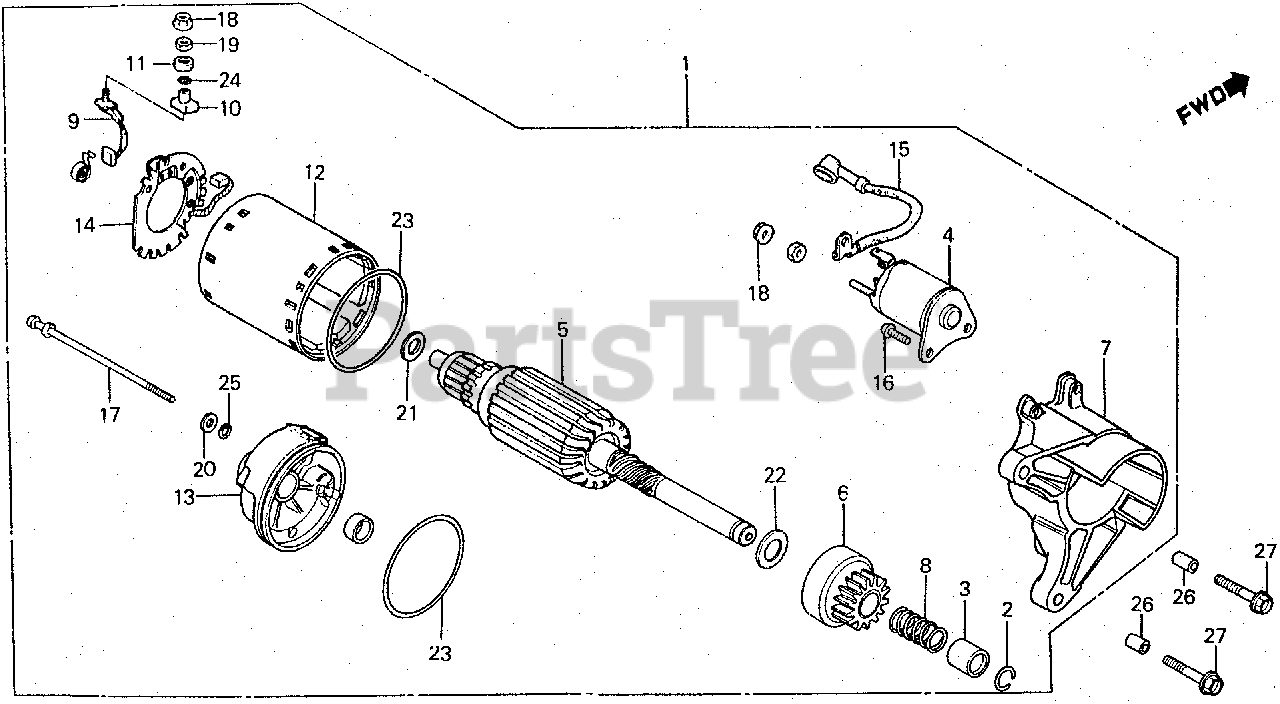

ES4500 STARTER MOTOR K1 Parts Diagram

  • Title

1

Honda 31200-ZA1-003

MOTOR ASSY., STARTER

Note: Use from Engine SN 1294568.

$678.99

$

Usually ships in 3-6 days

0

2

Honda 31201-ZA1-003

RING, SNAP

Note: Use from Engine SN 1294568.

$2.49

$

Usually ships in 3-6 days

0

3

Honda 31202-ZA1-003

COLLAR, CLUTCH STOP

Note: Use from Engine SN 1294568.

$17.99

$

Usually ships in 3-6 days

0

4

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY.

Note: Use from Engine SN 1294568.

$133.99

$

In Stock, only 1 left!

0

4

Honda 31204-ZA1-003

SEE PART DETAILS - SUP; CONTACTOR ASSY.
(Superseded to 31204-ZA0-003)

Note: Use from Engine SN 1294568.

$133.99

$

In Stock, only 1 left!

0

5

Honda 31206-ZA1-003

ARMATURE

Note: Use from Engine SN 1294568.

$192.99

$

Usually ships in 3-6 days

0

6

Honda 31207-ZA1-003

CLUTCH ASSY., OVERRUNNING

Note: Use from Engine SN 1294568.

$166.99

$

Usually ships in 3-6 days

0

7

Honda 31208-ZA1-003

HOUSING, DRIVE SIDE

Note: Use from Engine SN 1294568 to 1388992.

$

$

Not available

7

Honda 31208-ZA1-013

HOUSING, DRIVE SIDE

Note: Use from Engine SN 1388993.

$118.99

$

Usually ships in 3-6 days

0

8

Honda 31212-ZA0-700

SPRING, BRUSH

Note: Use from Engine SN 1294568.

$8.99

$

In Stock, only 1 left!

0

8

Honda 31212-ZA1-003

SPRING

Note: Use from Engine SN 1294568.

$5.99

$

Usually ships in 3-6 days

0

9

Honda 31215-ZA1-003

BRUSH

Note: Use from Engine SN 1294568 to 1388992.

$

$

Not available

9

Honda 31215-ZA1-013

BRUSH

Note: Use from Engine SN 1388993.

$12.99

$

In Stock, only 1 left!

0

10

Honda 31216-ZA1-003

BUSHING, INSULATION (NOT AVAILABLE)

Note: Use from Engine SN 1294568 to 1388992.

$

$

Currently unavailable

10

Honda 31216-ZA1-013

BUSH, INSULATION

Note: Use from Engine SN 1388993.

$7.49

$

Usually ships in 3-6 days

0

11

Honda 31217-ZA1-003

BUSHING, INSULATION

Note: Use from Engine SN 1294568 to 1388992.

$

$

Not available

11

Honda 31217-ZA1-013

BUSH, INSULATION

Note: Use from Engine SN 1388993.

$12.99

$

Usually ships in 3-6 days

0

12

Honda 31218-ZA1-003

YOKE

Note: Use from Engine SN 1294568 to 1388992.

$

$

Currently unavailable

12

Honda 31218-ZA1-013

YOKE

Note: Use from Engine SN 1388993.

$140.99

$

Usually ships in 3-6 days

0

13

Honda 31219-ZA1-003

FRAME, STARTER END

Note: Use from Engine SN 1294568 to 1388992.

$

$

Not available

13

Honda 31219-ZA1-013

FRAME, STARTER END

Note: Use from Engine SN 1388993.

$58.99

$

Usually ships in 3-6 days

0

14

Honda 31206-HA0-004

SEE PART DETAILS - SUP; PLATE, BRUSH HOLDER
(Superseded to 31231-ZA1-003)

Note: Use from Engine SN 1294568.

$29.99

$

In Stock, only 1 left!

0

15

Honda 31232-ZA1-013

WIRE, WATER COVER

Note: Use from Engine SN 1294568.

$66.99

$

Usually ships in 3-6 days

0

16

Honda 90101-ZA1-003

SEE PART DETAILS - SUP; BOLT

Note: Use from Engine SN 1294568.

$

$

Not available

17

Honda 90102-ZA1-003

BOLT, THROUGH (NOT AVAILABLE)

Note: Use from Engine SN 1294568.

$

$

Not available

18

Honda 90201-ZA1-003

NUT

Note: Use from Engine SN 1294568.

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90202-ZA1-003

NUT

Note: Use from Engine SN 1294568.

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90401-ZA1-003

WASHER, STEEL PLATE

Note: Use from Engine SN 1294568.

$

$

Currently unavailable

21

Honda 90402-ZA1-003

SEE PART DETAILS - SUP; WASHER

Note: Use from Engine SN 1294568.

$

$

Currently unavailable

22

Honda 90403-ZA1-003

WASHER

Note: Use from Engine SN 1294568.

$2.99

$

Usually ships in 3-6 days

0

23

Honda 31212-HA0-682

O-RING

Note: Use from Engine SN 1294568.

$

$

Not available

24

Honda 91302-ZA1-003

O-RING

Note: Use from Engine SN 1294568 to 1388992.

$

$

Not available

24

Honda 91302-ZA1-013

O-RING

Note: Use from Engine SN 1388993.

$2.49

$

Usually ships in 3-6 days

0

25

Honda 91303-ZA1-003

O-RING

Note: Use from Engine SN 1294568.

$3.49

$

Usually ships in 3-6 days

0

26

Honda 94301-10160

PIN, DOWEL (10X16)

Note: Use from Engine SN 1294568.

$2.99

$

In Stock, only 3 left!

0

27

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

Note: Use from Engine SN 1294568.

$1.99

$

Usually ships in 3-6 days

0
