ES4500 K1 A (500K1) - Honda Generator, Made in Japan (SN: ES4500K1-1100001 - ES4500K1-9999999) ES4500 WIRE HARNESS + RECEPTACLE K0-K1 Parts Diagram

Generator, Made in Japan

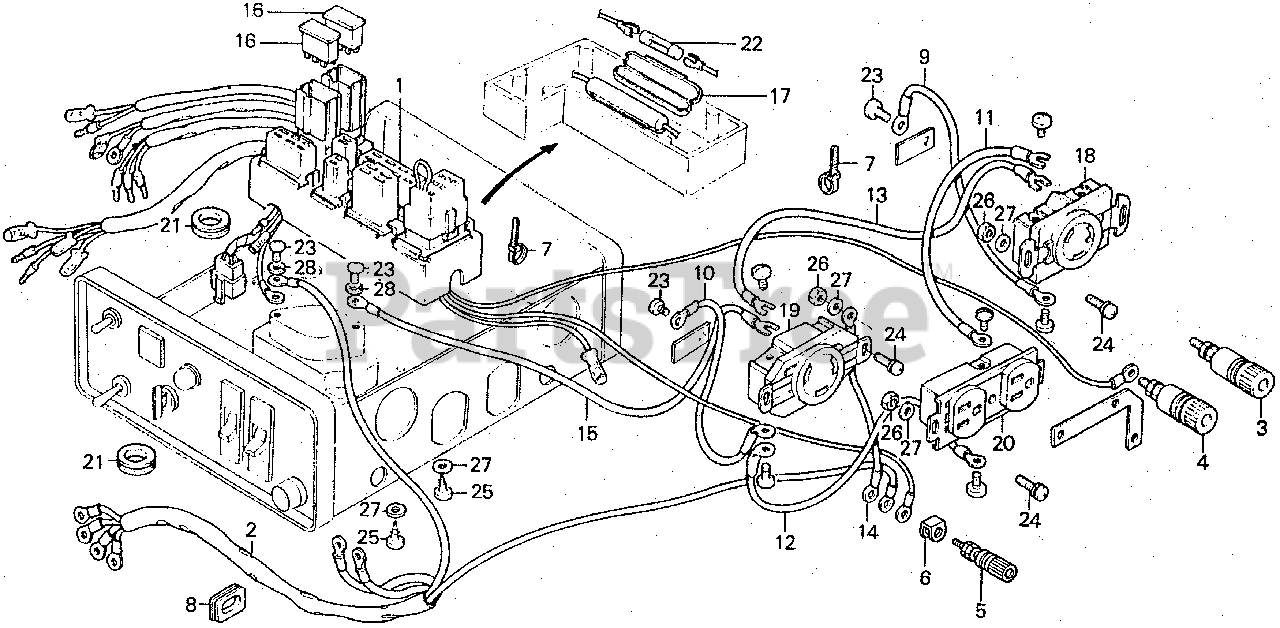

ES4500 WIRE HARNESS + RECEPTACLE K0-K1 Parts Diagram

  • Title

1

Honda 31404-893-671

WIRE HARNESS (NOT AVAILABLE)

Note: Use up to Frame SN 1124381.

$

$

Currently unavailable

1

Honda 31404-893-672

WIRE HARNESS

Note: Use from Frame SN 1124382.

$

$

Currently unavailable

2

Honda 31405-893-681

WIRE, A.C. OUTLET

$

$

Not available

3

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$53.99

$

Usually ships in 3-6 days

0

4

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$53.99

$

Usually ships in 3-6 days

0

5

Honda 31428-880-000

SEE PART DETAILS - PRI; TERMINAL ASSY., GROUND (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 31429-893-003

PLATE, GROUND

$

$

Not available

7

Honda 31431-893-003

CLAMP, WIRE HARNESS

$

$

Not available

8

Honda 31481-880-000

GROMMET, A.C. WIRE

$8.49

$

Usually ships in 3-6 days

0

9

Honda 31561-893-681

WIRE, RECEPTACLE CIRCUIT BREAKER CONNECTING (200V)

$

$

Currently unavailable

10

Honda 31562-893-681

WIRE, RECEPTACLE CIRCUIT BREAKER CONNECTING (100V)

$

$

Not available

11

Honda 31563-893-681

WIRE, RECEPTACLE CONNECTING (100V-200V)

$

$

Not available

12

Honda 31564-893-681

WIRE, RECEPTACLE CONNECTING

$

$

Not available

13

Honda 31566-893-681

WIRE, RECEPTACLE CONNECTING (100V-200V)

$

$

Currently unavailable

14

Honda 31571-893-681

WIRE, GROUND

$

$

Not available

15

Honda 31572-893-681

WIRE, IDLE CONTROL UNIT CONNECTING (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 31710-893-003

STACK ASSY., DIODE (2.7A)
(Superseded to 06317-ZA0-000)

$126.99

$

In Stock, only 1 left!

0

17

Honda 32111-230-000

CASE, FUSE CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

18

Honda 32331-880-710

RECEPTACLE (20A 250V) (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$53.99

$

In Stock, only 1 left!

0

20

Honda 32333-880-680

SEE PART DETAILS - PRI; RECEPTACLE (15A-125V)

$93.99

$

Usually ships in 3-6 days

0

21

Honda 36043-657-000

SEE PART DETAILS - SUP; GROMMET, WIRE HARNESS
(Superseded to 36037-657-000)

$10.99

$

Usually ships in 3-6 days

0

22

Honda 38201-846-601

FUSE (5A)

$

$

Currently unavailable

23

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93892-04012-08

SCREW-WASHER (4X12)

$0.99

$

In Stock, Qty 10

0

25

Honda 93901-24320

SCREW, TAPPING (4X12)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94001-04080-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94111-05000

WASHER, SPRING (5MM)

$1.99

$

Usually ships in 3-6 days

0
