ES6500 K1 AR (EA1) - Honda Generator, Made in Japan (SN: EA1-1000005 - EA1-1099999) CARBURETOR (3) Parts Diagram

Generator, Made in Japan

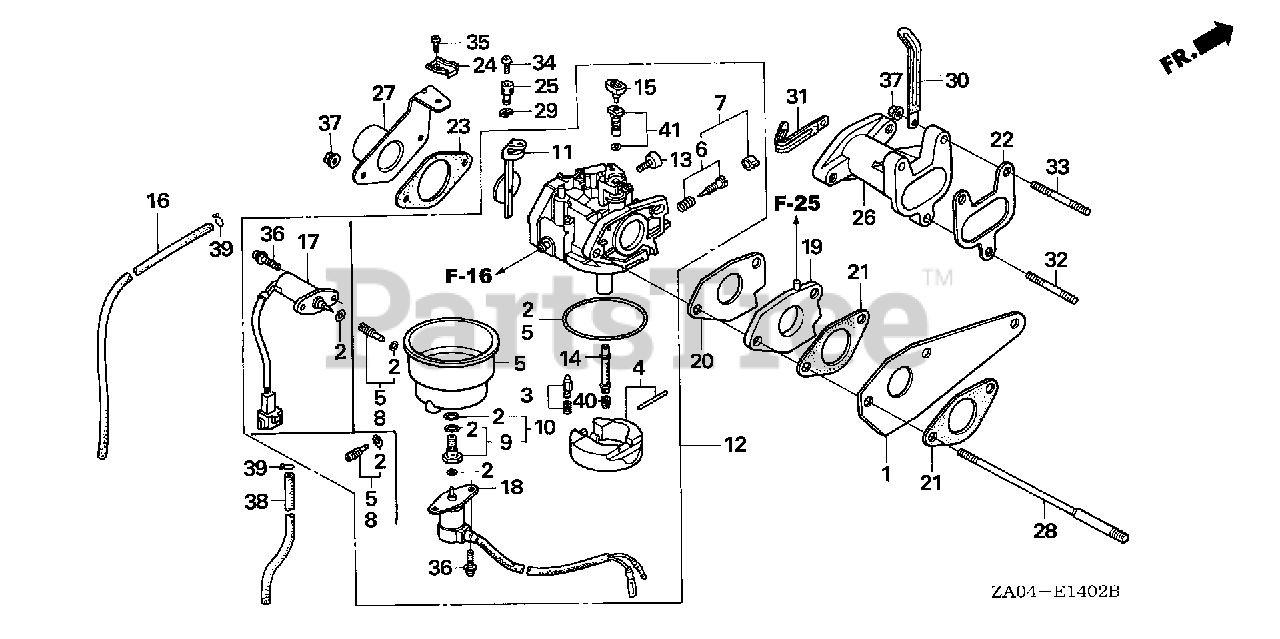

CARBURETOR (3) Parts Diagram

  • Title

1

Honda 11815-ZA0-930

STAY, TIMING BELT

$15.99

$

Usually ships in 3-6 days

0

2

Honda 16010-ZA0-931

GASKET SET (CARBURETOR NO.)

$20.99

$

In Stock, only 1 left!

0

3

Honda 16011-ZA0-931

VALVE SET, FLOAT

$40.99

$

In Stock, only 2 left!

0

4

Honda 16013-ZA0-931

FLOAT SET

$46.99

$

In Stock, only 1 left!

0

5

Honda 16015-ZA0-931

CHAMBER SET, FLOAT (CARBURETOR NO.)

$75.99

$

Usually ships in 3-6 days

0

6

Honda 16016-ZA0-931

SCREW SET, PILOT

$14.99

$

In Stock, only 1 left!

0

8

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$13.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZA0-931

SCREW SET (CARBURETOR NO.)

$25.99

$

In Stock, only 1 left!

0

11

Honda 16044-ZA0-932

SEE PART DETAILS - PRI; CHOKE SET

$

$

Not available

12

Honda 16100-ZA0-932

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE25A B)
(Superseded to 16100-ZA0-933)

Note: Use up to Engine SN 1132406.

$

$

Not available

12

Honda 16100-ZA0-933

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE25A C)

Note: Use up to Engine SN 1202457.

$

$

Not available

12

Honda 16100-ZA0-936

CARBURETOR ASSY. (SPECIAL)

Note: Use from Engine SN 1202458.

$

$

Not available

13

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$14.99

$

In Stock, only 2 left!

0

14

Honda 16166-ZA0-931

NOZZLE, MAIN

$31.99

$

Usually ships in 3-6 days

0

16

Honda 16199-ZA0-930

TUBE, AIR VENT

$11.99

$

Usually ships in 3-6 days

0

18

Honda 16200-ZE3-792

VALVE ASSY., SOLENOID (CARBURETOR NO.)

Note: Use from Engine SN BE25A D.

$

$

Not available

18

Honda 16200-890-005

VALVE ASSY., SOLENOID (CARBURETOR NO.)

Note: Use up to Engine SN BE25A C.

$

$

Not available

19

Honda 16210-ZA0-930

INSULATOR, CARBURETOR

$17.99

$

Usually ships in 3-6 days

0

20

Honda 16221-ZA0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZA0-800)

Note: Use up to Engine SN 1270384.

$2.49

$

In Stock, Qty 20+

0

20

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

21

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.49

$

In Stock, Qty 20+

0

22

Honda 16226-ZA0-800

GASKET, IN. MANIFOLD

$2.99

$

Usually ships in 3-6 days

0

23

Honda 16269-ZA0-800

GASKET, AIR CLEANER

$2.49

$

In Stock, Qty 10

0

24

Honda 16582-883-300

HOLDER, CONTROL CABLE

$3.99

$

In Stock, only 1 left!

0

25

Honda 16617-890-010

HOLDER, CABLE

$7.99

$

In Stock, only 1 left!

0

26

Honda 17100-ZA0-930

MANIFOLD, IN.

$68.99

$

Usually ships in 3-6 days

0

27

Honda 17214-ZA0-930

PIPE, AIR IN.

$17.99

$

Usually ships in 3-6 days

0

28

Honda 90042-ZA0-930

BOLT, STUD (8X100)

$8.49

$

Usually ships in 3-6 days

0

29

Honda 90605-230-000

CIRCLIP (5MM)

$3.99

$

In Stock, only 4 left!

0

30

Honda 91406-671-000

CLIP, WIRE HARNESS

$20.99

$

Usually ships in 3-6 days

0

31

Honda 91410-679-000

CLIP (2X60)

$14.99

$

Usually ships in 3-6 days

0

32

Honda 92900-06018-0B

BOLT, STUD (6X18)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 92700-06035

BOLT, STUD (6X35)

$2.49

$

Usually ships in 3-6 days

0

33

Honda 92900-06028-0B

BOLT, STUD (6X28)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

35

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 9

0

36

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, Qty 5

0

37

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 12

0

38

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X300)

$51.99

$

In Stock, Qty 7

0

39

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

40

Honda 99101-124-0880

JET, MAIN (#88)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

40

Honda 99101-124-0900

JET, MAIN (#90)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

40

Honda 99101-124-0920

JET, MAIN (#92)

$10.99

$

Usually ships in 3-6 days

0

41

Honda 99204-ZA0-0400

JET SET, PILOT (#40)

$21.99

$

Usually ships in 3-6 days

0
