ES6500 K1 AR (EA1) - Honda Generator, Made in Japan (SN: EA1-1000005 - EA1-1099999) FUEL TANK (1) Parts Diagram

Generator, Made in Japan

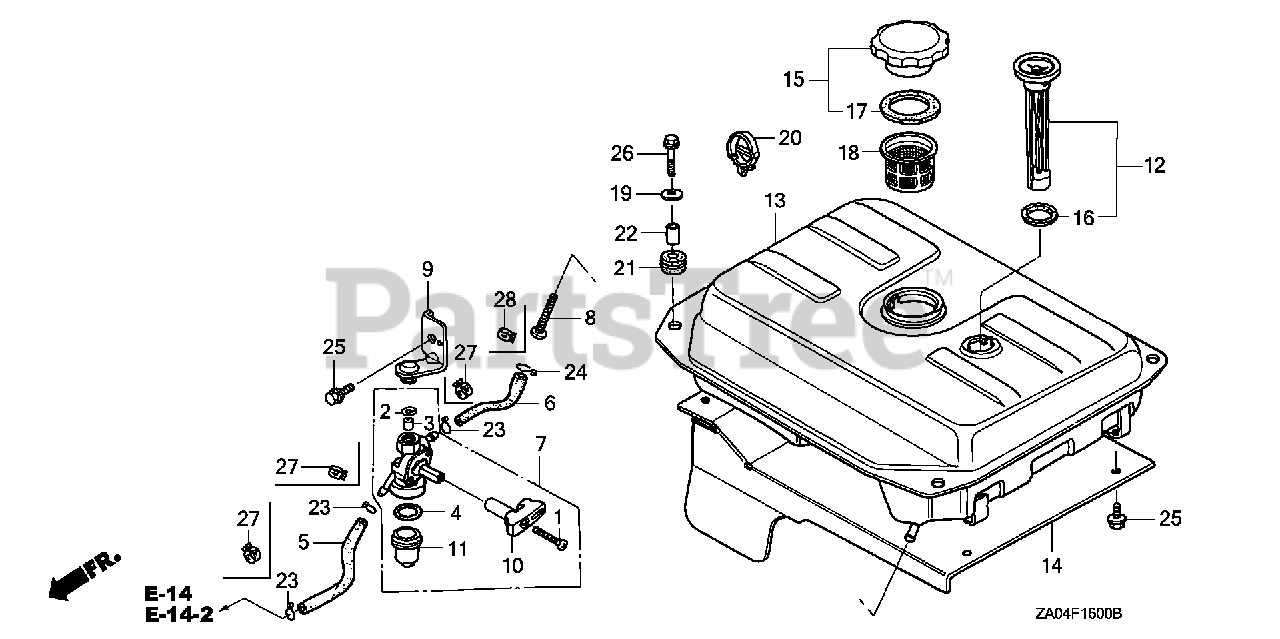

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16080-191-005

SCREW, OVAL (4X32)

$6.99

$

Usually ships in 3-6 days

0

4

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$8.49

$

In Stock, Qty 12

0

5

Honda 16851-ZA0-010

TUBE, CARBURETOR FUEL

$5.99

$

In Stock, only 2 left!

0

6

Honda 16852-ZA0-010

SEE PART DETAILS - PRI; TUBE, FUEL TANK

$4.49

$

In Stock, only 1 left!

0

7

Honda 16950-ZA0-003

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-ZA0-023)

Note: Use up to Frame SN 1037489.

$117.99

$

In Stock, only 1 left!

0

7

Honda 16950-ZA0-013

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Not available

7

Honda 16950-ZA0-023

SEE PART DETAILS - PRI; PETCOCK ASSY.

$117.99

$

In Stock, only 1 left!

0

8

Honda 16952-ZA0-000

FILTER, FUEL

$18.99

$

In Stock, only 2 left!

0

9

Honda 16956-ZA0-010

STAY, PETCOCK

$16.99

$

In Stock, only 1 left!

0

10

Honda 16963-191-005

LEVER, PETCOCK

$20.99

$

Usually ships in 3-6 days

0

11

Honda 16967-MA2-771

CUP, FUEL STRAINER

$38.99

$

Usually ships in 3-6 days

0

12

Honda 17505-898-623

METER, FUEL

$

$

Not available

13

Honda 17510-ZA0-000ZB

TANK, FUEL *R280* (POWER RED)

$

$

Not available

14

Honda 17515-ZA0-010

PROTECTOR, FUEL TANK HEAT

$

$

Not available

15

Honda 17620-899-003

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-899-013)

Note: Use up to Frame SN 1022531.

$

$

Not available

15

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-899-023)

$47.99

$

In Stock, only 2 left!

0

16

Honda 17624-187-020

GASKET C, FUEL METER

$

$

Not available

17

Honda 17631-VM6-300

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

Note: Use up to Frame SN 1022531.

$9.49

$

In Stock, Qty 12

0

17

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$9.49

$

In Stock, Qty 12

0

18

Honda 17672-899-000

FILTER, FUEL

$20.99

$

In Stock, only 2 left!

0

19

Honda 90503-898-000

WASHER, TANK CUSHION

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90684-ZA0-601

CLIP, HARNESS

$5.49

$

In Stock, only 1 left!

0

21

Honda 90851-898-000

RUBBER, TANK CUSHION

$6.49

$

Usually ships in 3-6 days

0

22

Honda 91551-898-000

COLLAR, TANK CUSHION

$6.49

$

Usually ships in 3-6 days

0

23

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

24

Honda 95002-02100

CLIP, TUBE (B10)

$2.99

$

In Stock, Qty 20+

0

25

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-00)

$2.49

$

In Stock, Qty 20+

0

25

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-06022-00

BOLT, FLANGE (6X22)

$2.99

$

In Stock, only 3 left!

0
