ESB 17 - Weed Eater String Trimmer, Electric Electric Trimmer Assembly Parts Diagram

String Trimmer, Electric

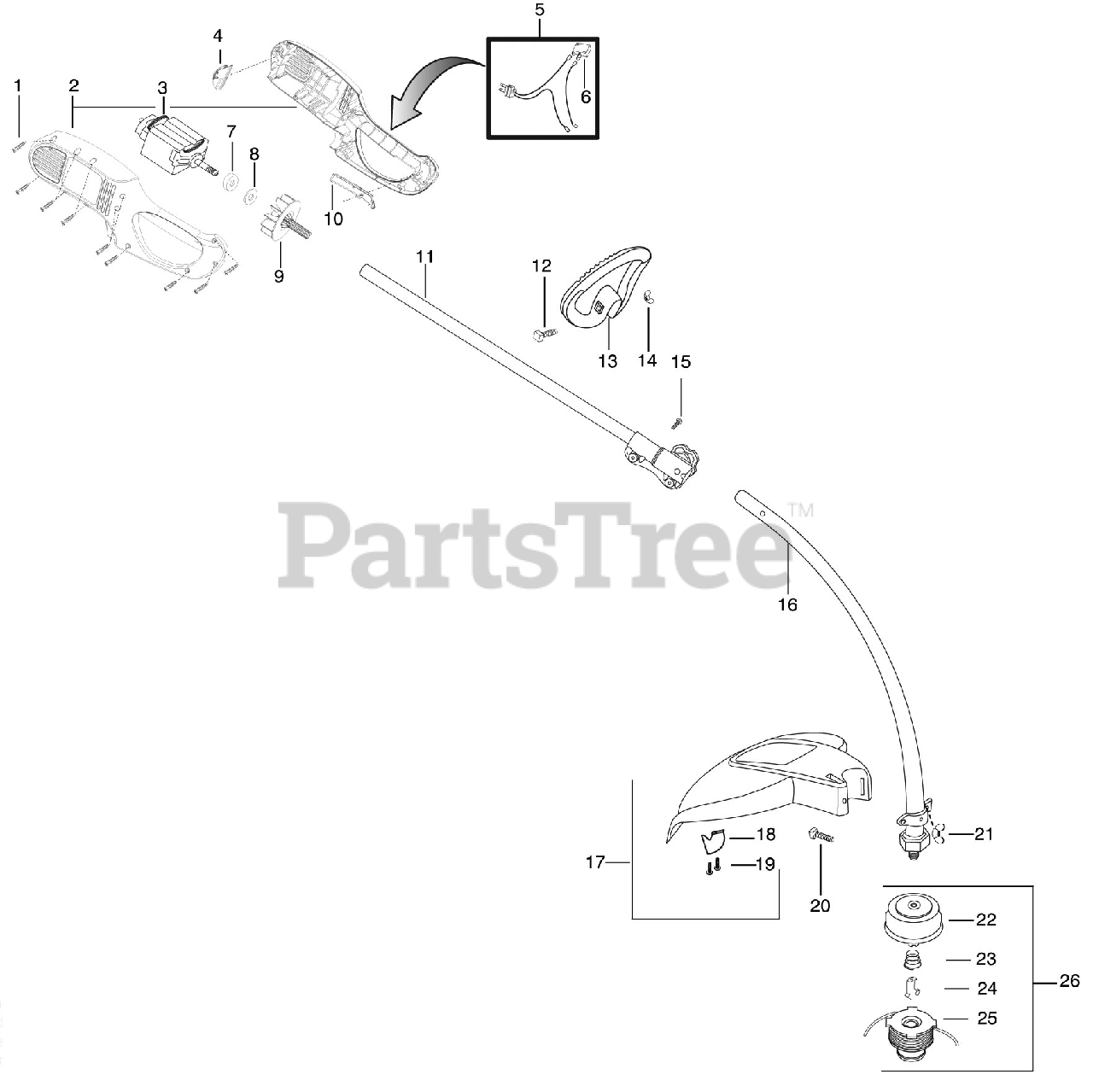

Electric Trimmer Assembly Parts Diagram

  • Title

1

Poulan 530016120

Screw (Qty. 12)

$3.99

$

In Stock, Qty 10

0

2

Poulan 545013802

Assy-Housing Set w/decal

$24.99

$

Usually ships in 3-10 days

0

3

Poulan 530404326

Assy-Motor

$

$

Not available

4

Poulan 530404385

Retainer-Cord

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 545126701

Assy-Wire Harness

Note: (Incl. #6)

$9.99

$

Usually ships in 3-10 days

0

6

Poulan 530404396

Switch-Momentary

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530404165

Spacer

$

$

Not available

8

Poulan 530400897

Washer

$

$

Not available

9

Poulan 530404327

Fan-Cooling

$

$

Not available

10

Poulan 530404325

Trigger-Switch

$

$

Not available

11

Poulan 530071965

Kit-Upper shaft w/decal

Note: (Incl. #15)

$

$

Not available

12

Poulan 530015786

Bolt-Handle

$4.99

$

In Stock, only 4 left!

0

13

Poulan 530058583

Assy-Handle

Note: (Incl. 12,14)

$8.99

$

Usually ships in 3-10 days

0

14

Poulan 530016152

Wing nut
(Superseded to 530401992)

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530016381

Screw

$3.49

$

Usually ships in 3-10 days

0

16

Poulan 530071788

Kit-Lower Shaft

$66.99

$

In Stock, only 1 left!

0

17

Poulan 545014101

Kit-Shield

Note: (Incl. decal, 18,19)

$21.99

$

Usually ships in 3-10 days

0

18

Poulan 530052286

Limiter-Line

$

$

Not available

19

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

20

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 530095776

Assy-Hub w/arbor
(Superseded to 530071306)

Note: (Incl. 23,24)

$

$

Not available

23

Poulan 530053241

Spring-Return

$

$

Not available

24

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, Qty 8

0

25

Poulan 952711616

Accy-Wound Spool

$

$

Not available

26

Poulan 952711621

Accy-TNG VI Head

Note: (Incl. 22,23,24,25)

$

$

Not available

Poulan 545212850

Manual - Operator

Note: Not Shown

$1.49

$

Usually ships in 3-10 days

0

Poulan 530095894

Attachment - Hanger

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

Poulan 545003369

Decal - Model Warning

Note: Not Shown

$

$

Not available

Poulan 530150181

Decal - Shaft Warning

Note: Not Shown

$

$

Not available

Poulan 530056220

Decal - Shaft Warning
(Superseded to 545209101)

Note: Not Shown

$

$

Not available
