ESPV 21 (7800064) - Snapper 21" Walk-Behind Mower, 6.5hp FRONT WHEELS Parts Diagram

21" Walk-Behind Mower, 6.5hp

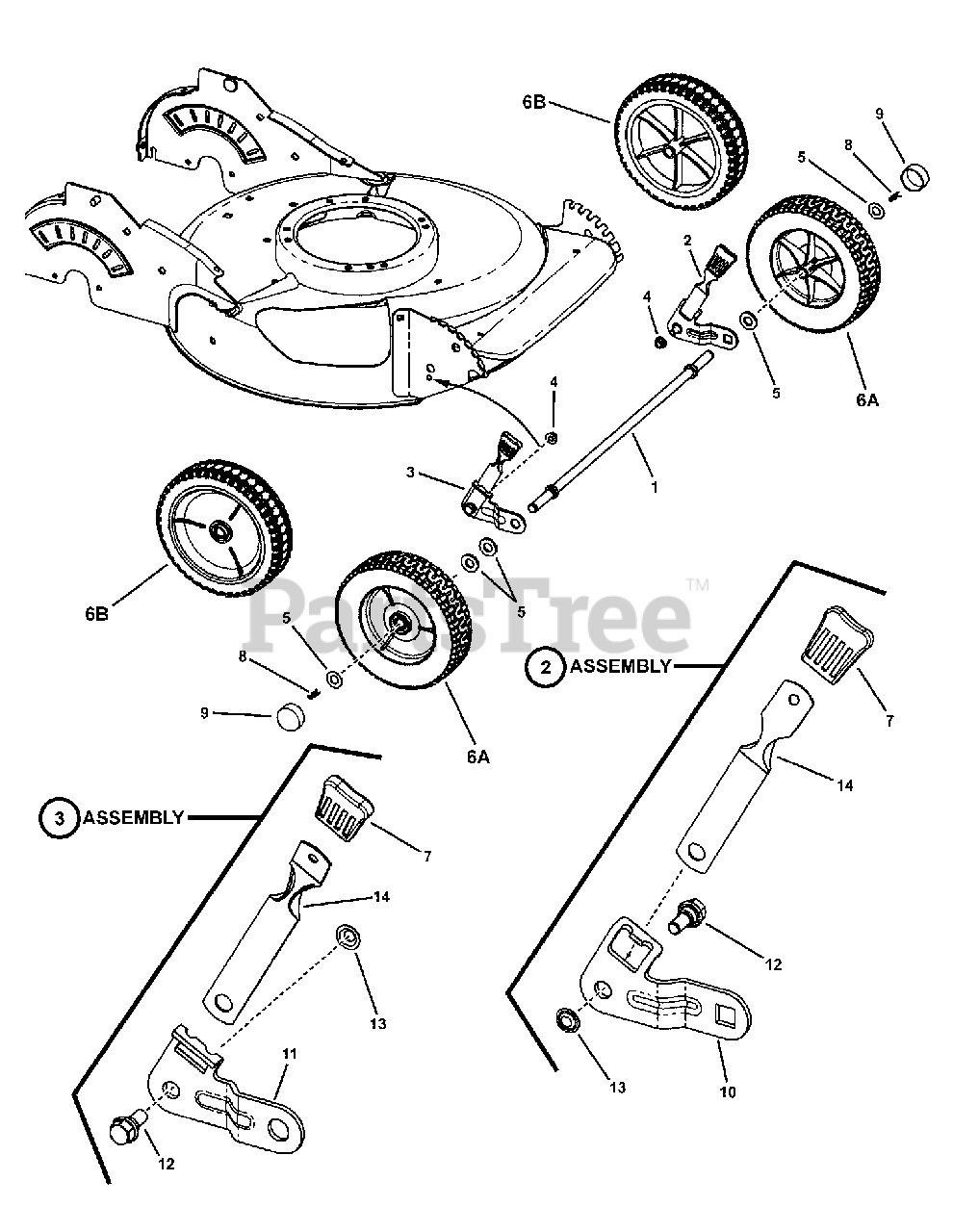

FRONT WHEELS Parts Diagram

  • Title

1

Snapper 7011392

AXLE, Front, Low Cost Walk Mower, 21
(Superseded to 7011392YP)

$49.99

$

Usually ships in 2-12 days

0

2

Snapper 7500038

ASSEMBLY, Front Wheel Arm, L. H.
(Superseded to 7600183YP)

$15.99

$

Usually ships in 2-12 days

0

3

Snapper 7051886

ASSEMBLY, Front Wheel Arm, R. H.
(Superseded to 7600180YP)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7100585

WASHER, Shim, .875 x .531 x .060
(Superseded to 703835)

$4.49

$

In Stock, Qty 13

0

6A

Snapper 7100015

WHEEL, Front, 8", LS Tread, 1-5/8" Hub
(Superseded to 7101127YP)

$41.99

$

Usually ships in 2-12 days

0

6B

Snapper 7101105

WHEEL, Front, 8 x 2, Double Bar II Tread, 1-5/8" Hub w/bushing
(Superseded to 7101127YP)

Note: Euro rim

$41.99

$

Usually ships in 2-12 days

0

7

Snapper 7100633

GRIP, Height Latch - Black (1.3" Wide)
(Superseded to 7103793YP)

Note: replaces 7027702 (voided)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7091193

COTTER, Hairpin
(Superseded to 7091193YP)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 7100088

HUB CAP, 1-3/8" Dia.
(Superseded to 020107MA)

Note: black

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7011393

FRONT WHEEL ARM, L.H. (Square Hole)
(Superseded to 7011393YP)

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7031017

FRONT WHEEL ARM, R.H. (Round Hole)
(Superseded to 7031017YP)

$14.99

$

Usually ships in 2-12 days

0

12

Snapper 7015761

SHOULDER BOLT, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, Qty 6

0

13

Snapper 7011791

BOLT RETAINER, 5/16- Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7012325

HEIGHT LATCH V21
(Superseded to 7012325YP)

$5.99

$

In Stock, Qty 16

0
