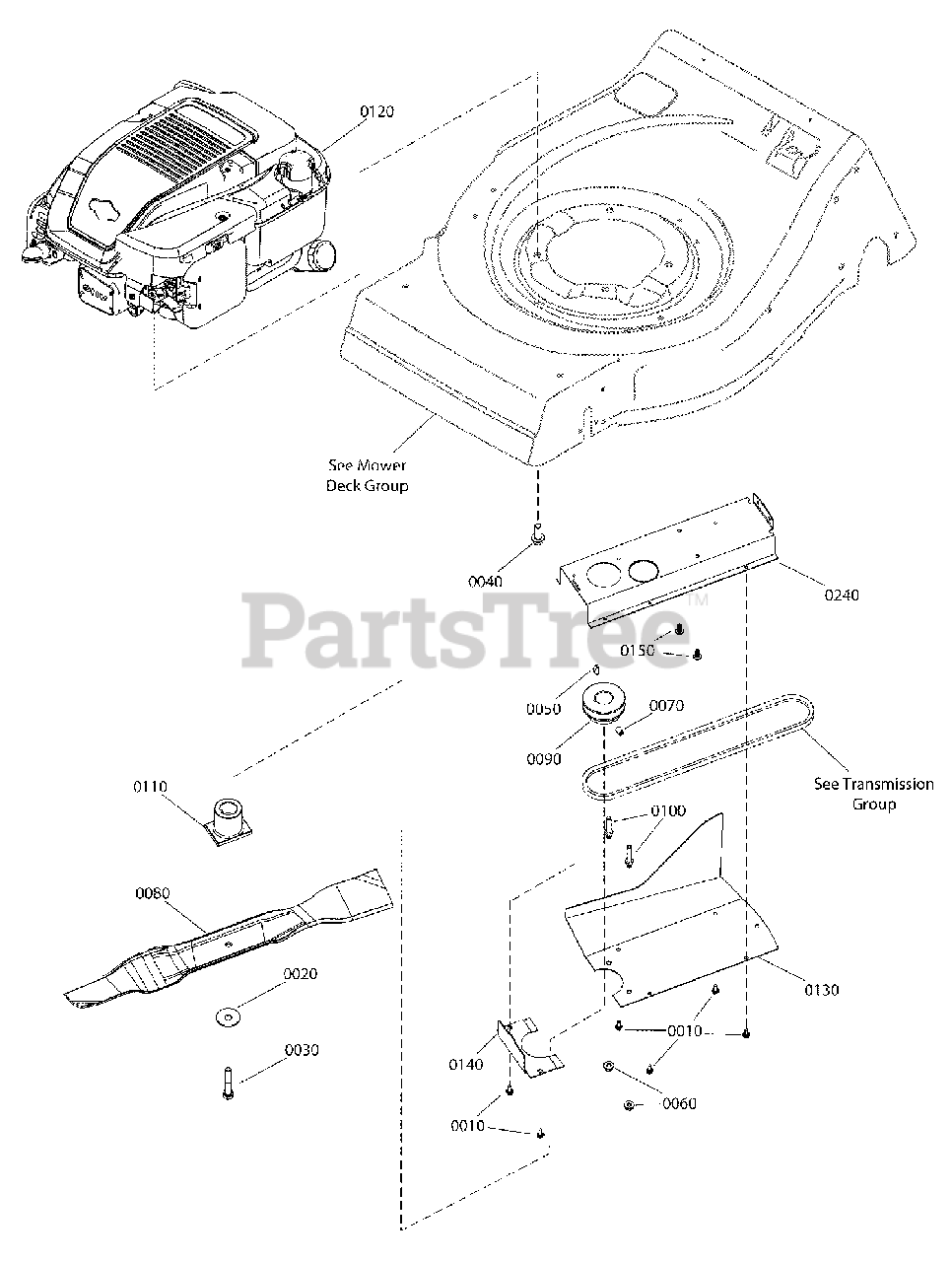

ESPV 21675 (7800688) - Snapper 21" Walk-Behind Mower, 6.75hp Engine Group Parts Diagram

21" Walk-Behind Mower, 6.75hp

Engine Group Parts Diagram

  • Title

0010

Snapper 26X259MA

SCREW, #10 x 1/2, AB, w/Washer

$4.49

$

In Stock, only 4 left!

0

0020

Snapper 703963

WASHER, 13/32x1-13/32" Dia. Cone

$6.99

$

In Stock, only 3 left!

0

0030

Snapper 703999

SCREW, 3/8-24 x 2 Hex Head Cap, GR 5
(Superseded to 7090167SM)

$

$

Not available

0040

Snapper 704000

SCREW, 3/8-16 x 1 Hex Washer Self-Tap

$5.49

$

In Stock, Qty 13

0

0050

Snapper 7091214YP

KEY, HI-PRO, .1875X.656, #605

$4.99

$

In Stock, Qty 7

0

0060

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0070

Snapper 704003

SCREW, 5/16-18 X .50, Hex Socket Head, Phosp/Oil

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 7100242BZYP

BLADE, Wave, 21 Steel Deck
(Superseded to 7100242AYP)

$29.99

$

In Stock, only 2 left!

0

0090

Snapper 7105122YP

PULLEY, Engine (25mm I. D. x 2-1/8 O.D.)

$43.99

$

In Stock, only 2 left!

0

0100

Snapper 7101313YP

BELT GUIDE, Engine, 21 RD (1/4-20 thread)

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper 7101414YP

HUB, Blade, 21 WBM, RD, 2 Position

$17.99

$

In Stock, only 3 left!

0

0120

Snapper 126T02-0180-B1

* ENGINE, B&S, 675 Series Euro, Mod. 126T02-0180-B1

Note: (used on 7800253 model)

$

$

Currently unavailable

0120

Snapper 126T02-0268-B1

* ENGINE, B&S, 675 Series Euro, Mod. 126T02-0268-B1

Note: (used on 7800688 model)

$

$

Not available

0120

Snapper 126T02-7268-H1

* ENGINE, B&S, 675 Series Euro QTM, Mod. 126T02-7268-H1

Note: (used on 7800871 model)

$

$

Not available

0130

Snapper 7300596DYP

COVER, Belt Guard

$33.99

$

Usually ships in 2-12 days

0

0150

Snapper 703961

SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear

$4.49

$

In Stock, Qty 15

0

0140

Snapper 7300724DYP

COVER, Belt
(Superseded to 7300724YP)

$11.99

$

Usually ships in 2-12 days

0

0240

Snapper 7300725DYP

GUARD, Belt

$26.99

$

Usually ships in 2-12 days

0
