ESPV 22675HW (7800872) - Snapper 22" Walk-Behind Mower, 6.75hp Handles Group Parts Diagram

22" Walk-Behind Mower, 6.75hp

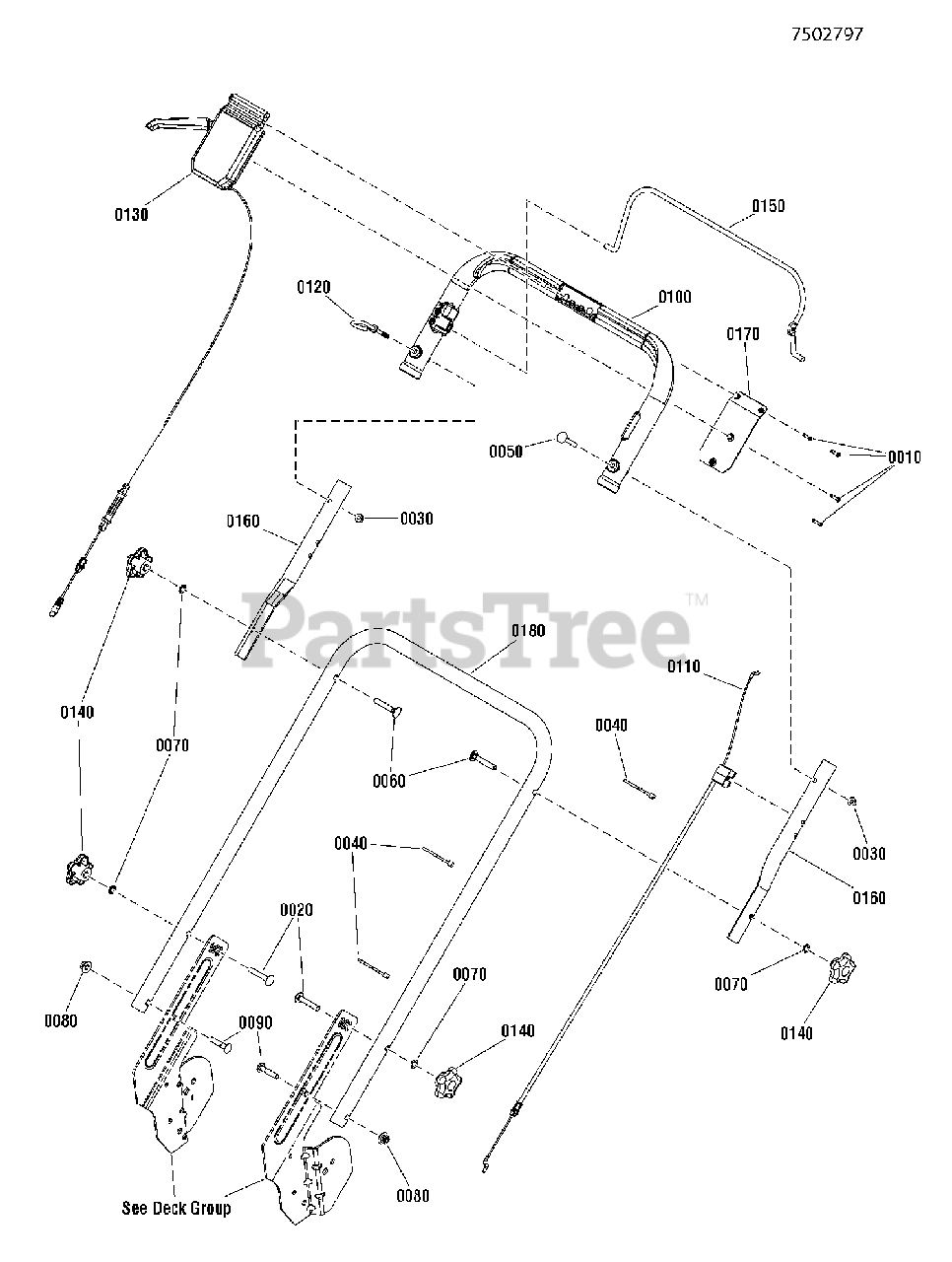

Handles Group Parts Diagram

  • Title

0010

Snapper 95050

SCREW, Pan Head, Thread Rolling
(Superseded to 691138)

$3.99

$

In Stock, Qty 14

0

0020

Snapper 1931338

BOLT, 5/16-18 x 1-3/4" Round Head Square Neck Carriage
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0030

Snapper 2860694

NUT, 1/4-20, Hex Flange Nyloc, YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0

0040

Snapper 7024649

WIRE TIE,11 Inch Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

0050

Snapper 7090015

BOLT, 1/4-20 x 1-3/4 Round Head Square Neck, GR 2
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

0060

Snapper 7091189

BOLT, 5/16-18 x 2 Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

0070

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 7090951

NUT, 5/16-18 Large Head Center Lock, Black
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

0090

Snapper 7090958

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck, GR 5
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

0100

Snapper 7101312

HANDLE, Plastic Upper, WBM
(Superseded to 7101312YP)

$128.99

$

In Stock, only 1 left!

0

0110

Snapper 7101395

CABLE, Bail, 22" Walk-Behind-Mower
(Superseded to 7101395YP)

$16.99

$

In Stock, only 3 left!

0

0120

Snapper 7101410

GUIDE, Rope (1/4-20 threads)
(Superseded to 7101410YP)

$6.49

$

In Stock, only 1 left!

0

0130

Snapper 7101415

ASSEMBLY, Control Head, 22" WBM, Variable Speed, Hi-Wheel
(Superseded to 7101415YP)

$

$

Not available

0140

Snapper 7105085

KNOB, Handle, 5 Prong (5/16-18 threads)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0150

Snapper 7101321BH

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0

0160

Snapper 7300649BH

HANDLE, Connecting, 21" / 22" WBM
(Superseded to 7300649BHYP)

$26.99

$

Usually ships in 2-12 days

0

0170

Snapper 7300670A

PLATE, Control Panel, Plastic Handle
(Superseded to 7300670AYP)

$

$

Not available

0180

Snapper 7301190BH

HANDLE, Lower, 1", 22" WBM, HW
(Superseded to 7301190BHYP)

$38.99

$

Usually ships in 2-12 days

0
