ESS 50220E (7800083) - Snapper 22" Snow Thrower, 5hp Frame and Fuel Tank Group Parts Diagram

22" Snow Thrower, 5hp

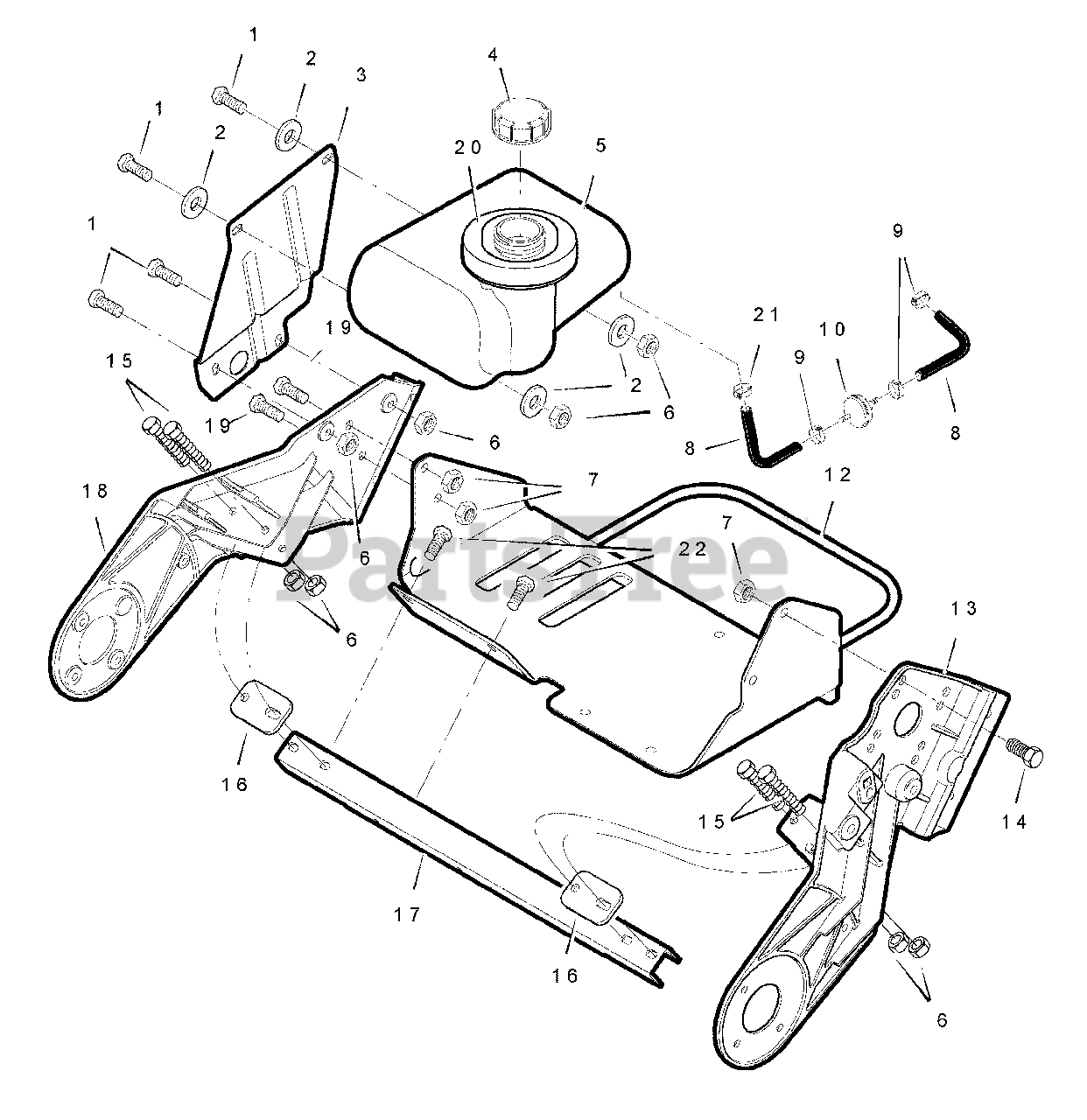

Frame and Fuel Tank Group Parts Diagram

  • Title

1

Snapper 723010

SCREW, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

2

Snapper 725330

WASHER, Flat 9/32 x 5/8 x .065
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

3

Snapper 1740031E701

BRACKET, Fuel Tank
(Superseded to 1740031E701MA)

$38.99

$

Usually ships in 2-12 days

0

4

Snapper 1715917

CAP, Fuel Tank
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 6

0

5

Snapper 1716634

TANK, Fuel
(Superseded to 1738435YP)

$237.99

$

Usually ships in 2-12 days

0

6

Snapper 725429

NUT, Hex 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 015X43

NUT, Hex 5/16-18

$

$

Currently unavailable

8

Snapper 722361

TUBING, Fuel Line
(Superseded to 1502028MA)

$8.49

$

In Stock, only 1 left!

0

9

Snapper 723462

CLAMP, Fuel Line
(Superseded to 323387MA)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 722264

FILTER, Fuel Line
(Superseded to 298090S)

$

$

Not available

12

Snapper 722304

CRADLE ASSEMBLY, Engine
(Superseded to 1501849E701MA)

$222.99

$

Usually ships in 2-12 days

0

13

Snapper 722321

Frame, Left Hand
(Superseded to 1501872E701MA)

$

$

Not available

14

Snapper 727291

SCREW, 5/16-18 x .63
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 727940

SCREW, 1/4-20 x 2.00
(Superseded to 180044MA)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 727517

PLATE, Mounting Support
(Superseded to 335351MA)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 722305

SUPPORT, Frame
(Superseded to 1501851MA)

$34.99

$

Usually ships in 2-12 days

0

18

Snapper 722320

FRAME, Right Hand
(Superseded to 1741988AYP)

$100.99

$

Usually ships in 2-12 days

0

19

Snapper 722633

SCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

20

Snapper 1740032

RING, Foam
(Superseded to 1740032MA)

$12.99

$

In Stock, only 1 left!

0

21

Snapper 724068

CLAMP, Fuel Line, Screw Type
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

22

Snapper 723210

SCREW, 1/4-20 x 5/8
(Superseded to 310169MA)

$4.49

$

In Stock, only 2 left!

0
