EST 48 (1697336-00) - Snapper 48V String Trimmer Trimmer (167336) Parts Diagram

48V String Trimmer

Trimmer (167336) Parts Diagram

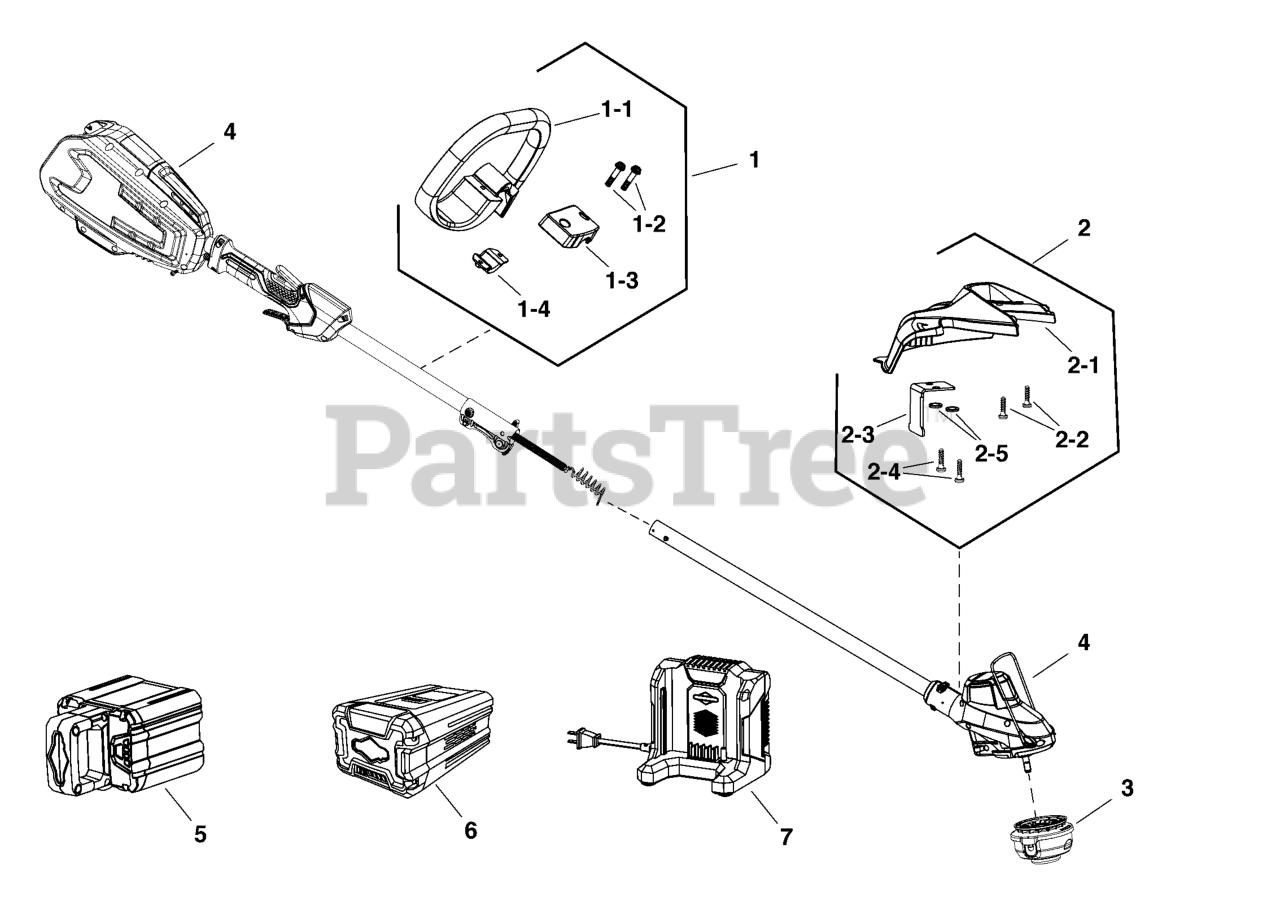

  • Title

1

Snapper 84006272

HANDLE ASSEMBLY

Note: (Includes Ref. Nos. 1-1 through 1-4)

$

$

Currently unavailable

1-1

HANDLE, Auxiliary

$

$

Not available

1-2

SCREW

$

$

Not available

1-3

COVER, Handle

$

$

Not available

1-4

CLAMP

$

$

Not available

2

Snapper 84006292

GUARD ASSEMBLY

Note: (Includes Ref. Nos. 2-1 through 2-5)

$

$

Currently unavailable

2-1

GUARD

$

$

Not available

2-2

SCREW

$

$

Not available

2-3

Snapper 84006293

BLADE, String

$

$

Currently unavailable

2-4

SCREW, Self Tapping

$

$

Not available

2-5

WASHER, Spring

$

$

Not available

3

Snapper 84001698

TRIMMER HEAD ASSEMBLY

$53.99

$

In Stock, only 1 left!

0

4

Snapper 1697336

* STRING TRIMMER, 48V

$

$

Currently unavailable

5

Snapper 1697337

* BATTERY, 2.0, 48V

Note: (Optional)

$

$

Currently unavailable

6

Snapper 1697338

* BATTERY, 5.0, 48V

Note: (Optional)

$

$

Currently unavailable

7

Snapper 1697339

* BATTERY CHARGER, 48V

Note: (Optional)

$

$

Currently unavailable
