ESV 25650B (7085913) - Snapper Walk-Behind Vacuum, 6.5hp DECALS Parts Diagram

Walk-Behind Vacuum, 6.5hp

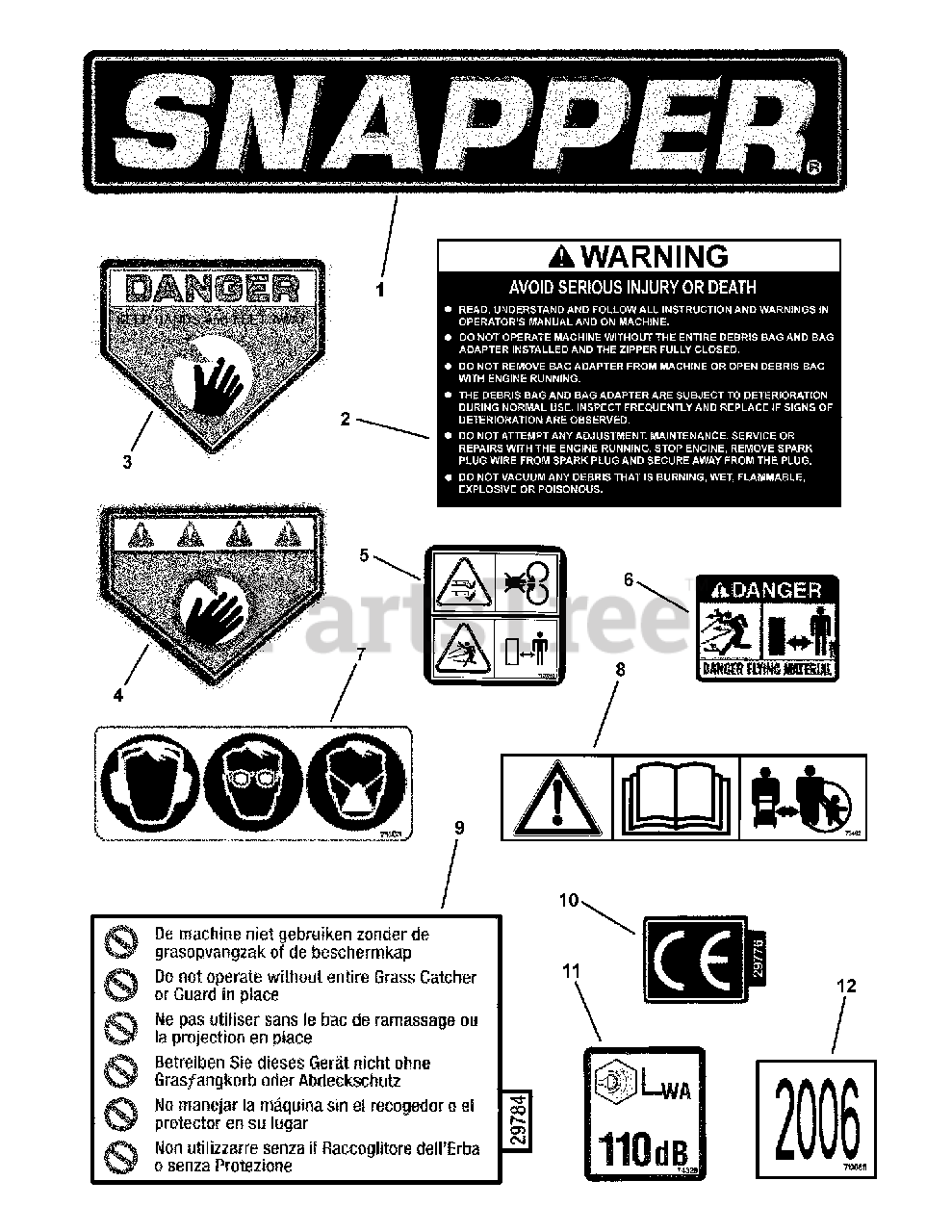

DECALS Parts Diagram

  • Title

1

Snapper 7071916

DECAL, SNAPPER
(Superseded to 1750913YP)

$12.99

$

In Stock, only 1 left!

0

2

Snapper 7075894

DECAL, Warning, Vacuum
(Superseded to 7075894YP)

$9.99

$

Usually ships in 2-12 days

0

3

Snapper 7013010

DECAL, Danger, Cut Finger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 20+

0

4

Snapper 7022841

DECAL, WARNING
(Superseded to 7022841SM)

Note: Euro models only

$72.99

$

In Stock, only 1 left!

0

5

Snapper 7100739

DECAL, Deck Symbols International
(Superseded to 7100739YP)

$11.99

$

In Stock, only 1 left!

0

6

Snapper 7075892

DECAL, Thrown Objects
(Superseded to 7075892YP)

$7.99

$

Usually ships in 2-12 days

0

7

Snapper 7075893

DECAL, Personal Protection
(Superseded to 7075893SM)

$

$

Not available

8

Snapper 7073462

DECAL, Caution Symbols
(Superseded to 7073462YP)

Note: Euro models only

$6.49

$

Usually ships in 2-12 days

0

9

Snapper 7029784

DECAL, DK/Chute INT'L Warning
(Superseded to 7029784SM)

Note: Euro models only

$5.99

$

Usually ships in 2-12 days

0

10

Snapper 7029776

DECAL, Euro Community (CE)
(Superseded to 7029776SM)

Note: Euro models only

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7074329

DECAL, SOUND 110
(Superseded to 7074329YP)

Note: Euro models only

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 7011279

DECAL, 2005 Year of Manufacture (not shown)
(Superseded to 7011279YP)

$5.99

$

Usually ships in 2-12 days

0

12

Snapper 7100611

DECAL, 2006 Year of Manufacture (shown)
(Superseded to 7100611SM)

$5.99

$

Usually ships in 2-12 days

0

Snapper 7050477

MANUAL, OPS, Leaf VAC

Note: Not shown

$

$

Currently unavailable

Snapper 7050467

MANUAL, OPS, Euro Leaf Vacuum

Note: Not shown, Euro models only

$

$

Currently unavailable

Snapper 7046287

MANUAL, Eng. B&S QUANT XM 98 EPA/CARB

Note: Not shown

$

$

Currently unavailable

Snapper 7046289

MANUAL, Eng. B&S QUANT EURO 98 EPA/CARB

Note: Not shown, Euro models only

$

$

Currently unavailable

Snapper 7078131

INSTRUCTION, Decal Placement - Vacuum

Note: Not shown

$

$

Currently unavailable

Snapper 7075965

INSTRUCTION Sheet, Vac Bag Sub Assy.

Note: Not shown

$

$

Currently unavailable

Snapper 7075966

INSTRUCTIONS, Vac Assy.

Note: Not shown

$

$

Currently unavailable

Snapper 7050471

DECLARATION of Conformity, ESV25650B

Note: Not shown, Euro models only

$

$

Currently unavailable

Snapper 1676946

WARRANTY, Limited Sheet

Note: Not shown

$

$

Currently unavailable
