ESXD 19SPWM82 (80076050) - Snapper XD 82V 19" Walk-Behind Mower Battery & Cover Group Parts Diagram

XD 82V 19" Walk-Behind Mower

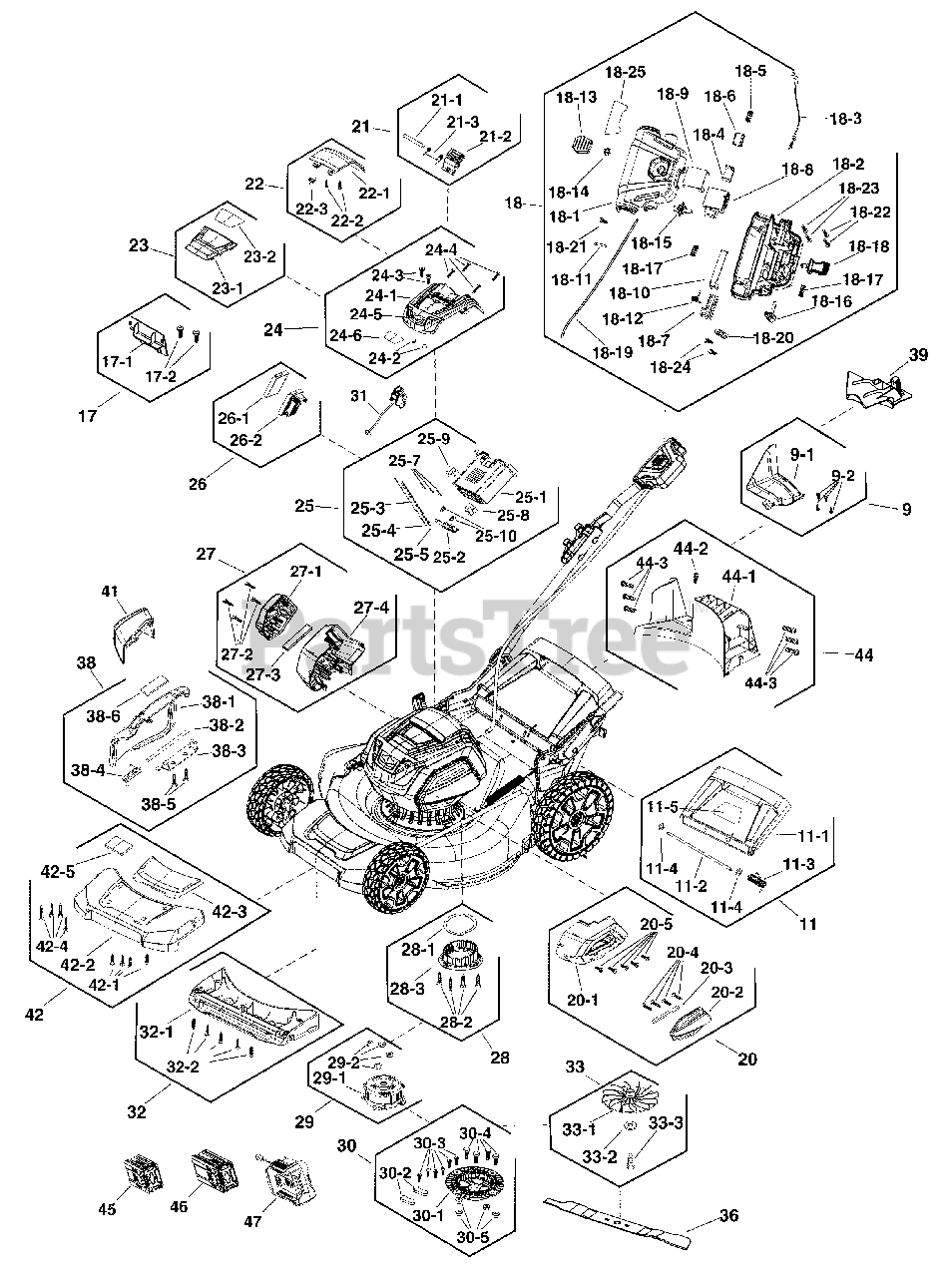

Battery & Cover Group Parts Diagram

  • Title

9

Snapper 771464

KIT, Transition

Note: (Includes Ref Nos 9-1 & 9-2)

$26.99

$

Usually ships in 2-12 days

0

9-1

CASING

$

$

Not available

9-2

SCREW ST4.2-12

$

$

Not available

11

Snapper 771427

KIT, Rear Cover

Note: (Includes Ref Nos 11-1 through 11-5)

$57.99

$

In Stock, only 1 left!

0

11-1

COVER, Rear

$

$

Not available

11-2

PIN

$

$

Not available

11-3

SPRING

$

$

Not available

11-4

WASHER, Split

$

$

Not available

11-5

DECAL, Warning

$

$

Not available

17

Snapper 771757

KIT, Cover

Note: (Includes Ref Nos 17-1 & 17-2)

$12.99

$

Usually ships in 2-12 days

0

17-1

COVER, PCB

$

$

Not available

17-2

SCREW ST4.2-12

$

$

Not available

18

Snapper 771755

KIT, Start Button

Note: (Includes Ref Nos 8-1 through 18-25)

$61.99

$

Usually ships in 2-12 days

0

18-1

COVER, Upper

$

$

Not available

18-2

COVER, Bottom

$

$

Not available

18-3

Snapper 84003402

CABLE, Bail

$5.99

$

Usually ships in 2-12 days

0

18-4

SLIDER

$

$

Not available

18-5

SPRING

$

$

Not available

18-6

SEAT, Fixed

$

$

Not available

18-7

SLIDER

$

$

Not available

18-8

Snapper 84003405

SWITCH

$11.99

$

Usually ships in 2-12 days

0

18-9

INSERT

$

$

Not available

18-10

PLATE

$

$

Not available

18-11

PIN

$

$

Not available

18-12

SPRING

$

$

Not available

18-13

Snapper 84003403

BUTTON, Start

$2.49

$

Usually ships in 2-12 days

0

18-14

SPRING

$

$

Not available

18-15

GASKET

$

$

Not available

18-16

LOCK

$

$

Not available

18-17

SPRING

$

$

Not available

18-18

SEAT, Fixed

$

$

Not available

18-19

HARNESS

$

$

Not available

18-20

CLAMP

$

$

Not available

18-21

SCREW

$

$

Not available

18-22

SCREW ST4.2*25

$

$

Not available

18-23

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

18-24

SCREW ST4.2-16

$

$

Not available

18-25

DECAL

$

$

Not available

20

Snapper 771443

KIT, Left Cover

Note: (Includes Ref Nos 20-1 through 20-5)

$40.99

$

Usually ships in 2-12 days

0

20-1

COVER, Left

$

$

Not available

20-2

HOUSING, Left

$

$

Not available

20-3

SCREEN, Dust

$

$

Not available

20-4

SCREW

$

$

Not available

20-5

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

21

Snapper 770202

KIT, Battery Release

Note: (Includes Ref Nos 21-1 through 21-3)

$4.99

$

Usually ships in 2-12 days

0

21-1

PIN

$

$

Not available

21-2

BUTTON

$

$

Not available

21-3

SPRING

$

$

Not available

22

Snapper 771439

KIT, Battery Cover

Note: (Includes Ref Nos 22-1 through 22-3)

$38.99

$

Usually ships in 2-12 days

0

22-1

COVER, Battery

$

$

Not available

22-2

SCREW

$

$

Not available

22-3

SPRING

$

$

Not available

23

Snapper 771599

KIT, Cover

Note: (Includes Ref Nos 23-1 & 23-2)

$8.49

$

Usually ships in 2-12 days

0

23-1

COVER

$

$

Not available

23-2

SHROUD

$

$

Not available

24

Snapper 771467

KIT, Top Cover

Note: (Includes Ref Nos 24-1 through 24-6)

$51.99

$

Usually ships in 2-12 days

0

24-1

COVER, Top

$

$

Not available

24-2

MAGNET

$

$

Not available

24-3

LABEL

$

$

Not available

24-4

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

24-5

B&S LOGO

$

$

Not available

24-6

LABEL

$

$

Not available

25

Snapper 771469

KIT, Battery Compartment

Note: (Includes Ref Nos 25-1 through 25-10)

$47.99

$

Usually ships in 2-12 days

0

25-1

HOUSING, Battery

$

$

Not available

25-2

TERMINAL

$

$

Not available

25-3

WIRE, Red

$

$

Not available

25-4

WIRE, Yellow

$

$

Not available

25-5

WIRE, Black

$

$

Not available

25-7

CONTACT

$

$

Not available

25-8

CONNECTOR

$

$

Not available

25-9

Snapper 84003412

MAGNET

$17.99

$

Usually ships in 2-12 days

0

25-10

SPRING

$

$

Not available

26

Snapper 771768

KIT, PCB

Note: (Includes Ref Nos 26-1 & 26-2)

$307.99

$

Usually ships in 2-12 days

0

26-1

Snapper 84003411

COVER, PCB

$3.99

$

Usually ships in 2-12 days

0

26-2

PCB

$

$

Not available

27

Snapper 770197

KIT, Cover, Right

Note: (Includes Ref Nos 27-1 through 27-4)

$49.99

$

Usually ships in 2-12 days

0

27-1

COVER, Right

$

$

Not available

27-2

SCREW

$

$

Not available

27-3

SCREEN, Dust

$

$

Not available

27-4

COVER, Right

$

$

Not available

28

Snapper 771766

KIT, Base

$34.99

$

Usually ships in 2-12 days

0

28-1

BASE

Note: (Includes Ref Nos 28-1 through 28-3)

$

$

Not available

28-2

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

28-3

BASE

$

$

Not available

29

Snapper 771448

KIT, Motor

Note: (Includes Ref Nos 29-1 & 29-2)

$225.99

$

Usually ships in 2-12 days

0

29-1

MOTOR

$

$

Not available

29-2

NUT

$

$

Not available

30

Snapper 771767

KIT, Motor Base

Note: (Includes Ref Nos 30-1 through 30-5)

$29.99

$

Usually ships in 2-12 days

0

30-1

BASE

$

$

Not available

30-2

DISC, Tension

$

$

Not available

30-3

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

30-4

BOLT

$

$

Not available

30-5

NUT

$

$

Not available

31

Snapper 771605

KIT, Inverted Switch

$13.99

$

Usually ships in 2-12 days

0

32

Snapper 771430

KIT, Front Bulkhead

Note: (Includes Ref Nos 32-1 & 32-2)

$32.99

$

Usually ships in 2-12 days

0

32-1

BAFFLE, Front

$

$

Not available

32-2

SCREW

$

$

Not available

33

Snapper 771450

KIT, Fan

Note: (Includes Ref Nos 33-1 through 33-3)

$20.99

$

Usually ships in 2-12 days

0

33-1

FAN

$

$

Not available

33-2

WASHER

$

$

Not available

33-3

BOLT, M10 X 35

$

$

Not available

38

Snapper 771472

KIT, Discharge Chute

Note: (Includes Ref Nos 38-1 through 38-6)

$27.99

$

Usually ships in 2-12 days

0

38-1

COVER

$

$

Not available

38-2

PIN

$

$

Not available

38-3

BRACKET

$

$

Not available

38-4

SPRING, Torsion

$

$

Not available

38-5

BOLT, Hex Flange, M6 X 12

$

$

Not available

38-6

DECAL, Side Discharge

$

$

Not available

39

Snapper 771463

KIT, Mulching Plug

$28.99

$

Usually ships in 2-12 days

0

41

Snapper 771472

KIT, Discharge Chute

$27.99

$

Usually ships in 2-12 days

0

42

Snapper 771466

KIT, Front Panel

Note: (Includes Ref Nos 42-1 through 42-5)

$34.99

$

Usually ships in 2-12 days

0

42-1

SCREW

$

$

Not available

42-2

PANEL

$

$

Not available

42-3

COVER, Panel

$

$

Not available

42-4

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

42-5

DECAL

$

$

Not available

44

Snapper 771760

KIT, Rear Baffle

Note: (Includes Ref Nos 44-1 through 44-3)

$67.99

$

Usually ships in 2-12 days

0

44-1

BAFFLE, Rear

$

$

Not available

44-2

SCREW

$

$

Not available

44-3

SCREW

$

$

Not available

45

Snapper 1760514

* BATTERY, 2.0, 82V EU/AU

$

$

Currently unavailable

46

Snapper 1760264

* CHARGER, Battery, EU

$

$

Currently unavailable

47

Snapper 1760515

* BATTERY, 4.0, 82V EU/AU

$

$

Currently unavailable

--

Snapper 770294

REMOTE BELT FOR BATTERY

Note: (Not Shown)

$186.99

$

Usually ships in 2-12 days

0
