ESXD 19SPWM82 (80076050) - Snapper XD 82V 19" Walk-Behind Mower Wheels & Deck Group Parts Diagram

XD 82V 19" Walk-Behind Mower

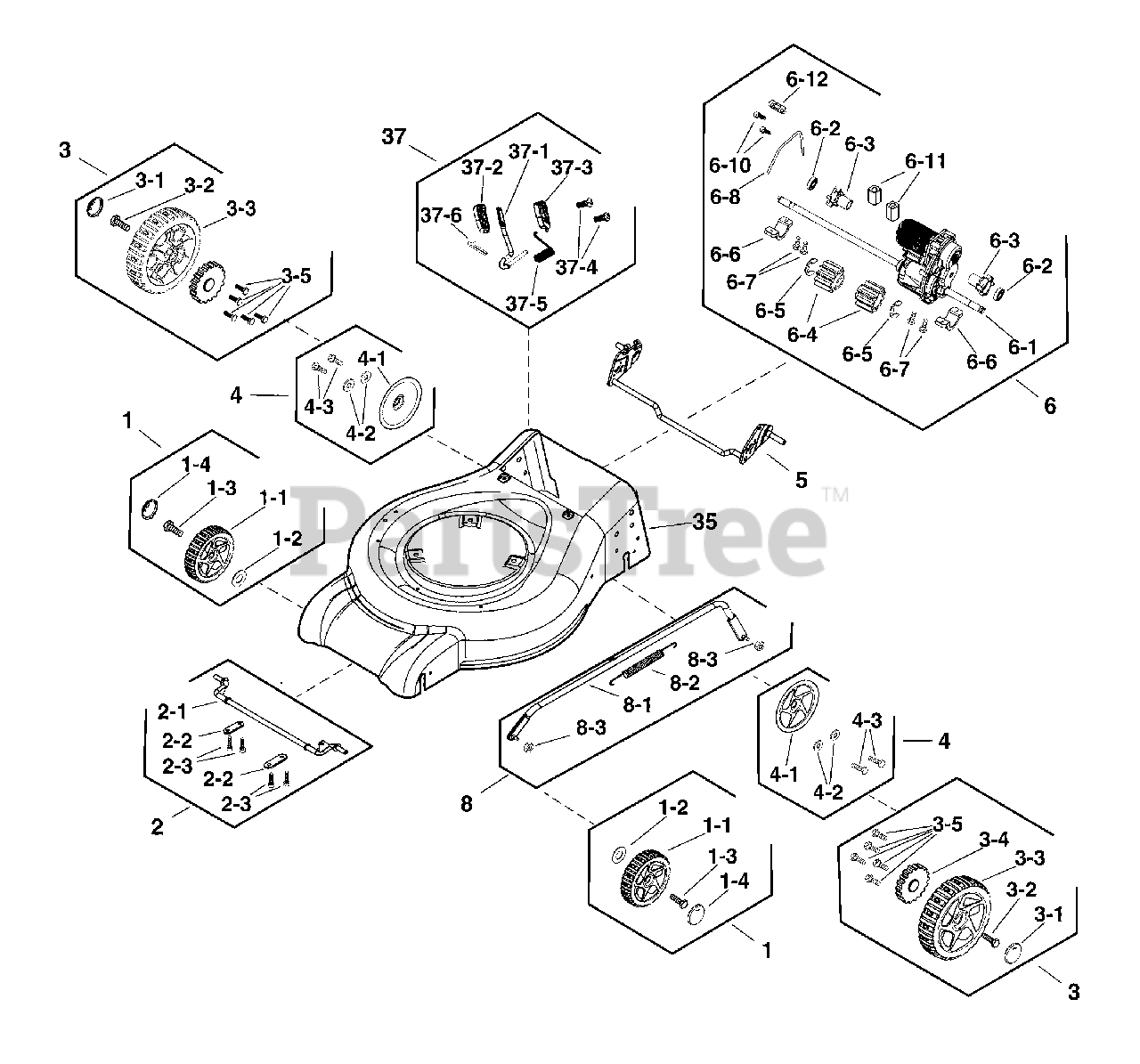

Wheels & Deck Group Parts Diagram

  • Title

1

Snapper 770188

KIT, Wheel, 8"

$40.99

$

In Stock, only 1 left!

0

1-1

WHEEL, 8"

$

$

Not available

1-2

WASHER

$

$

Not available

1-3

BOLT

$

$

Not available

1-4

COVER, Wheel

$

$

Not available

2

Snapper 771434

KIT, FRONT AXLE

$62.99

$

Usually ships in 2-12 days

0

2-1

FRONT AXLE

$

$

Not available

2-2

TAB

$

$

Not available

2-3

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

3

Snapper 771581

KIT, Rear Wheel

$57.99

$

Usually ships in 2-12 days

0

3-1

COVER, Wheel

$

$

Not available

3-2

BOLT

$

$

Not available

3-3

WHEEL, 10"

$

$

Not available

3-4

Snapper 84003415

GEAR, Drive

$14.99

$

In Stock, only 1 left!

0

3-5

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

4

Snapper 771582

KIT, Dust Cover

$26.99

$

Usually ships in 2-12 days

0

4-1

DUST COVER

$

$

Not available

4-2

GASKET, 5.3

$

$

Not available

4-3

SCREW ST4.2-16

$

$

Not available

5

Snapper 771761

KIT, REAR AXLE

$71.99

$

Usually ships in 2-12 days

0

6

Snapper 771758

KIT, GEAR BOX

$421.99

$

Usually ships in 2-12 days

0

6-1

GT REDUCER

$

$

Not available

6-2

BEARING

$

$

Not available

6-3

COLLAR, Locking

$

$

Not available

6-4

GEAR, Drive

$

$

Not available

6-5

RING, Snap

$

$

Not available

6-6

PLATE, Axle

$

$

Not available

6-7

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

6-8

MOTOR CABLE

$

$

Not available

6-10

DISC, Tension

$

$

Not available

6-11

Snapper 84003412

MAGNET

$17.99

$

Usually ships in 2-12 days

0

6-12

SCREW ST4.2-12

$

$

Not available

8

Snapper 771435

KIT, HEIGHT ADJUST ROD

$51.99

$

Usually ships in 2-12 days

0

8-1

CONNECTING ROD

$

$

Not available

8-2

SPRING

$

$

Not available

8-3

NUT

$

$

Not available

35

Snapper 771759

KIT, MOWER DECK

$307.99

$

Usually ships in 2-12 days

0

37

Snapper 771465

KIT, HEIGHT ADJUST

$20.99

$

Usually ships in 2-12 days

0

37-1

ADJUSTING ROD

$

$

Not available

37-2

HOUSING, Left

$

$

Not available

37-3

HOUSING, Right

$

$

Not available

37-4

SCREW

$

$

Not available

37-5

SPRING

$

$

Not available

37-6

PIN, Cotter

$

$

Not available
