ESXD UC 82 (1696884-00) - Snapper XD 82V Utility Cart Utility cart Parts Diagram

XD 82V Utility Cart

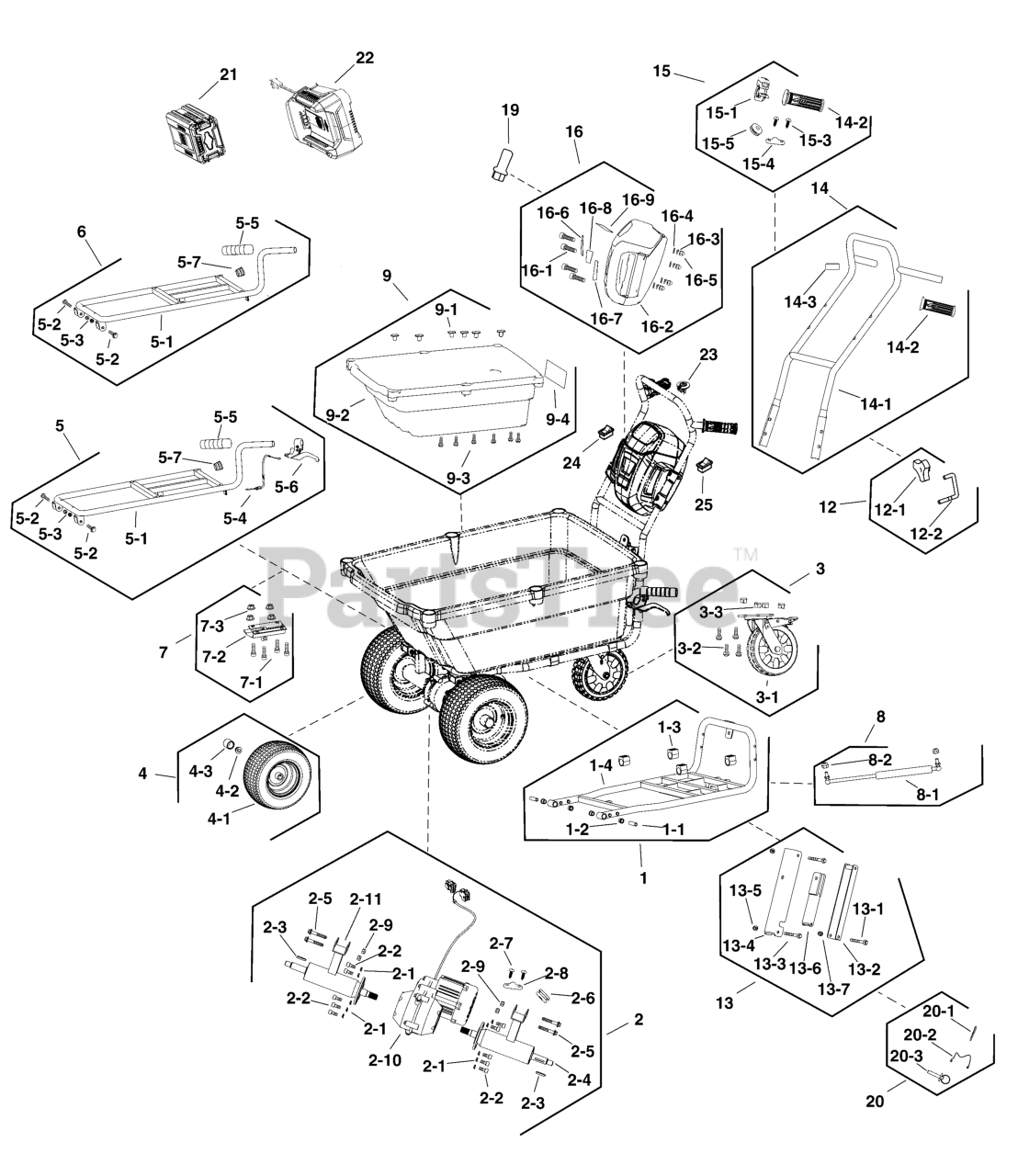

Utility cart Parts Diagram

  • Title

1

Snapper 771648

KIT, BOTTOM FRAME

$362.99

$

Usually ships in 2-12 days

0

1-1

Snapper 84003348

KIT, BUSHING

Note: (Kit contains 2)

$4.49

$

Usually ships in 2-12 days

0

1-2

Snapper 84003349

KIT, BUSHING

Note: (Kit contains 4)

$3.99

$

Usually ships in 2-12 days

0

1-3

Snapper 84003350

KIT, VIBRATION

Note: (Kit contains 4)

$10.99

$

Usually ships in 2-12 days

0

1-4

BOTTOM FRAME

$

$

Not available

2

Snapper 771649

KIT, MOTOR & TRANSMISSION

$936.99

$

Usually ships in 2-12 days

0

2-1

WASHER

$

$

Not available

2-2

SCREW, SOCKET HEAD CAP, M8X20

$

$

Not available

2-3

KEY 5×5-30

$

$

Not available

2-4

Snapper 84003354

AXLE, LEFT

$111.99

$

Usually ships in 2-12 days

0

2-5

BOLT, HEXAGON FLANGE, M8X50

$

$

Not available

2-6

RUBBER SHEATH

$

$

Not available

2-7

SCREW, PAN HEAD TAPPING ST4×20-C

$

$

Not available

2-8

STRAIN RELIEF

$

$

Not available

2-9

NUT, HEXAGON LOCK, M8

$

$

Not available

2-10

MOTOR & TRANSMISSION

$

$

Not available

2-11

Snapper 84003355

AXLE, RIGHT

$111.99

$

Usually ships in 2-12 days

0

3

Snapper 771650

KIT, CASTER

$246.99

$

Usually ships in 2-12 days

0

3-1

CASTER, 8 "

$

$

Not available

3-2

BOLT, HEXAGON, M10 X 25

$

$

Not available

3-3

NUT, HEXAGON LOCK, M10

$

$

Not available

4

Snapper 771651

KIT, TIRE

$206.99

$

Usually ships in 2-12 days

0

4-1

TIRE, 12 X 5 - 6

$

$

Not available

4-2

NUT, HEXAGON FLANGE, M14 X 1.5

$

$

Not available

4-3

AXLE SHEATH

$

$

Not available

5

Snapper 771652

KIT, FRAME

$280.99

$

Usually ships in 2-12 days

0

5-1

FRAME, BUCKET

$

$

Not available

5-2

BOLT, HEXAGON FLANGE, M8 X 60

$

$

Not available

5-3

NUT, HEXAGON LOCK, M8

$

$

Not available

5-4

Snapper 84003351

CABLE

$8.99

$

Usually ships in 2-12 days

0

5-5

Snapper 84003353

GRIP, HANDLE

$5.99

$

Usually ships in 2-12 days

0

5-6

Snapper 84003352

LEVER ASSEMBLY

$18.99

$

Usually ships in 2-12 days

0

5-7

Snapper 84003542

KIT, PLUG

Note: (Kit contains 2)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper 771653

KIT, FRAME

$229.99

$

Usually ships in 2-12 days

0

7

Snapper 771654

KIT, LOCK

$32.99

$

Usually ships in 2-12 days

0

7-1

SCREW, PAN HEAD, M5 X 10

$

$

Not available

7-2

CLASP, LOCKING

$

$

Not available

7-3

NUT, HEXAGON FLANGE, M5

$

$

Not available

8

Snapper 771655

KIT, SPRING

$57.99

$

Usually ships in 2-12 days

0

8-1

SPRING

$

$

Not available

8-2

NUT, HEXAGON LOCK, M8

$

$

Not available

9

Snapper 771657

KIT, BUCKET

$636.99

$

Usually ships in 2-12 days

0

9-1

T-NUT, M6

$

$

Not available

9-2

BUCKET, B&S

$

$

Not available

9-3

BOLT, HEXAGON FLANGE, M6 X 30

$

$

Not available

9-4

DECAL, WARNING

$

$

Not available

12

Snapper 771659

KIT, KNOB & PIN

$14.99

$

In Stock, only 2 left!

0

12-1

KNOB

$

$

Not available

12-2

U-PIN

$

$

Not available

13

Snapper 771660

KIT, HITCH

$85.99

$

Usually ships in 2-12 days

0

13-1

BOLT, HEXAGON, M8 X 60

$

$

Not available

13-2

Snapper 84003540

PLATE, HITCH

$56.99

$

Usually ships in 2-12 days

0

13-3

BOLT, HEXAGON FLANGE, M8 X 70

$

$

Not available

13-4

Snapper 84003539

PLATE, HITCH

$52.99

$

Usually ships in 2-12 days

0

13-5

NUT, HEXAGON LOCK, M8

$

$

Not available

13-6

Snapper 84003541

PLATE, CONNECTING

$52.99

$

Usually ships in 2-12 days

0

13-7

NUT, HEXAGON LOCK, M8

$

$

Not available

14

Snapper 771661

KIT, HANDLE

$259.99

$

Usually ships in 2-12 days

0

14-1

HANDLE

$

$

Not available

14-2

Snapper 84001636

GRIP, HANDLE

$8.99

$

Usually ships in 2-12 days

0

14-3

LABEL

$

$

Not available

15

Snapper 771662

KIT, THROTTLE

$148.99

$

Usually ships in 2-12 days

0

15-1

THROTTLE

$

$

Not available

15-3

SCREW, PAN HEAD TAPPING ST4×20-C

$

$

Not available

15-4

STRAIN RELIEF

$

$

Not available

15-5

SHEATH

$

$

Not available

16

Snapper 771664

KIT, PANEL

$567.99

$

Usually ships in 2-12 days

0

16-1

SCREW, PAN HEAD, M6 X 35

$

$

Not available

16-2

PANEL

$

$

Not available

16-3

WASHER, FLAT

$

$

Not available

16-4

WASHER

$

$

Not available

16-5

NUT, CAP

$

$

Not available

16-6

DECAL, LEFT

$

$

Not available

16-7

DECAL, RIGHT

$

$

Not available

16-8

DECAL

$

$

Not available

16-9

LABEL SHEET

$

$

Not available

19

Snapper 771666

KIT, SAFETY KEY
(Superseded to 596798)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper 771667

KIT, LOCK & PIN

$39.99

$

Usually ships in 2-12 days

0

20-1

PIN, COTTER

$

$

Not available

20-2

LINK

$

$

Not available

20-3

PIN

$

$

Not available

--

Snapper 770294

REMOTE BELT FOR BATTERY

Note: (Not Shown)

$197.99

$

Usually ships in 2-12 days

0

21

Snapper 1760514

* BATTERY, 2.0, 82V EU/AU

Note: (Option)

$

$

Currently unavailable

22

Snapper 1760264

* CHARGER, Battery, EU

Note: (Option)

$

$

Currently unavailable

23

Snapper 84001631

SWITCH, ON/OFF

$15.99

$

Usually ships in 2-12 days

0

24

Snapper 84001634

SWITCH, HI/LO

$8.99

$

Usually ships in 2-12 days

0

25

Snapper 84001633

SWITCH, FORWARD/REVERSE

$8.99

$

Usually ships in 2-12 days

0
