ESZT 18336 BVE (85697) - Snapper 33" Zero-Turn Mower, 18hp ELECTRICAL COMPONENTS (Part 2) Parts Diagram

33" Zero-Turn Mower, 18hp

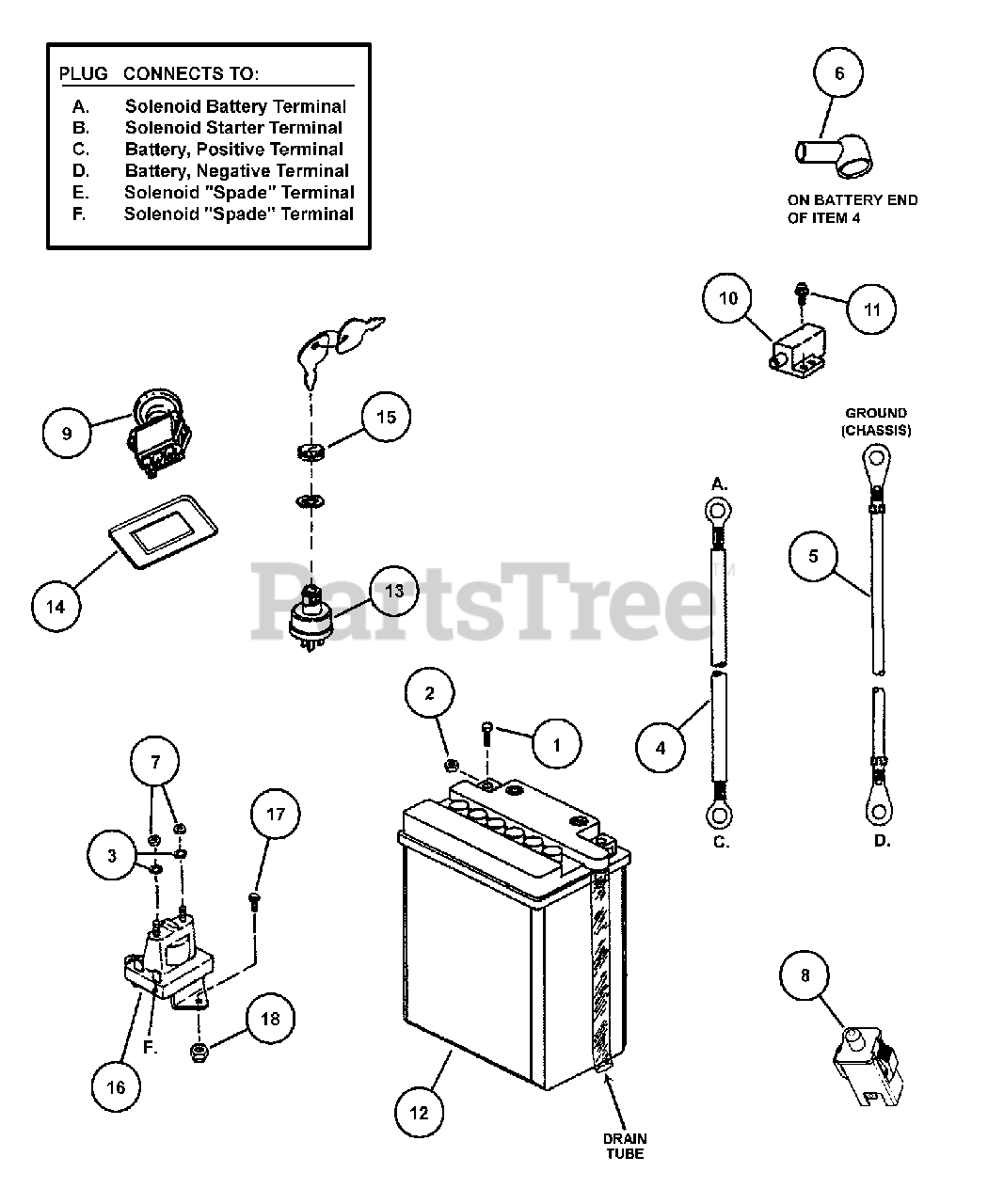

ELECTRICAL COMPONENTS (Part 2) Parts Diagram

  • Title

1

Snapper 7090411

SCREW, #10-24 x 1/2" Hex Head Cap

$

$

Not available

2

Snapper 7012688

NUT, #10-24 Hex Twin "Whiz" Lock
(Superseded to 7012688YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314

$4.49

$

In Stock, Qty 5

0

4

Snapper 7016835

WIRE, Positive, 13" long
(Superseded to 7016835YP)

$8.99

$

In Stock, only 1 left!

0

5

Snapper 7042956

WIRE, Negative, 14" long
(Superseded to 7028027YP)

$10.99

$

In Stock, only 2 left!

0

6

Snapper 7071694

COVER, Battery Cable
(Superseded to 7071694SM)

$3.99

$

In Stock, only 2 left!

0

7

Snapper 7090977

NUT, 1/4-20 Hex Jam, GR 5 or B
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

8

Snapper 7022886

SWITCH, Seat (NO/NC) Snap-In
(Superseded to 7022886YP)

$15.99

$

In Stock, Qty 20+

0

9

Snapper 7075884

SWITCH, PTO E.C. (Delta Part No. 6201-219)
(Superseded to 7075884YP)

$42.99

$

Usually ships in 2-12 days

0

10

Snapper 7023355

SWITCH, Park Brake (NC/NO)
(Superseded to 7023355YP)

$18.99

$

In Stock, Qty 5

0

11

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7029130

BATTERY, 12V, 3 Amp, 190 Cold Cranking Amp

Note: includes drain tube, p/n 91855

$

$

Not available

13

Snapper 7026343

SWITCH, Ignition (After-fire Solenoid)
(Superseded to 7026343SM)

$40.99

$

In Stock, only 4 left!

0

14

Snapper 7035661

SPACER, PTO Switch
(Superseded to 7035661YP)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7075622

SOLENOID - Super Trombetta- 2 Terminal
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 16

0

17

Snapper 7090071

SCREW, 1/4-20 x 1/2" Hex Head Cap, GR 5
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

18

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 6
