ET 17 - Poulan Pro Trimmer, Electric Electric Trimmer Assembly Parts Diagram

Trimmer, Electric

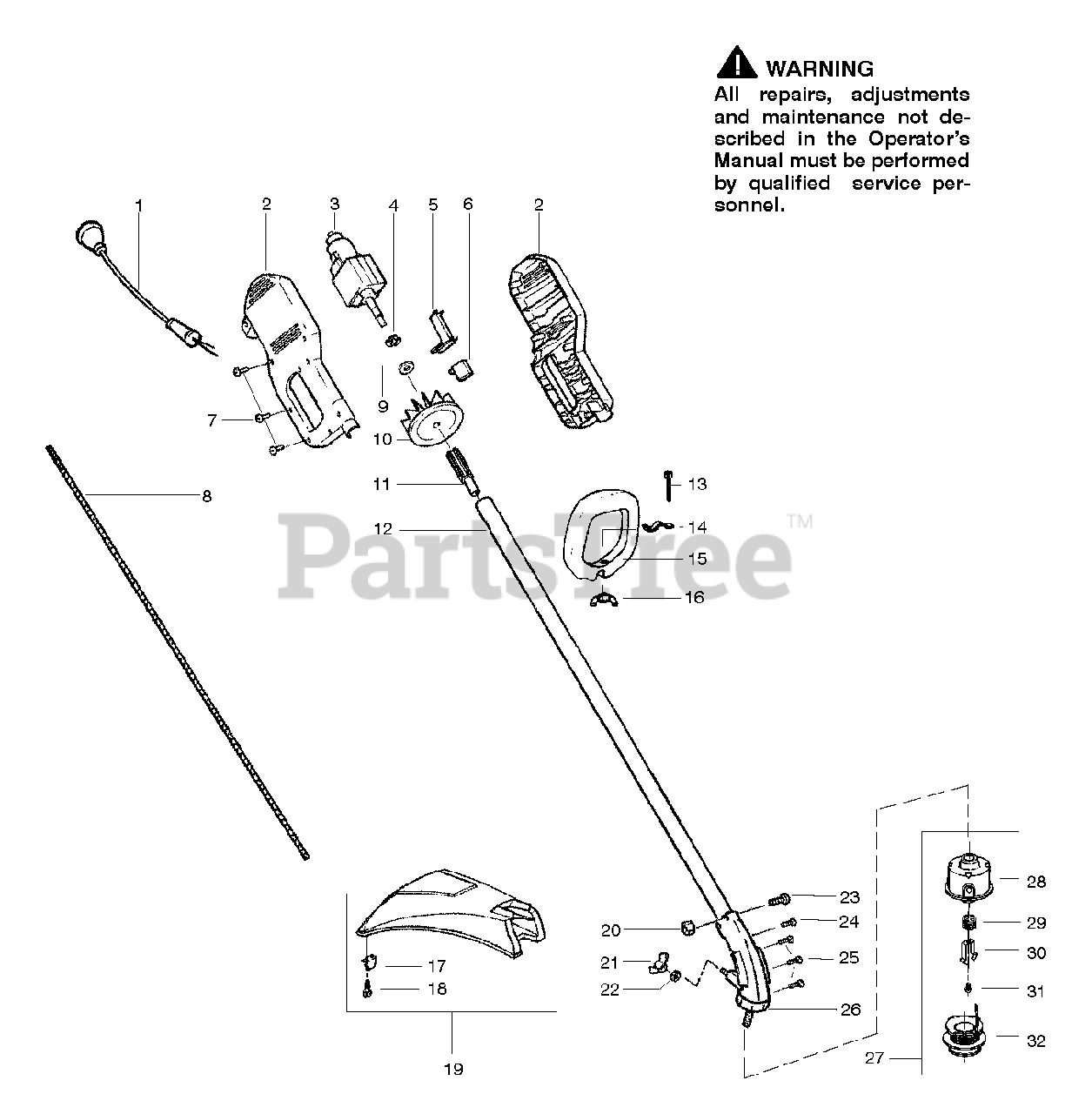

Electric Trimmer Assembly Parts Diagram

  • Title

1

Poulan 530402803

Assy-Wiring Harness

Note: (Incl. Switch)

$

$

Not available

2

Poulan 530402797

Housing Set

$9.99

$

Usually ships in 3-10 days

0

3

Poulan 530402688

Motor

$

$

Not available

4

Poulan 530403111

Retainer-Clip

$

$

Not available

5

Poulan 530402799

Trigger Switch

$

$

Not available

6

Poulan 530402802

Switch

$

$

Not available

7

Poulan 530016120

Screw

$3.99

$

In Stock, Qty 10

0

8

Poulan 530095391

Flex Shaft

$

$

Not available

9

Poulan 530403112

Washer-Drive Adaptor

$

$

Not available

10

Poulan 530402798

Fan

$

$

Not available

11

Poulan 530402801

Assy-Drive Adaptor

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 530403742

Assy-Tube

$

$

Not available

13

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 530038599

Clamp-Assist Handle

$2.49

$

In Stock, only 3 left!

0

15

Poulan 530038584

Handle-Assist

$

$

Not available

16

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

17

Poulan 530052286

Line Limiter

$

$

Not available

18

Poulan 530015880

Screw-Line Limiter

$4.99

$

In Stock, Qty 8

0

19

Poulan 530069752

Kit-Shield Ass'y.

Note: (Incl.17 & 18)

$

$

Not available

20

Poulan 530016284

Locknut

$4.99

$

In Stock, only 4 left!

0

21

Poulan 530016225

Wingnut

$

$

Not available

22

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530016283

Screw

$

$

Not available

24

Poulan 530016224

Screw-Alignment

$4.99

$

In Stock, Qty 5

0

25

Poulan 530016202

Screw

$

$

Not available

26

Poulan 530095638

Assy-Gear Box

$

$

Not available

27

Poulan 952701666

Accy-Cutting Head Ass'y.
(Superseded to 590267601)

Note: (Incl. 28-32)

$26.99

$

In Stock, Qty 6

0

28

Poulan 530069690

Kit-Hub Assy.

$

$

Not available

29

Poulan 530401464

Spring

$

$

Not available

30

Poulan 530401466

Retainer-Clip

$3.99

$

In Stock, Qty 10

0

31

Poulan 530401467

Screw w/ Washer-Head

$

$

Not available

32

Poulan 952711527

Spool w/Line

$

$

Not available

Poulan 545117529

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 530403323

Shaft Warning Decal

Note: Not Shown

$

$

Not available
