ET2100 (9495-0) - Generac 2,100 Watt Portable Generator Generator Parts Diagram

2,100 Watt Portable Generator

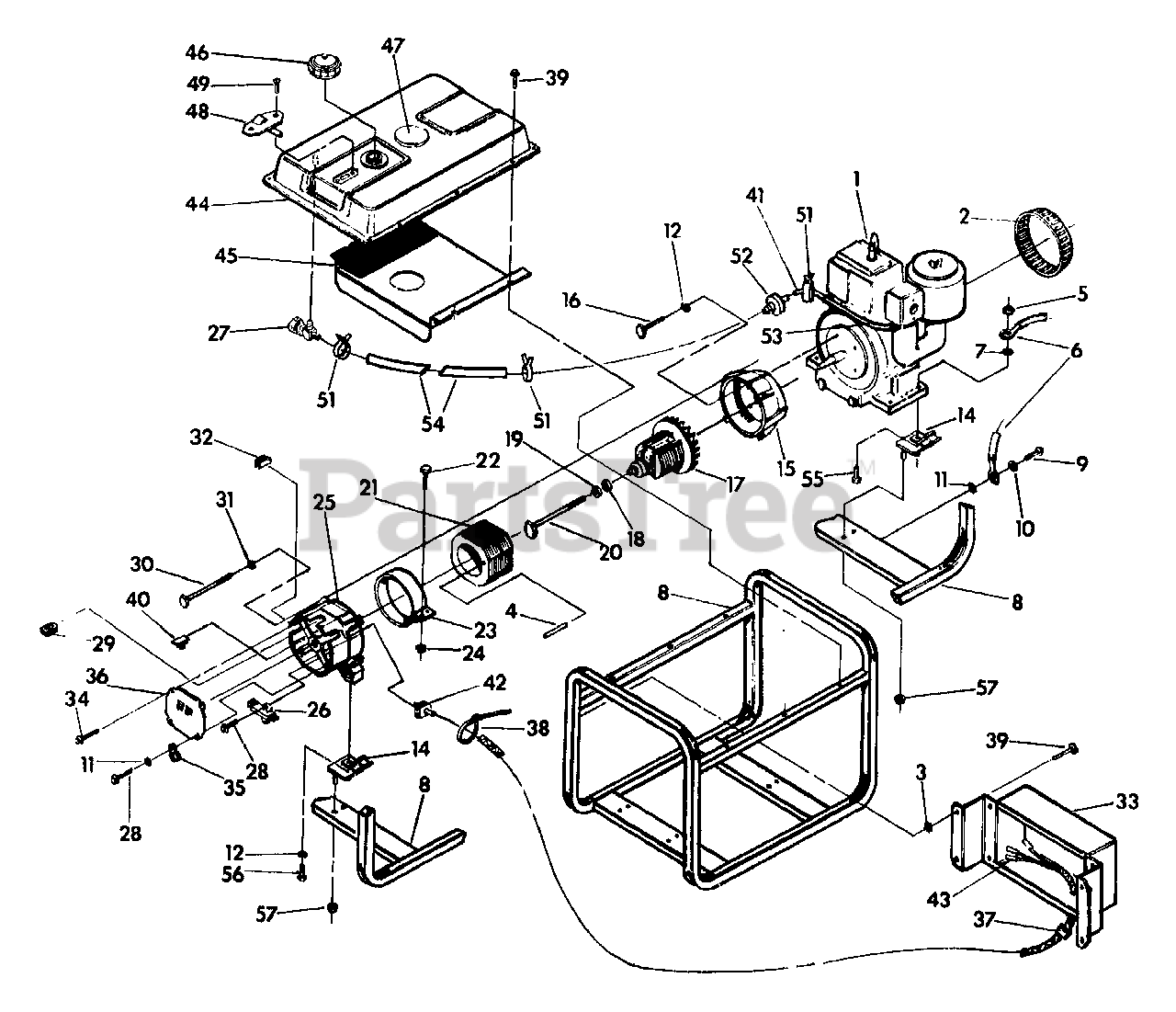

Generator Parts Diagram

  • Title

1

Briggs & Stratton 80253

Briggs & Stratton 5 Hp Engine

$

$

Currently unavailable

2

Briggs & Stratton 82341

Recoil Starter Guard

$

$

Not available

3

Briggs & Stratton 23364

No. 6 Shakeproof Washer
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 81917

M4 x 10mm Roll Pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 45771

M8-1.25 Hex Nut

$

$

Not available

6

Briggs & Stratton 10953621

Ground Wire

$

$

Currently unavailable

7

Briggs & Stratton 27482

5/16 Shakeproof Washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 78821

Cradle

$

$

Currently unavailable

9

Briggs & Stratton 24911

No. 8 x 3/8" Taptite Screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

No. Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 70642

Vibration Mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

15

Briggs & Stratton 66365F

Engine Adaptor Housing
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22336

5/16-24 x 3/4" Capscrew

$

$

Not available

17

Briggs & Stratton 80023G

Rotor Assembly

$

$

Not available

18

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 67451

Flat Washer (special)

$

$

Currently unavailable

20

Briggs & Stratton 58885A

5/16-24 x 6-5/16" Rotor Bolt

$

$

Not available

21

Briggs & Stratton 84292

Stator Assembly

$

$

Currently unavailable

22

Briggs & Stratton 52618

M5-0.8 x 12mm Capscrew
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 81887F

Stator Wrapper

$

$

Currently unavailable

24

Briggs & Stratton 52856

M5-0.8 Locking Nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825

Rear Bearing Carrier

$

$

Currently unavailable

26

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 71384

Shut-off Valve

$

$

Not available

28

Briggs & Stratton 66849

M5-0.8 x 15mm Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 66850

Bridge Rectifier Assembly
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 66449B

M6-1.0 x 90mm Stator Bolt

$

$

Currently unavailable

31

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 85999

Panel Back Box

$

$

Currently unavailable

34

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 25433

Grounding Lug

$

$

Not available

36

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

37

Briggs & Stratton 84313

Strain Relief

$

$

Currently unavailable

38

Briggs & Stratton 28739A

4" Black Tie Wrap
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 75494

No. 10-24 Self-drilling Screw

$

$

Not available

40

Briggs & Stratton 84242

Plastic Grommet
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 44249J

1/4" dia. x 10-1/4" Fuel Tubing

$

$

Currently unavailable

42

Briggs & Stratton 84135

Grommet Wire
(Superseded to 84135GS)

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 86074

Wire Harness

$

$

Currently unavailable

44

Briggs & Stratton 77353

Fuel Tank
(Superseded to 7077353YP)

$14.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 78956

Heat Shield

$

$

Currently unavailable

46

Briggs & Stratton 76280

Fuel Tank Cap
(Superseded to 76280GS)

$

$

Not available

47

Briggs & Stratton 64680B

Spark Plug Access Cover
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 66391B

Fuel Level Gauge

$

$

Not available

49

Briggs & Stratton 52749

M5 x 12mm Screw

$

$

Currently unavailable

51

Briggs & Stratton 48031C

Hose Clamp Band

$

$

Not available

52

Briggs & Stratton 68740

Fuel Filter
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 79474A

Foam Insulation Tubing

$

$

Currently unavailable

54

Briggs & Stratton 44249C

1/4" dia. x 5" Fuel Tubing

$

$

Currently unavailable

55

Briggs & Stratton 76222

M8 x 40mm Pan Head Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 70644

M8 x 20mm Screw
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 52858

M8 Locking Flange Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0
