ET2500 (1263-0) - Generac 2,500 Watt Portable Generator Generator ET2500 Parts Diagram

2,500 Watt Portable Generator

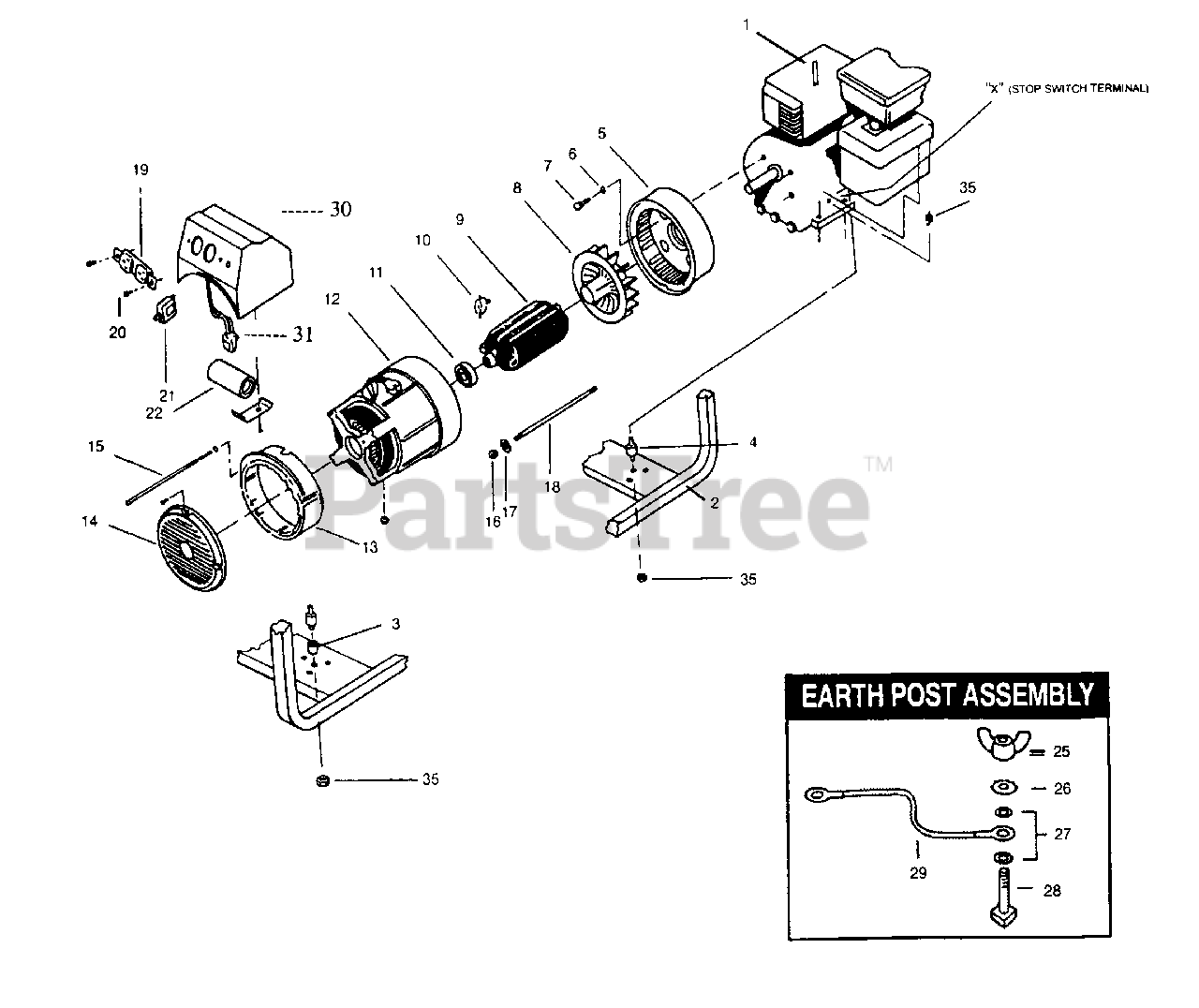

Generator ET2500 Parts Diagram

  • Title
1

Briggs & Stratton ~NSP

Engine Briggs & Stratton 5HP

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

4

Briggs & Stratton 85651

Anti - vibration mount
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton A1930A

Adaptor flange

$

$

Currently unavailable

6

Briggs & Stratton 22129

5/16" Spring washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 86307

Screw
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

8

Briggs & Stratton 20419A

Fan
(Superseded to 20419AGS)

$11.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B2998A

Rotor Assembly
(Superseded to B2998AGS)

$471.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton A1816

Varistor/ Diode Assembly
(Superseded to A1816GS)

$24.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton A1949A

Bearing
(Superseded to A1949AGS)

$30.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B2926A

Stator Assembly
(Superseded to B2926AGS)

$

$

Not available

$

$

Currently unavailable

$

$

Currently unavailable

15

Briggs & Stratton B3964

Stator Bolt
(Superseded to B3964GS)

$7.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 20316

M8- 1.25 Nylock nut
(Superseded to 20316GS)

$1.99

$

Usually ships in 2-12 days

0

$

$

Not available

18

Briggs & Stratton A1928

Rotor bolt
(Superseded to A1928GS)

$16.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 68758

120V/20A Duplex outlet
(Superseded to 68758GS)

$7.49

$

Usually ships in 2-12 days

0

20

UNKNOWN

$

$

Not available

21

Briggs & Stratton 75207

20A Circuit breaker
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton A1817

16 uF Capacitor

$

$

Not available

23

Briggs & Stratton 52858

M8-1.25 Flange nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 87680

M6- 1.0 Wing Nut
(Superseded to 87680GS)

$7.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 49813

M6 -1.0 nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 22447

M6 Shakeproof washer
(Superseded to 22447GS)

$2.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 94874

M6-1.0 x 25mm Screw
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

29

Briggs & Stratton 94876C

Earth lead 125mm
(Superseded to 94876CGS)

$1.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 185910

Housing Bracket
(Superseded to 185910GS)

$59.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 185911

Wire Harness
(Superseded to 185911GS)

$32.99

$

Usually ships in 2-12 days

0

35

UNKNOWN

$

$

Not available
