EU1000i T1 A (EAAT) - Honda Generator, Made in Thailand (SN: EAAT-1000001 - EAAT-1999999) CARBURETOR Parts Diagram

Generator, Made in Thailand

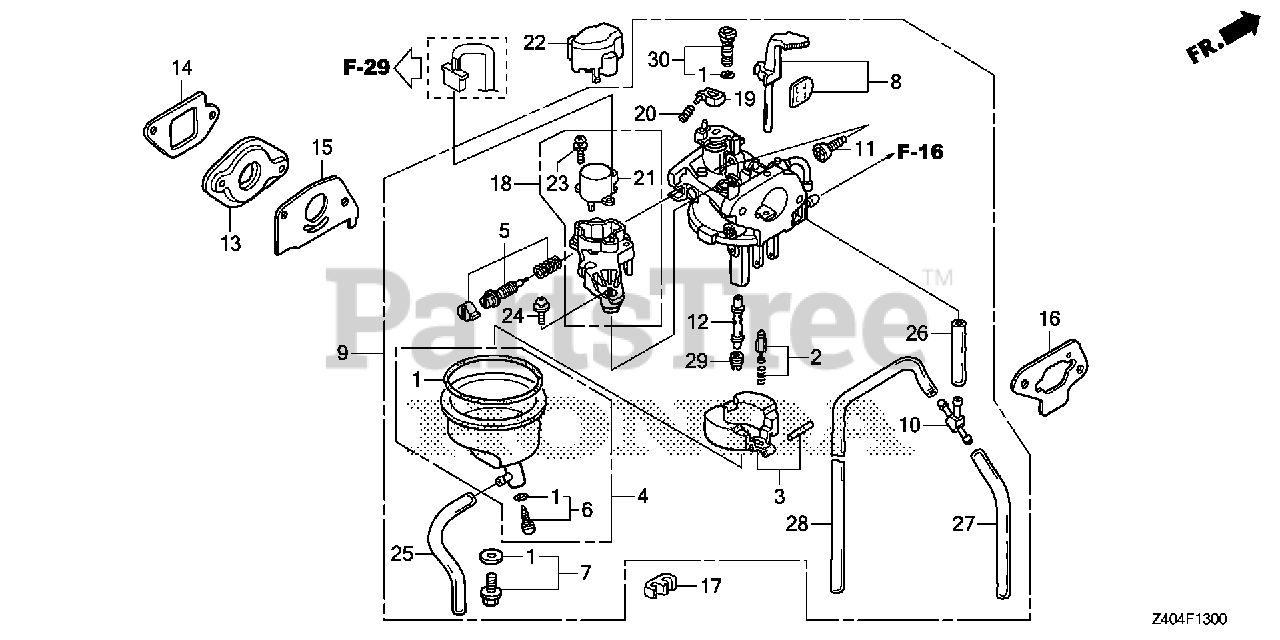

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZM7-D01

GASKET SET

$15.99

$

In Stock, Qty 15

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$27.99

$

In Stock, Qty 8

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZM7-003

CHAMBER SET, FLOAT

$57.99

$

In Stock, only 1 left!

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$19.99

$

In Stock, only 3 left!

0

6

Honda 16024-ZB9-005

SCREW SET, DRAIN

$9.49

$

In Stock, Qty 9

0

7

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZM7-D01

CHOKE SET

$35.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZM7-D28

CARBURETOR ASSY. (BF30C G)

$117.99

$

In Stock, only 2 left!

0

10

Honda 16112-ZM7-D01

JOINT, AIR VENT TUBE

$10.99

$

Usually ships in 3-6 days

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$14.99

$

In Stock, only 2 left!

0

12

Honda 16166-ZM7-D02

SEE PART DETAILS - PRI; NOZZLE, MAIN

$21.99

$

Usually ships in 3-6 days

0

13

Honda 16211-ZM7-D10

INSULATOR, CARBURETOR

$9.99

$

Usually ships in 3-6 days

0

14

Honda 16212-ZM7-D00

GASKET, INSULATOR

$2.49

$

In Stock, Qty 5

0

15

Honda 16221-ZG0-801

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 19

0

16

Honda 17274-ZT3-000

GASKET, AIR IN. JOINT

$2.99

$

In Stock, Qty 15

0

17

Honda 32765-PE0-000

CLAMP D, IGNITION WIRE

$

$

Not available

18

Honda 36160-ZM7-D01

MOTOR ASSY., THROTTLE CONTROL

$103.99

$

Usually ships in 3-6 days

0

19

Honda 36161-ZM7-D21

LEVER, LINK

$12.99

$

Usually ships in 3-6 days

0

20

Honda 36162-ZM7-D21

SPRING, COMPRESSION COIL

$5.49

$

In Stock, only 2 left!

0

21

Honda 36165-ZL0-D31

MOTOR, THROTTLE CONTROL

$97.99

$

Usually ships in 3-6 days

0

22

Honda 36168-ZT3-C01

COVER, THROTTLE MOTOR

Note: Use up to Frame SN 1041520.

$8.49

$

Usually ships in 3-6 days

0

22

Honda 36168-Z39-C90

COVER, THROTTLE MOTOR

Note: Use from Frame SN 1041521.

$1.49

$

Usually ships in 3-6 days

0

23

Honda 90003-ZL0-D30

SCREW-WASHER (3X8)

$2.49

$

In Stock, only 4 left!

0

24

Honda 93893-04010-08

SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

25

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X190)

$26.99

$

In Stock, only 1 left!

0

26

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (4X7X50)

$34.99

$

In Stock, only 1 left!

0

27

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (4X7X160)

$34.99

$

In Stock, only 1 left!

0

28

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (4X7X350)

$34.99

$

In Stock, only 1 left!

0

29

Honda 99101-ZG0-0520

JET, MAIN (#52)

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

29

Honda 99101-ZG0-0550

SEE PART DETAILS - PRI; JET, MAIN (#55)

Note: (Optional).

$9.99

$

In Stock, only 1 left!

0

29

Honda 99101-ZG0-0580

JET, MAIN (#58)

$8.49

$

Usually ships in 3-6 days

0

30

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$21.99

$

In Stock, only 2 left!

0
