EU1000i T1 A (EAAT) - Honda Generator, Made in Thailand (SN: EAAT-1000001 - EAAT-1999999) CONTROL PANEL (1) Parts Diagram

Generator, Made in Thailand

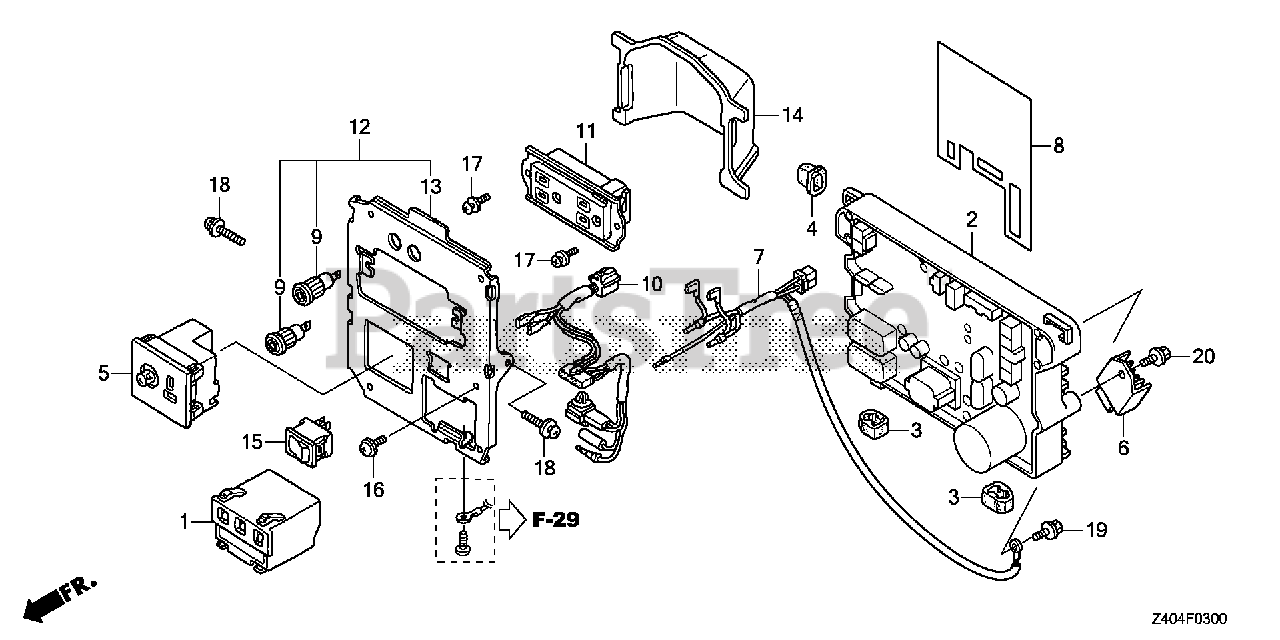

CONTROL PANEL (1) Parts Diagram

  • Title

1

Honda 30400-ZT3-C02

SPARK UNIT

$153.99

$

Usually ships in 3-6 days

0

2

Honda 31310-ZT3-P12

SEE PART DETAILS - PRI; INVERTER UNIT

$902.99

$

Usually ships in 3-6 days

0

3

Honda 31319-ZT3-000

RUBBER A, INVERTER

$3.49

$

Usually ships in 3-6 days

0

4

Honda 31324-ZT3-000

RUBBER B, INVERTER

$3.49

$

Usually ships in 3-6 days

0

5

Honda 31460-ZT3-C01

RECEPTACLE, D.C.

$89.99

$

Usually ships in 3-6 days

0

6

Honda 31710-ZS9-A02

RECTIFIER ASSY.

$27.99

$

Usually ships in 3-6 days

0

7

Honda 32105-ZT3-P10

SUB-WIRE HARNESS ASSY.

Note: Use up to Frame SN 1041929.

$36.99

$

Usually ships in 3-6 days

0

7

Honda 32105-ZT3-P11

SUB-WIRE HARNESS ASSY.

Note: Use from Frame SN 1041930.

$41.99

$

Usually ships in 3-6 days

0

8

Honda 32118-ZT3-P10

SHEET, WATERPROOF

$5.49

$

Usually ships in 3-6 days

0

9

Honda 32139-ZC3-G01

SOCKET, COMPOSITE

$34.99

$

Usually ships in 3-6 days

0

10

Honda 32150-ZT3-P11

WIRE HARNESS ASSY., CONTROL

$63.99

$

Usually ships in 3-6 days

0

11

Honda 32330-ZT3-C31

RECEPTACLE ASSY. (15A/125V)

$51.99

$

In Stock, only 2 left!

0

12

Honda 32345-ZT3-C01

PANEL, CONTROL

$108.99

$

Usually ships in 3-6 days

0

13

Honda 32346-ZT3-C01

PANEL, CONTROL

$87.99

$

Usually ships in 3-6 days

0

14

Honda 32351-ZT3-000

COVER, CONTROL PANEL

$16.99

$

Usually ships in 3-6 days

0

15

Honda 36214-ZS9-A01

SEE PART DETAILS - PRI; SWITCH, AUTO-THROTTLE

Note: Use up to Frame SN 1037305.

$28.99

$

In Stock, only 2 left!

0

15

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

Note: Use from Frame SN 1037306.

$28.99

$

In Stock, only 2 left!

0

16

Honda 90102-899-003

SCREW, PAN (5X12)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 93891-04006-00

SCREW-WASHER (4X6)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93891-05020-07

SCREW-WASHER (5X20)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 95701-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
