EU1000i T1 A (EAAT) - Honda Generator, Made in Thailand (SN: EAAT-1000001 - EAAT-1999999) FUEL TANK Parts Diagram

Generator, Made in Thailand

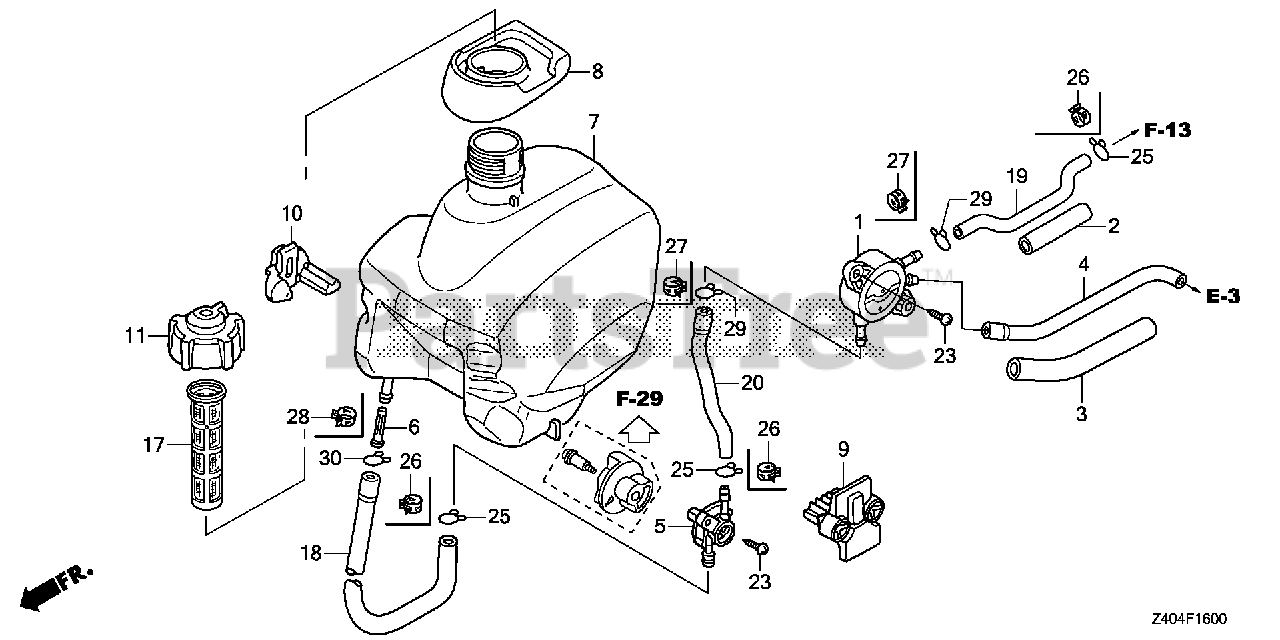

FUEL TANK Parts Diagram

  • Title

1

Honda 16700-ZT3-013

PUMP ASSY., FUEL (MSDS)

$43.99

$

In Stock, only 2 left!

0

2

Honda 16854-ZT3-000

RUBBER A, SUPPORTER

$3.49

$

In Stock, only 1 left!

0

3

Honda 16857-ZT3-000

RUBBER B, SUPPORTER

$3.49

$

In Stock, only 1 left!

0

4

Honda 16882-ZT3-000

TUBE, DIAPHRAGM

$3.49

$

In Stock, only 2 left!

0

5

Honda 16950-ZT3-003

PETCOCK ASSY.

$33.99

$

In Stock, only 1 left!

0

6

Honda 16952-ZA8-800

FILTER, FUEL

Note: Use up to Frame SN 1041520.

$8.49

$

In Stock, Qty 18

0

6

Honda 16952-Z39-C90

FILTER, FUEL

Note: Use from Frame SN 1041521.

$1.99

$

In Stock, Qty 20+

0

7

Honda 17511-ZT3-305

TANK, FUEL (FOR U.S.A.)

$67.99

$

Usually ships in 3-6 days

0

8

Honda 17514-ZT3-000

SEAL, FUEL FILLER NECK

$10.99

$

Usually ships in 3-6 days

0

9

Honda 17532-ZT3-000

RUBBER R, TANK MOUNTING

$6.49

$

Usually ships in 3-6 days

0

10

Honda 17533-ZT3-000

RUBBER L, TANK MOUNTING

$4.99

$

Usually ships in 3-6 days

0

11

Honda 17620-ZT3-030

CAP ASSY., FUEL TANK

$18.99

$

Usually ships in 3-6 days

0

17

Honda 17670-Z07-000

FILTER, FUEL

$18.99

$

Usually ships in 3-6 days

0

18

Honda 17701-ZT3-S11

TUBE, FUEL TANK (FKM)
(Superseded to 17701-ZT3-S12)

$15.99

$

Usually ships in 3-6 days

0

19

Honda 17702-ZT3-S11

TUBE A, FUEL (FKM)
(Superseded to 17702-ZT3-S12)

$

$

Not available

20

Honda 17703-ZT3-S11

TUBE B, FUEL (FKM)

$8.49

$

Usually ships in 3-6 days

0

23

Honda 93913-25520

SCREW, TAPPING (5X20) (PO)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 17

0

27

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.49

$

In Stock, only 2 left!

0

28

Honda 95002-41050-08

CLAMP, TUBE (D10.5)

$3.49

$

In Stock, only 3 left!

0
