EU1000i T1 AN (EAAT) - Honda Generator, Made in Thailand (SN: EAAT-2000001 - EAAT-9999999) CARBURETOR Parts Diagram

Generator, Made in Thailand

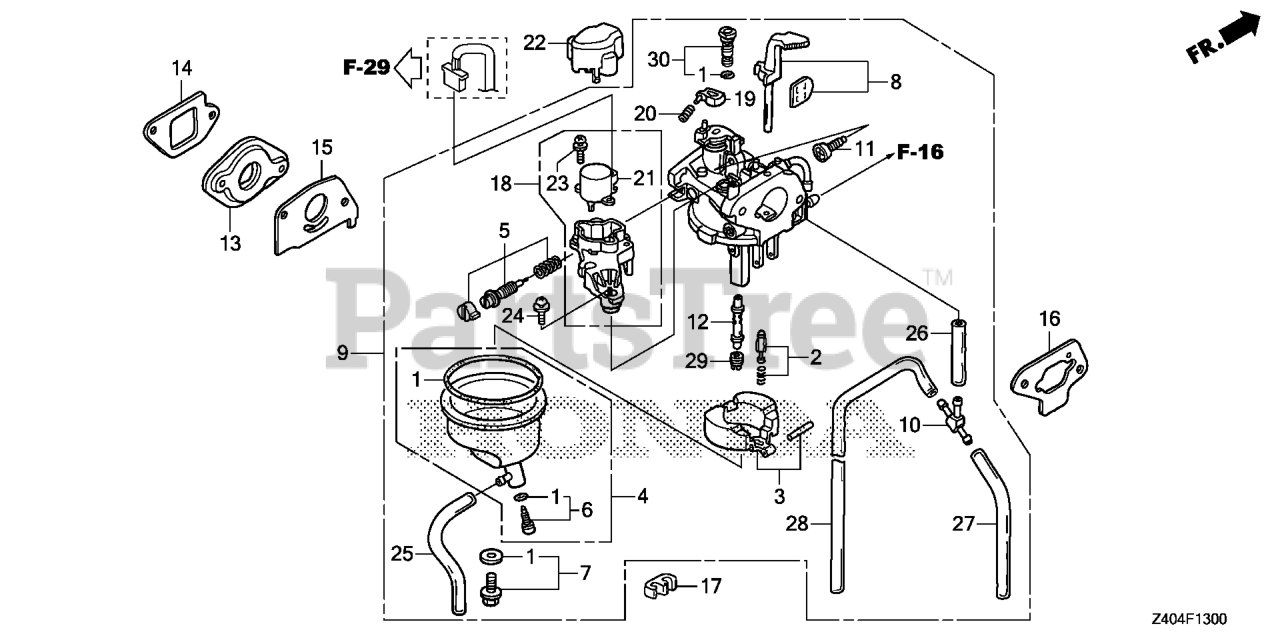

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZM7-D01

GASKET SET (CARBURETOR NO.)

$19.99

$

In Stock, Qty 9

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$32.99

$

In Stock, Qty 6

0

3

Honda 16013-ZDJ-801

FLOAT SET

$6.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZM7-003

CHAMBER SET, FLOAT (CARBURETOR NO.)

$68.99

$

In Stock, only 1 left!

0

5

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

$23.99

$

In Stock, only 4 left!

0

6

Honda 16024-ZB9-005

SCREW SET, DRAIN (CARBURETOR NO.)

$11.99

$

In Stock, only 2 left!

0

7

Honda 16028-ZG0-811

SEE PART DETAILS - SUP; SCREW SET (CARBURETOR NO.)
(Superseded to 16028-ZW6-611)

$16.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZM7-D01

CHOKE SET

$42.99

$

In Stock, Qty 5

0

9

Honda 16100-ZM7-D28

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF30C G)

$141.99

$

In Stock, only 2 left!

0

10

Honda 16112-ZM7-D01

JOINT, AIR VENT TUBE (CARBURETOR NO.)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$20.99

$

In Stock, only 2 left!

0

12

Honda 16166-ZM7-D02

SEE PART DETAILS - PRI; NOZZLE, MAIN (CARBURETOR NO.)

$26.99

$

In Stock, only 1 left!

0

13

Honda 16211-ZM7-D10

INSULATOR, CARBURETOR

$11.99

$

Usually ships in 3-6 days

0

14

Honda 16212-ZM7-D00

GASKET, INSULATOR (ENGINE NO.)

$2.99

$

In Stock, only 2 left!

0

15

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

16

Honda 17274-ZT3-000

GASKET, AIR IN. JOINT

$3.49

$

In Stock, Qty 17

0

17

Honda 32765-PE0-000

CLAMP D, IGNITION WIRE

$8.99

$

Usually ships in 3-6 days

0

18

Honda 36160-ZM7-D01

MOTOR ASSY., THROTTLE CONTROL

$124.99

$

In Stock, only 1 left!

0

19

Honda 36161-ZM7-D21

LEVER, LINK (CARBURETOR NO.)

$15.99

$

Usually ships in 3-6 days

0

20

Honda 36162-ZM7-D21

SPRING, COMPRESSION COIL (CARBURETOR NO.)

$6.49

$

In Stock, only 1 left!

0

21

Honda 36165-ZL0-D31

MOTOR, THROTTLE CONTROL (CARBURETOR NO.)

$116.99

$

In Stock, only 2 left!

0

22

Honda 36168-Z39-C90

COVER, THROTTLE MOTOR

$1.49

$

In Stock, Qty 9

0

23

Honda 90003-ZL0-D30

SCREW-WASHER (3X8)

$2.99

$

In Stock, only 2 left!

0

24

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 5

0

25

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (9500(95003-05001-60M) (CARBURETOR NO.)

$31.99

$

Usually ships in 3-6 days

0

26

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

$39.99

$

Usually ships in 3-6 days

0

27

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

$39.99

$

Usually ships in 3-6 days

0

28

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

$39.99

$

Usually ships in 3-6 days

0

29

Honda 99101-ZG0-0520

SEE PART DETAILS - PRI; JET, MAIN (#52) Use from Engine SN BF12A B.

Note: (Optional)

$11.99

$

In Stock, only 1 left!

0

29

Honda 99101-ZG0-0550

SEE PART DETAILS - PRI; JET, MAIN (#55) Use from Engine SN BF22B D.

Note: (Optional)

$11.99

$

In Stock, only 3 left!

0

29

Honda 99101-ZG0-0580

JET, MAIN (#58) Use from Engine SN BF22B D.

$9.99

$

In Stock, Qty 8

0

30

Honda 99204-ZE2-0350

JET SET, PILOT (#35)

$15.99

$

Usually ships in 3-6 days

0
