EU2000i AC (EAAJ) - Honda Generator, Made in Japan (SN: EAAJ-1170001 - EAAJ-9999999) ROTOR@STATOR Parts Diagram

Generator, Made in Japan

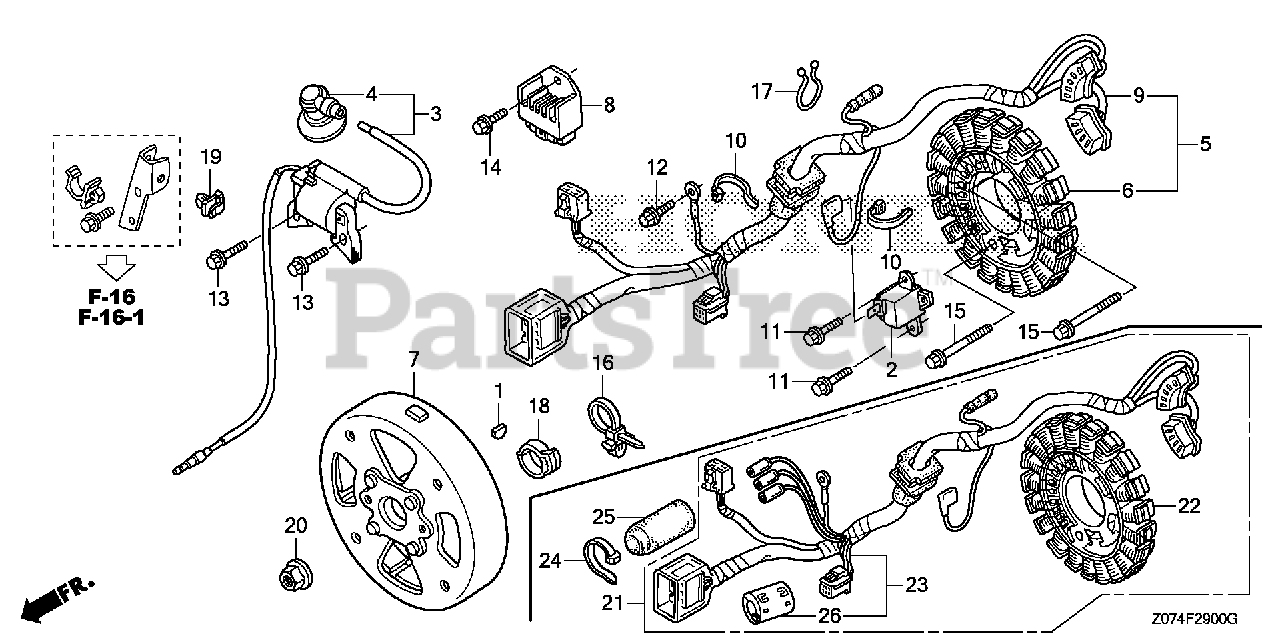

ROTOR@STATOR Parts Diagram

  • Title

1

Honda 13331-ZM7-000

KEY, SPECIAL

$4.99

$

In Stock, only 2 left!

0

2

Honda 30300-Z07-003

GENERATOR, PULSE

$43.99

$

In Stock, only 2 left!

0

3

Honda 30500-Z07-023

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$64.99

$

In Stock, only 2 left!

0

4

Honda 30700-ZT3-C02

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

$19.99

$

Usually ships in 3-6 days

0

5

Honda 31120-Z07-C31

STATOR ASSY.

$345.99

$

Usually ships in 3-6 days

0

6

Honda 31125-Z07-C31

STATOR

$212.99

$

Usually ships in 3-6 days

0

7

Honda 31130-Z07-C01

ROTOR

$247.99

$

Usually ships in 3-6 days

0

8

Honda 31710-ZS9-A02

SEE PART DETAILS - PRI; RECTIFIER ASSY.

$27.99

$

In Stock, only 1 left!

0

9

Honda 32158-Z07-C31

WIRE HARNESS ASSY., GENERATOR

$308.99

$

Usually ships in 3-6 days

0

10

Honda 83645-GG0-000

BAND, NYLON

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90012-ZM3-U30

BOLT, FLANGE (5X14) (CT200)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90029-888-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 0747733).

$3.49

$

In Stock, only 4 left!

0

15

Honda 90101-Z07-000

BOLT, FLANGE (5X32) (CT200)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90676-SA8-003

BAND, WIRE HARNESS (150MM) (Honda Code 1352103). (BLUE)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 90683-GS9-670

BAND, TUBE

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90683-KJ2-003

CLIP, WIRE HARNESS

$5.49

$

Usually ships in 3-6 days

0

19

Honda 90683-SB3-003

CLIP, WIRE HARNESS

$9.49

$

Usually ships in 3-6 days

0

20

Honda 94050-12080

NUT, FLANGE (12MM)

$3.49

$

In Stock, Qty 9

0
