EU2200i T AN1 (EAMT) - Honda Generator, Made in Thailand (SN: EAMT-1000001 - EAMT-9999999) CONTROL PANEL (7) Parts Diagram

Generator, Made in Thailand

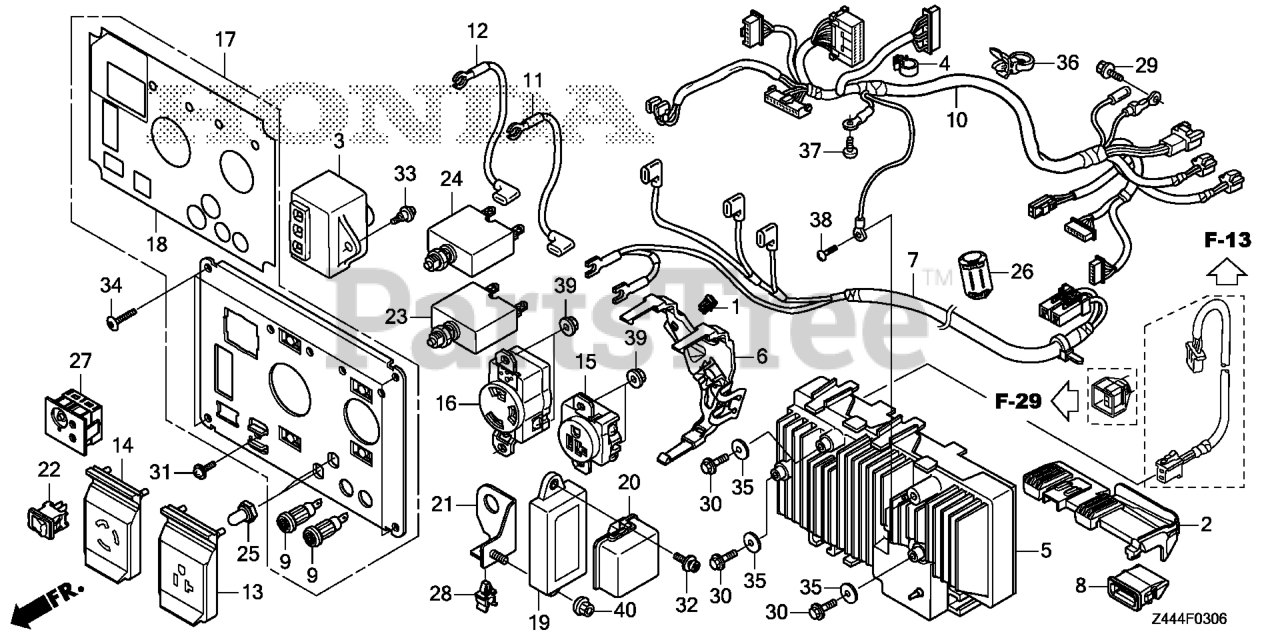

CONTROL PANEL (7) Parts Diagram

  • Title

1

Honda 16731-MEN-A71

CLIP, TUBE

$2.99

$

Usually ships in 3-6 days

0

2

Honda 17533-Z44-A30

RUBBER B, TANK MOUNTING

$4.99

$

Usually ships in 3-6 days

0

3

Honda 30400-Z44-A01

SPARK UNIT

$58.99

$

In Stock, only 1 left!

0

4

Honda 30706-V20-821

CLIP, HARNESS

$2.99

$

Usually ships in 3-6 days

0

5

Honda 31310-Z44-F31

INVERTER UNIT

$402.99

$

Usually ships in 3-6 days

0

6

Honda 31314-Z44-A30

BRACKET, INVERTER HARNESS

$1.99

$

Usually ships in 3-6 days

0

7

Honda 32105-Z44-G30

SUB-WIRE HARNESS ASSY.

$45.99

$

Usually ships in 3-6 days

0

8

Honda 32137-Z44-A30

COVER, CONNECTOR

$1.49

$

Usually ships in 3-6 days

0

9

Honda 32139-Z07-C00

SOCKET, COMPOSITE

$29.99

$

Usually ships in 3-6 days

0

10

Honda 32150-Z44-F31

WIRE HARNESS ASSY., CONTROL

$83.99

$

Usually ships in 3-6 days

0

11

Honda 32221-Z07-C30

WIRE, TERMINAL

$5.99

$

Usually ships in 3-6 days

0

12

Honda 32221-Z44-G30

WIRE, TERMINAL

$21.99

$

Usually ships in 3-6 days

0

13

Honda 32321-Z44-G30

COVER, RECEPTACLE (20A-125V)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 32321-ZS9-W30

COVER, RECEPTACLE (30A-125V)

$19.99

$

Usually ships in 3-6 days

0

15

Honda 32330-Z07-R22

SEE PART DETAILS - PRI; RECEPTACLE (20A/125V)

$70.99

$

Usually ships in 3-6 days

0

16

Honda 32332-ZB4-630

SEE PART DETAILS - SUP; RECEPTACLE (30A/125V)

$46.99

$

In Stock, only 1 left!

0

17

Honda 32345-Z44-G30

PANEL, CONTROL

$69.99

$

Usually ships in 3-6 days

0

18

Honda 32366-Z44-G30

MARK, CONTROL PANEL

$20.99

$

Usually ships in 3-6 days

0

19

Honda 35610-Z44-PA0

SENSING UNIT (CO)

$225.99

$

Usually ships in 3-6 days

0

20

Honda 35611-Z44-F30

COVER, SENSING UNIT PROOF (CO)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 35615-Z44-F30

BRACKET, SENSOR UNIT (CO)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

$24.99

$

In Stock, only 2 left!

0

23

Honda 38240-Z07-A31

PROTECTOR, CIRCUIT (20A) (WHITE)(TYCO)

$38.99

$

Usually ships in 3-6 days

0

23

Honda 38240-Z07-T20

PROTECTOR, CIRCUIT (20A) (BLACK)(JOEMEX)

$94.99

$

Usually ships in 3-6 days

0

24

Honda 38241-Z39-D40

PROTECTOR, CIRCUIT (30A) (BLACK)

$27.99

$

Usually ships in 3-6 days

0

24

Honda 38241-Z39-840

PROTECTOR, CIRCUIT (30A) (WHITE)

$

$

Currently unavailable

25

Honda 38242-Z25-A62

COVER, CIRCUIT PROTECTOR

$18.99

$

Usually ships in 3-6 days

0

26

Honda 38398-Z25-A60

FILTER, SUB NOISE (AC)

$22.99

$

Usually ships in 3-6 days

0

27

Honda 38530-ZS9-W32

LED ASSY., INDICATER

$34.99

$

Usually ships in 3-6 days

0

28

Honda 50304-Z11-003

CLIP, TUBE

$3.49

$

Usually ships in 3-6 days

0

29

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

30

Honda 90101-P4V-010

BOLT, FLANGE (5X12)

$3.49

$

In Stock, only 2 left!

0

31

Honda 90102-899-003

SCREW, PAN (5X12) (GROUND CABLE)

$3.99

$

Usually ships in 3-6 days

0

32

Honda 90107-ZS9-W30

BOLT-WASHER (5X15) (TORX)

$3.99

$

Usually ships in 3-6 days

0

33

Honda 90108-MN0-000

SCREW, PAN (5X13)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 90133-Z44-F30

SCREW, TAPPING (5X16) (TORX)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 90581-310-000

WASHER, PLAIN (20MM)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 90676-692-000

BAND (100MM) (BLACK)

$9.49

$

Usually ships in 3-6 days

0

37

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 93500-05010-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 10

0

40

Honda 94050-05080

NUT, FLANGE (5MM) (Honda Code 0612671).

$0.99

$

In Stock, Qty 10

0
