EU3000i AN (EAVJ) - Honda Generator, Made in Japan (SN: EAVJ-1000001 - EAVJ-9999999) MAIN COVER Parts Diagram

Generator, Made in Japan

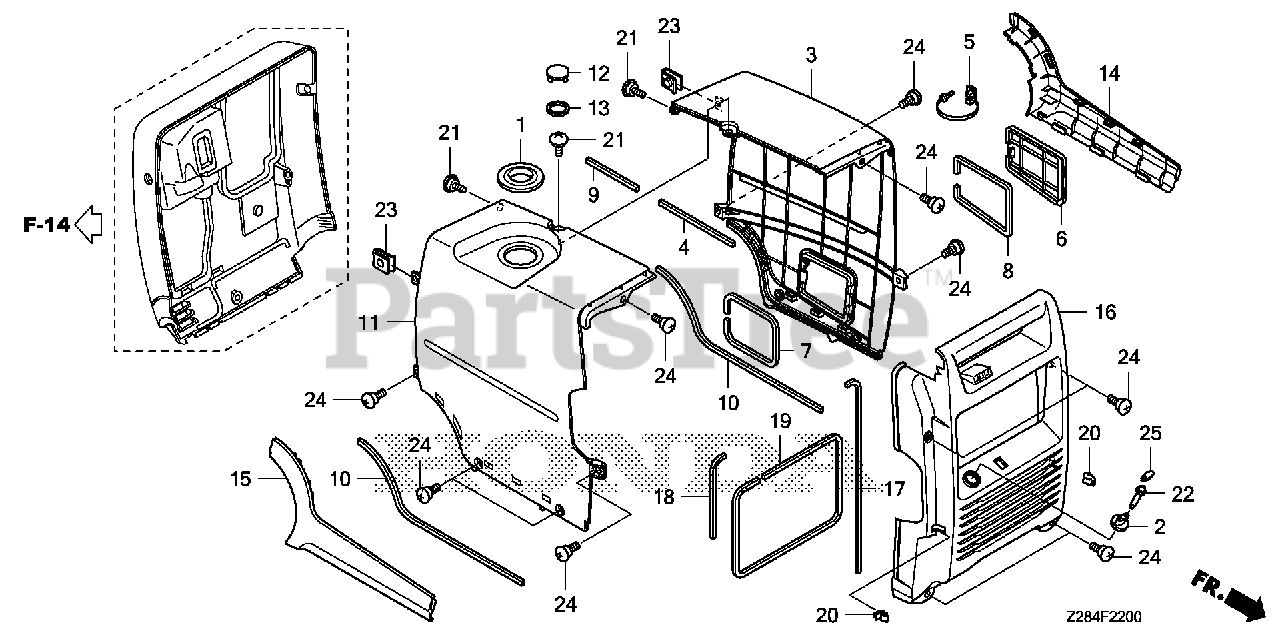

MAIN COVER Parts Diagram

  • Title

1

Honda 17514-Z28-000

SEAL, FUEL FILLER NECK

$12.99

$

Usually ships in 3-6 days

0

2

Honda 35123-Z28-000

KNOB, ENGINE SWITCH

$11.99

$

Usually ships in 3-6 days

0

3

Honda 63211-Z28-010ZA

COVER, R. SIDE *R280* (POWER RED)

$138.99

$

Usually ships in 3-6 days

0

4

Honda 63212-Z28-000

SEAL A, SIDE COVER (UPPER)

$2.99

$

Usually ships in 3-6 days

0

5

Honda 63213-Z28-000

KNOB, OIL MAINTENANCE COVER

$9.49

$

Usually ships in 3-6 days

0

6

Honda 63215-Z28-020ZA

COVER, OIL MAINTENANCE *R280* (POWER RED)

$13.99

$

Usually ships in 3-6 days

0

7

Honda 63216-Z28-010

SEAL, R. SIDE COVER

$3.99

$

Usually ships in 3-6 days

0

8

Honda 63217-Z28-000

OIL SEAL, MAINTENANCE COVER

$3.99

$

Usually ships in 3-6 days

0

9

Honda 63218-Z28-000

SEAL B, SIDE COVER (UPPER)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 63219-Z28-000

SEAL, SIDE COVER (LOWER)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 63220-Z28-020ZA

SEE PART DETAILS - SUP; COVER, L. SIDE *R280* (POWER RED)
(Superseded to 63220-Z28-030ZA)

Note: Use up to Frame SN 1015730.

$175.99

$

Usually ships in 3-6 days

0

11

Honda 63220-Z28-030ZA

SEE PART DETAILS - PRI; COVER, L. SIDE *R280* (POWER RED)

$175.99

$

Usually ships in 3-6 days

0

12

Honda 63227-Z28-010ZA

CAP, SIDE COVER *R280* (POWER RED)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 63229-Z28-000

SEAL, SIDE COVER CAP

$3.49

$

Usually ships in 3-6 days

0

14

Honda 63274-Z28-010ZA

PLATE, R. SIDE (LOWER) *NH314* (CONDUCT GRAY)

$24.99

$

Usually ships in 3-6 days

0

15

Honda 63279-Z28-010ZA

PLATE, L. SIDE (LOWER) *NH314* (CONDUCT GRAY)

$24.99

$

Usually ships in 3-6 days

0

16

Honda 63510-Z28-010ZA

COVER, FR. *NH314* (CONDUCT GRAY)

$168.99

$

Usually ships in 3-6 days

0

17

Honda 63516-Z28-000

SEAL A, FR. COVER

$3.99

$

Usually ships in 3-6 days

0

18

Honda 63517-Z28-000

SEAL B, FR. COVER

$2.99

$

Usually ships in 3-6 days

0

19

Honda 63518-Z28-000

SEAL C, FR. COVER

$4.99

$

Usually ships in 3-6 days

0

20

Honda 82174-Z28-000

STOPPER, HANDLE

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90107-Z28-000

SCREW, SPECIAL (6MM)

$4.49

$

In Stock, only 1 left!

0

22

Honda 90116-Z28-000

SCREW, KNOB (5X27.5)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90320-747-000

NUT, SPRING (6MM)

$3.49

$

In Stock, only 2 left!

0

24

Honda 90380-GM9-740

SCREW, SPECIAL (6X15)

$2.49

$

In Stock, Qty 20+

0

25

Honda 90852-Z28-000

CAP, KNOB

$4.99

$

Usually ships in 3-6 days

0
